4-2 Drivers Installation
Before the installation, make sure the system is connected to the Internet.

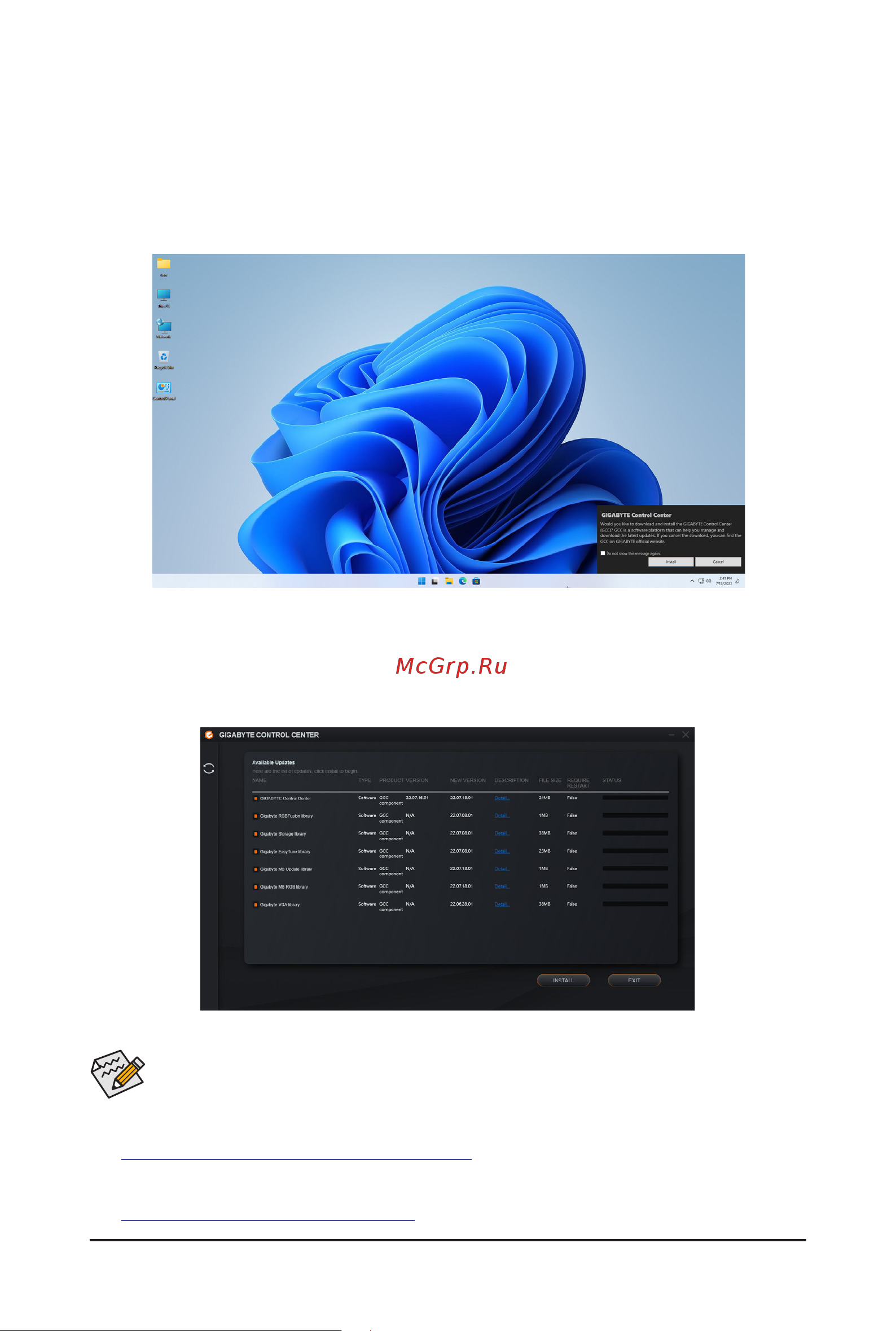

After you install the operating system, a dialog box will appear on the bottom-right corner of the desktop asking
if you want to download and install the drivers and GIGABYTE applications via GIGABYTE Control Center
(GCC). Click Install to proceed with the installation. (In BIOS Setup, make sure Settings\Gigabyte Utilities
DownloaderConguration\GigabyteUtilitiesDownloader is set to Enabled.)
When the End User License Agreement dialog box appears, press <Accept> to install GIGABYTE Control Center (GCC).
On the GIGABYTE CONTROL CENTER screen, select the drivers and applications you want to install and
click Install.
& Please visit GIGABYTE's website for more software information.
https://www.gigabyte.com/WebPage/926/intel700-app.html
& Please visit GIGABYTE's website for more troubleshooting information.
https://www.gigabyte.com/WebPage/351/faq.html
