- 21 -
2-8 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
11 1954
14
2
15
9
20
21
4
1617
1
8
71812
10
10
10
13
3 7 86

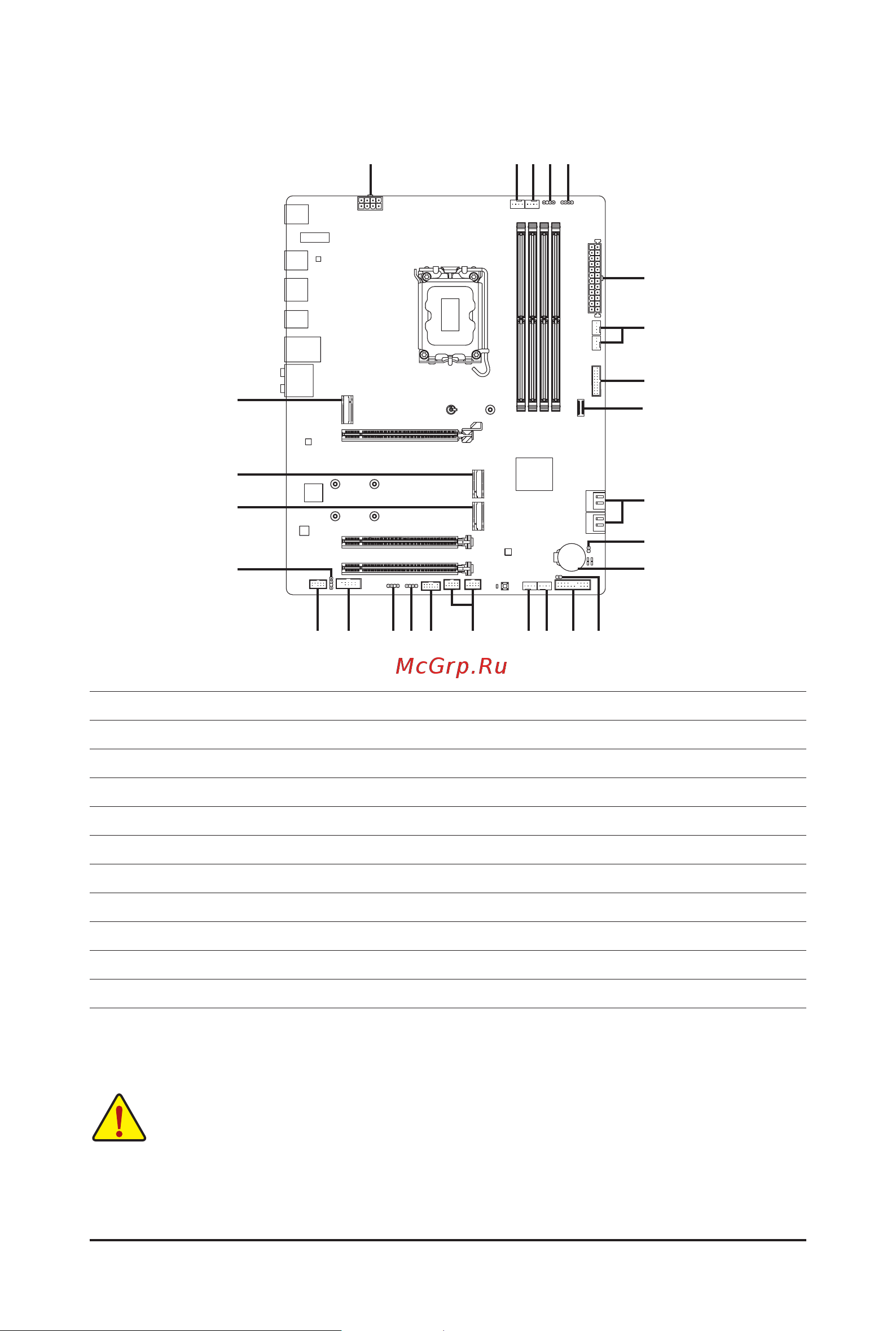

1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/2/3
5) SYS_FAN4_PUMP
6) CPU_OPT
7) D_LED1/D_LED2
8) LED_C1/LED_C2
9) SATA3 4/5/6/7
10) M2A_CPU/M2P_SB/M2M_SB
11) F_PANEL
12) F_AUDIO
13) SPDIF_O
14) F_U32C
15) F_U32
16) F_USB1/F_USB2
17) SPI_TPM
18) COM
19) CLR_CMOS
20) RST
21) BAT
