![Gigabyte B760 GAMING X Инструкция по эксплуатации онлайн [41/42] 690244](/img/pdf.png)
Gigabyte B760 GAMING X Инструкция по эксплуатации онлайн [41/42] 690244
Превью страниц
Страница 41 /
42
![Gigabyte B760 GAMING X Инструкция по эксплуатации онлайн [41/42] 690244](/views2/1918722/page41/bg29.png)
Содержание
198- User s manual
- B760 gaming x ax b760 gaming x b760 gaming x ax ddr4 b760 gaming x ddr4
- Rev 1101
- Copyright
- Disclaimer
- Identifying your motherboard revision
- Chapter 2 hardware installation
- Chapter 1 product introduction
- Chapter 4 installing the operating system and drivers 5
- Chapter 3 bios setup 3
- Table of contents
- Chapter 5 appendix 7
- B760 gaming x
- B760 gaming x ax
- 1 motherboard layout
- Chapter 1 product introduction
- J only for b760 gaming x ax
- B760 gaming x ddr4
- B760 gaming x ax ddr4
- L only for b760 gaming x ax ddr4
- 2 box contents
- Chapter 2 hardware installation
- 1 installation precautions
- 2 product specifications
- 2 productspecifications
- 3 installing the cpu and cpu cooler
- A note the cpu orientation
- B installing the cpu
- Follow the steps below to correctly install the cpu into the motherboard cpu socket
- Do not force to engage the cpu socket locking lever when the cpu is not installed correctly as this would damage the cpu and cpu socket
- C installing the cpu cooler
- Be sure to install the cpu cooler after installing the cpu actual installation process may differ depending the cpu cooler to be used refer to the user s manual for your cpu cooler
- 4 installing the memory
- Dualchannelmemoryconfiguration
- 5 installing an expansion card
- Displayport
- 6 back panel connectors
- Usb 3 gen 1 port
- Usb 2 1 port
- Port with usb 3 gen 1 support jk
- Sma antenna connectors 2t2r jl
- Hdmi port
- Usb type
- Rear speaker out black
- Please visit gigabyte s website for details on configuring the audio software
- Line in blue
- Audio jack configurations
- Side speaker out gray
- Note to enable the q flash plus function please navigate to the unique features page of gigabyte s website for more information
- Mic in pink
- The usb 3 gen 2 port supports the usb 3 gen 2 specification and is compatible to the usb 3 gen 1 and usb 2 specification use this port for usb devices
- The gigabit ethernet lan port provides internet connection at up to 2 gbps data rate the following describes the states of the lan port leds
- Rj 45 lan port
- You can change the functionality of an audio jack using the audio software
- Use this audio jack to connect side speakers
- Make sure to insert the usb flash drive into this port first
- Use this audio jack to connect rear speakers
- Line out green
- Use this audio jack to connect center subwoofer speakers
- Usb 3 gen 2 type a port red
- Center subwoofer speaker out orange
- Usb 2 1 port q flash plus port
- The usb port supports the usb 2 1 specification use this port for usb devices before using q flash plus
- The mic in jack
- The line out jack
- The line in jack use this audio jack for line in devices such as an optical drive walkman etc
- 7 onboard buttons and leds
- Qflash_plus q flash plus button
- Quick button
- Status leds
- The status leds show whether the cpu memory graphics card and operating system are working properly after system power on if the cpu dram vga led is on that means the corresponding device is not working normally if the boot led is on that means you haven t entered the operating system yet
- 8 internal connectors
- 2 atx_12v_2x4 atx 2x4 12v power connector and 2x12 main power connector
- With the use of the power connector the power supply can supply enough stable power to all the components on the motherboard before connecting the power connector first make sure the power supply is turned off and all devices are properly installed the power connector possesses a foolproof design connect the power supply cable to the power connector in the correct orientation
- To meet expansion requirements it is recommended that a power supply that can withstand high power consumption be used 500w or greater if a power supply is used that does not provide the required power the result can lead to an unstable or unbootable system
- The 12v power connector mainly supplies power to the cpu if the 12v power connector is not connected the 12v power connector mainly supplies power to the cpu if the 12v power connector is not connected the computer will not start
- 4 cpu_fan sys_fan1 2 3 fan headers
- These fan headers are not configuration jumper blocks do not place a jumper cap on the headers
- The fan pump header is 4 pin and possesses a foolproof insertion design most fan headers possess a foolproof insertion design when connecting a fan cable be sure to connect it in the correct orientation the black connector wire is the ground wire the speed control function requires the use of a fan with fan speed control design for optimum heat dissipation it is recommended that a system fan be installed inside the chassis the header also provides speed control for a water cooling pump please navigate to the bios setup page of gigabyte s website and search for smart fan 6 for more information
- Sys_fan4_pump system fan water cooling pump header
- Overheating overheating may result in damage to the cpu or the system may hang
- Be sure to connect fan cables to the fan headers to prevent your cpu and system from
- All fan headers on this motherboard are 4 pin most fan headers possess a foolproof insertion design when connecting a fan cable be sure to connect it in the correct orientation the black connector wire is the ground wire the speed control function requires the use of a fan with fan speed control design for optimum heat dissipation it is recommended that a system fan be installed inside the chassis
- Connect your addressable led strip to the header the power pin marked with a triangle on the plug of the led strip must be connected to pin 1 of the addressable led strip header incorrect connection may lead to the damage of the led strip
- D_led1 d_led2 addressable led strip headers
- Connector cpu_fan sys_fan1 2 3 sys_fan4_pump cpu_opt
- Pwm speed control
- Pin no definition
- Maximum current 2a 2a 2a 2a
- Cpu_opt cpu fan water cooling pump header
- Voltage speed control
- The headers can be used to connect a standard 5050 addressable led strip with maximum power rating of 5a 5v and maximum number of 1000 leds
- The fan pump header is 4 pin and possesses a foolproof insertion design most fan headers possess a foolproof insertion design when connecting a fan cable be sure to connect it in the correct orientation the black connector wire is the ground wire the speed control function requires the use of a fan with fan speed control design
- No pin
- Maximum power 24w 24w 24w 24w
- Led_c1 led_c2 rgb led strip headers
- Sata3 4 5 6 7 sata 6gb s connectors
- Chipset supports raid 0 raid 1 raid 5 and raid 10 please navigate to the configuring a raid set page of gigabyte s website for instructions on configuring a raid array
- To enable hot plugging for the sata ports please navigate to the bios setup page of gigabyte s website and search for sata configuration for more information
- The sata connectors conform to sata 6gb s standard and are compatible with sata 3gb s and sata 1 gb s standard each sata connector supports a single sata device the inte
- The headers can be used to connect a standard 5050 rgb led strip 12v g r b with maximum power rating of 2a 12v and maximum length of 2m
- For how to turn on off the lights of the led strip please navigate to the unique features page of gigabyte s website
- Connect your rgb led strip to the header the power pin marked with a triangle on the plug of the led strip must be connected to pin 1 12v of this header incorrect connection may lead to the damage of the led strip
- Before installing the devices be sure to turn off the devices and your computer unplug the power cord from the power outlet to prevent damage to the devices
- M2a_cpu a a
- M2a_cpu m2p_sb m2m_sb m socket 3 connectors
- Install the m ssd https www gigabyte com webpage 920 m2 latchplus html remove the m ssd https www gigabyte com webpage 921 removem2 html
- Types of m ssds supported by each m connector
- The m connectors on the motherboard support only m pcie ssds
- Step 2 locate the proper mounting hole based on the length of your m ssd drive if needed move the standoff to the desired mounting hole insert the m ssd into the m connector at an angle step 3 press the m ssd down and then use the included screw to secure it in the connector remove the protective film from the bottom of the heatsink then replace the heatsink and secure it to the original hole
- Please visit gigabyte s website for details on using m ez latch plus
- M2p_sb a a
- M2m_sb a a
- M pcie x4 ssd m pcie x2 ssd m sata ssd
- If you want install an m ssd in the 110mm hole that already has a motherboard heatsink standoff be sure to remove the ez latch plus clip first and use the motherboard heatsink screw to secure the heatsink and ssd
- Follow the steps below to correctly install an m ssd in the m connector step 1 locate the m connector where you will install the m ssd use a screwdriver to unfasten the screw on the heatsink and then remove the heatsink only the m2a_cpu connector has the heatsink
- F_panel front panel header
- F_audio front panel audio header
- 5vdual
- This header supports s pdif digital output which allows you to connect a s pdif digital audio cable to output digital audio from your motherboard to the supported audio devices for information about connecting the digital audio cable carefully read the manual for your audio devices
- The front panel audio header supports high definition audio hd you may connect your chassis front panel audio module to this header make sure the wire assignments of the module connector match the pin assignments of the motherboard header incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it
- Spdifo
- Spdif_o s pdif out header
- Some chassis provide a front panel audio module that has separated connectors on each wire instead of a single plug for information about connecting the front panel audio module that has different wire assignments please contact the chassis manufacturer
- Sense_send
- Pin no definition
- No pin
- Mic detection
- Head phone r
- Head phone l
- Head phone detection
- F_u32 usb 3 gen 1 header
- Ssrx1 13 gnd
- Header with usb 3 gen 2 support
- The header conforms to usb 3 gen 1 and usb 2 specification and can provide two usb ports for purchasing the optional 3 front panel that provides two usb 3 gen 1 ports please contact the local dealer
- D1 19 vbus
- Sstx1 16 gnd
- D1 18 ssrx2
- Sstx1 15 sstx2
- Cc1 18 d
- Ssrx1 12 d2
- Sbu2 20 cc2
- Sbu1 19 d
- Rx1 16 rx2
- Rx1 15 rx2
- Pin no definition pin no definition
- Vbus 17 gnd
- Nc 20 no pin
- Vbus 11 vbus
- Vbus 11 d2
- Gnd 17 ssrx2
- Tx1 13 tx2
- Gnd 14 sstx2
- Tx1 12 tx2
- Gnd 14 gnd
- The header conforms to usb 3 gen 2 specification and can provide one usb port
- F_u32c usb type
- Power 3 v
- Data output
- Spi_tpm trusted platform module header
- Prior to installing the usb bracket be sure to turn off your computer and unplug the power cord from the power outlet to prevent damage to the usb bracket
- Power 5v
- Pin no definition
- No pin
- F_usb1 f_usb2 usb 2 1 headers
- Data input
- Chip select
- You may connect an spi tpm trusted platform module to this header
- Usb dy
- Usb dx
- The headers conform to usb 2 1 specification each usb header can provide two usb ports via an optional usb bracket for purchasing the optional usb bracket please contact the local dealer
- Clr_cmos clear cmos jumper
- The com header can provide one serial port via an optional com port cable for purchasing the optional com port cable please contact the local dealer
- Use this jumper to clear the bios configuration and reset the cmos values to factory defaults to clear the cmos values use a metal object like a screwdriver to touch the two pins for a few seconds
- The cmos values
- Manually configure the bios settings please navigate to the bios setup page of gigabyte s website for more information
- Com serial port header
- Always turn off your computer and unplug the power cord from the power outlet before clearing
- After system restart go to bios setup to load factory defaults select load optimized defaults or
- Rst reset jumper
- Bat battery
- Chapter 3 bios setup
- Function keys
- Startup screen
- 1 operating system installation
- Chapter 4 installing the operating system and drivers
- 2 drivers installation
- 1 configuringaraidset
- Raid levels
- Chapter 5 appendix
- Before you begin please prepare the following items
- 1 configuring a raid set
- United states of america federal communications commission statement
- Regulatory notices

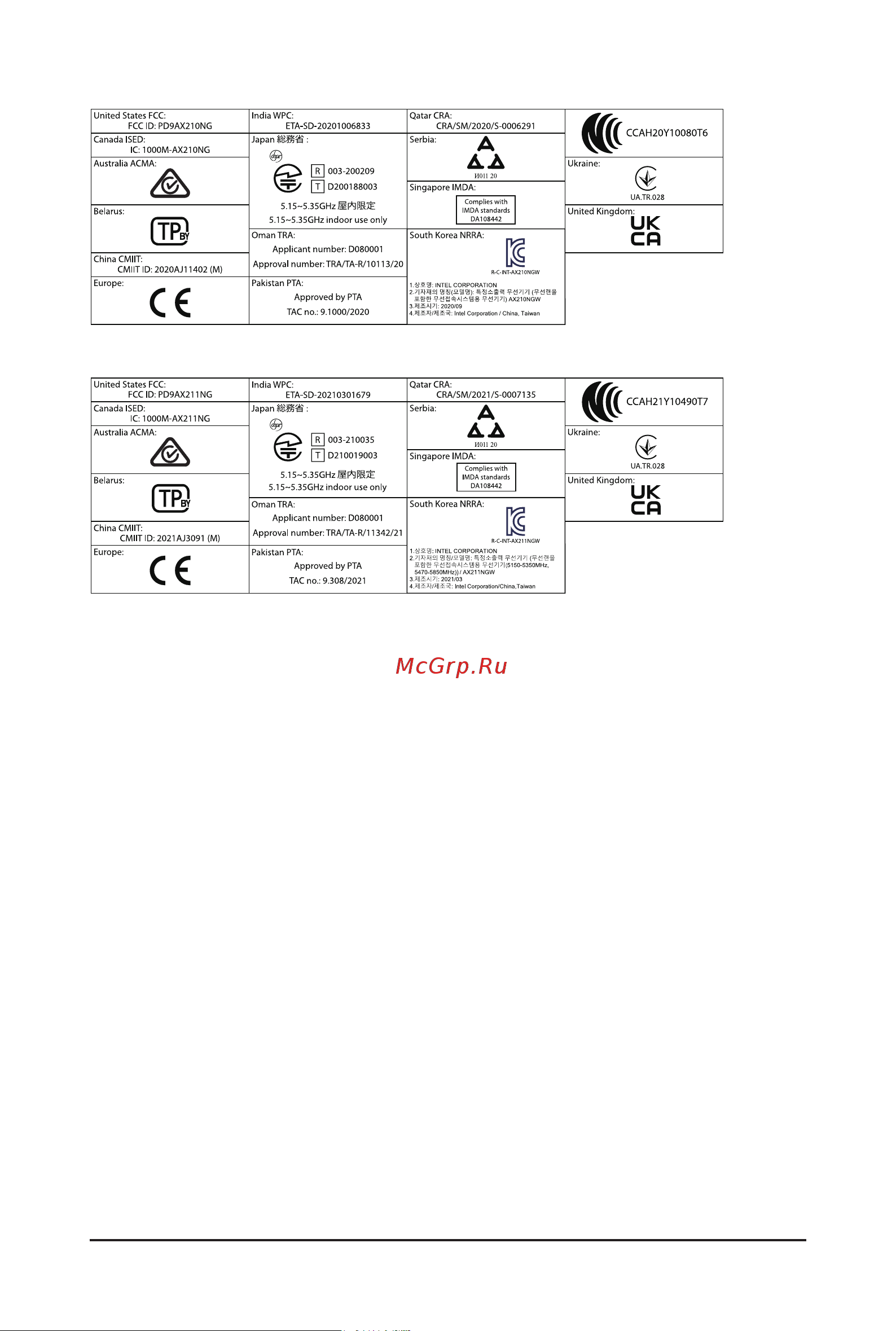

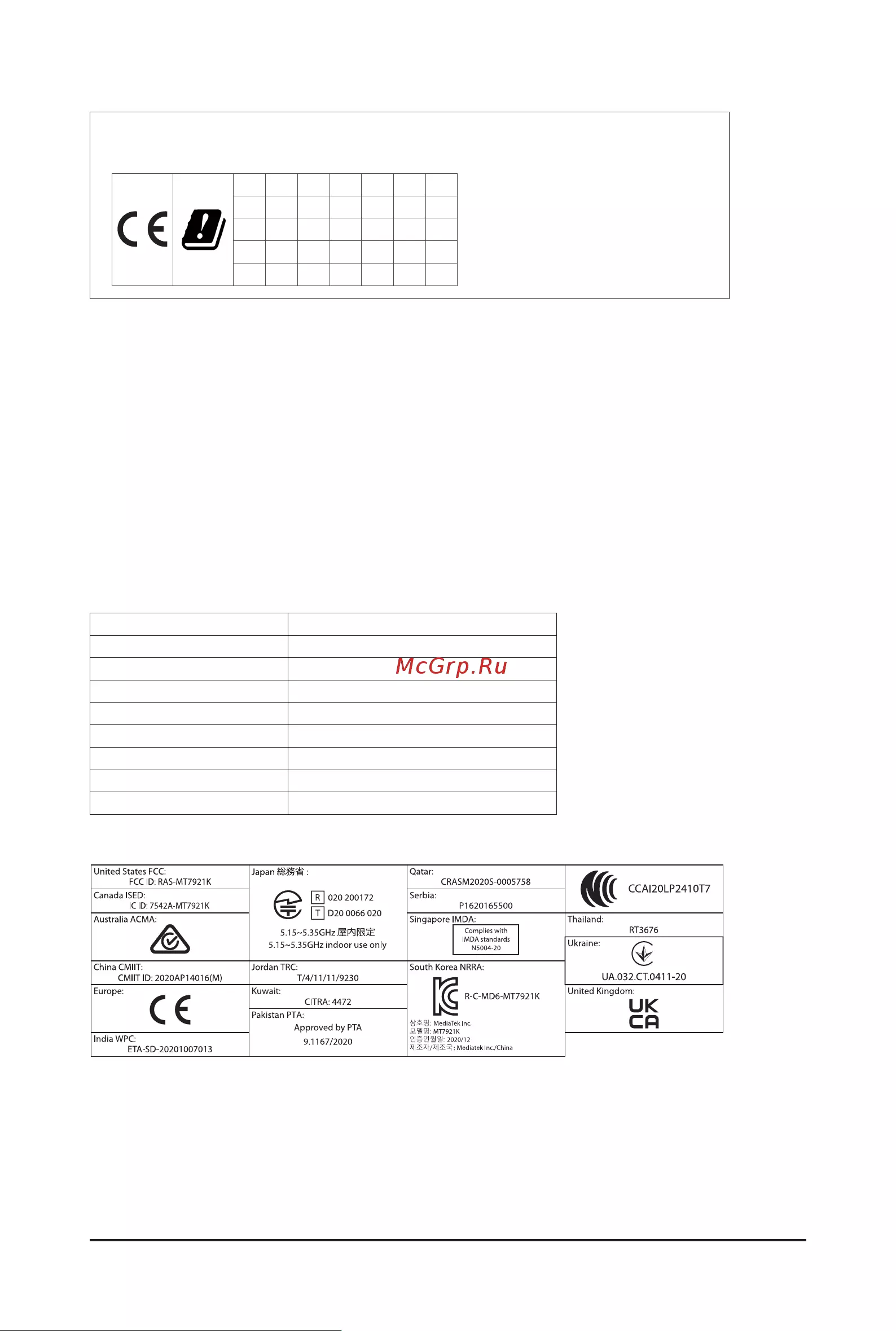

- Wireless module approvals
- To submit a technical or non technical sales marketing question please link to https esupport gigabyte com
- Contact us
- Gigabyte esupport
