- 9 -

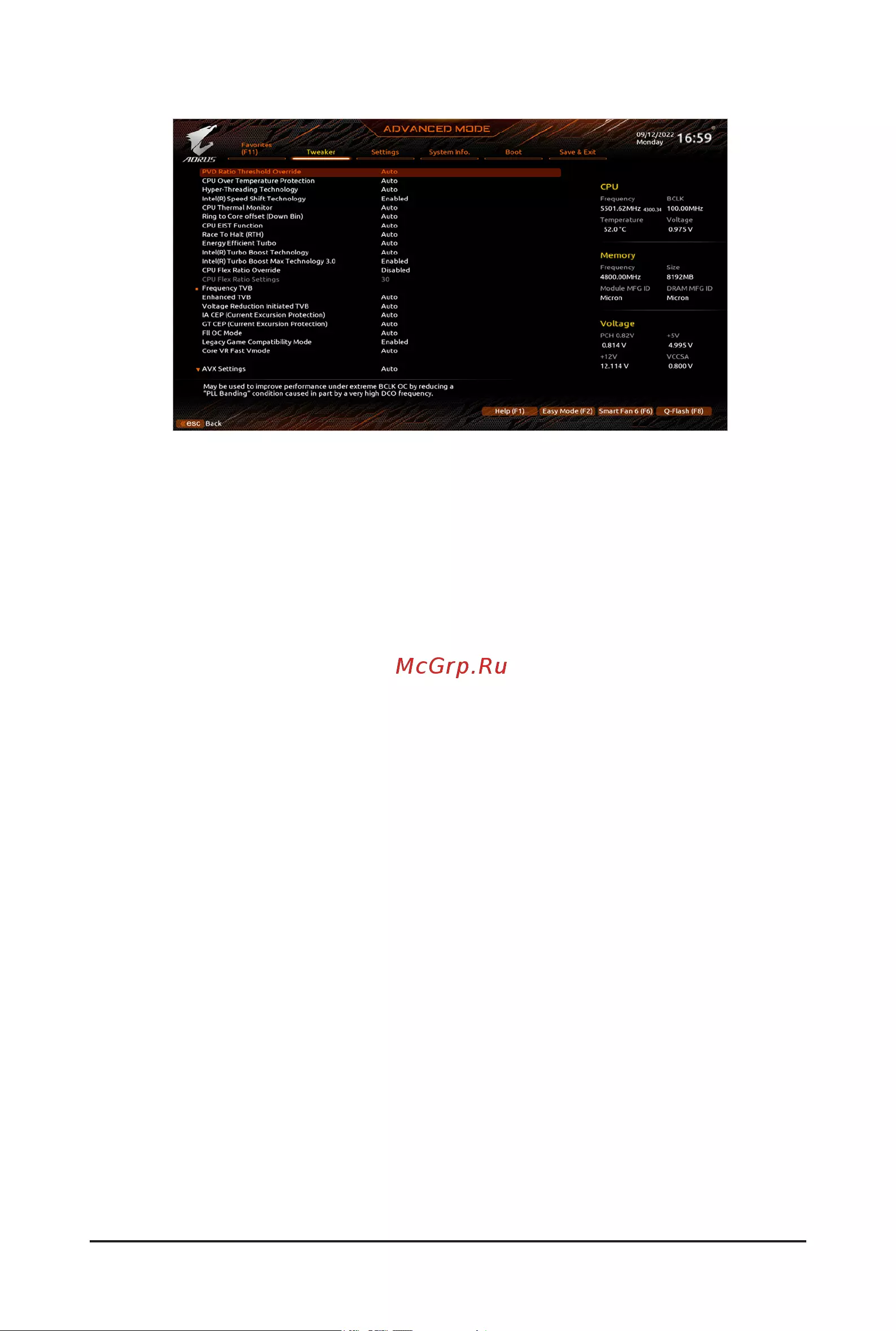

Tweaker
& CPU Upgrade
Allows you to set the CPU frequency. The nal result may vary depending on the CPU used. Options are:
Default, Gaming Prole, Advanced Prole.
& CPU Base Clock
Allows you to manually set the CPU base clock in 0.01 MHz increments.
Important: It is highly recommended that the CPU frequency be set in accordance with the CPU
specications.
& PCIe/DMI/PEG Clock Frequency
Allows you to manually set the PCIe/DMI/PEG clock frequency in 0.01MHz increments.
& Enhanced Multi-Core Performance
Allows you to determine whether to apply the highest Turbo ratio to all CPU cores.
& Performance CPU Clock Ratio
Allows you to alter the clock ratio for the installed Performance CPU. The adjustable range is dependent
on the CPU being installed.
& Efciency CPU Clock Ratio
Allows you to alter the clock ratio for the installed Efciency CPU. The adjustable range is dependent on
the CPU being installed.
& Max Ring Ratio
Allows you to set the maximum CPU Uncore ratio. The adjustable range is dependent on the CPU being used.
& Min Ring Ratio
Allows you to set the minimum CPU Uncore ratio. The adjustable range is dependent on the CPU being used.
& IGP Ratio
Allows you to set the Graphics Ratio.
Whether the system will work stably with the overclock/overvoltage settings you made is dependent
on your overall system congurations. Incorrectly doing overclock/overvoltage may result in damage
to CPU, chipset, or memory and reduce the useful life of these components. This page is for advanced
users only and we recommend you not to alter the default settings to prevent system instability or
other unexpected results. (Inadequately altering the settings may result in system's failure to boot. If
this occurs, clear the CMOS values and reset the board to default values.)
Some of the BIOS settings are available only when the motherboard chipset and the CPU/memory
used support the feature. For more information about Intel
®
CPUs' unique features, please visit
Intel's website.
