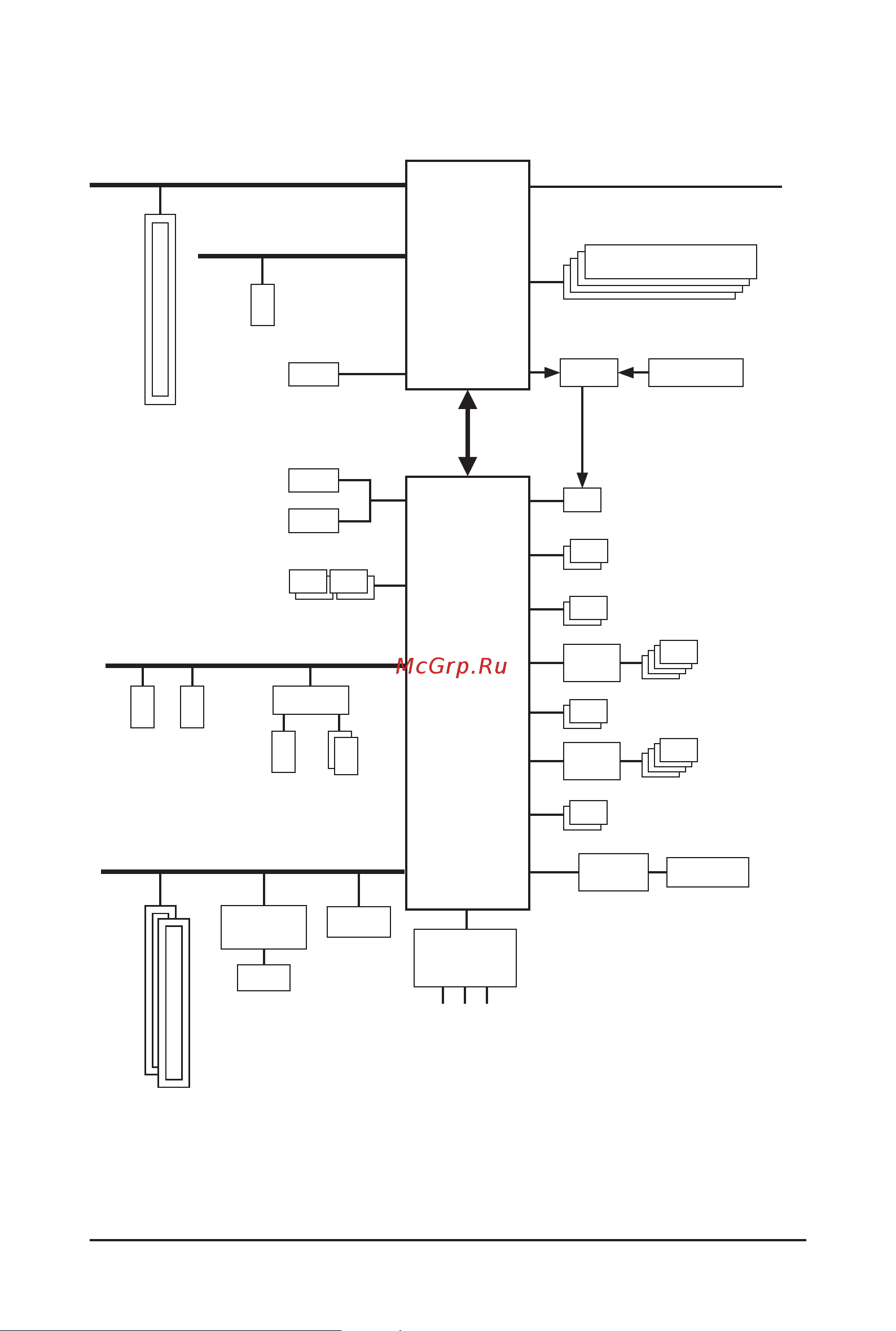

1-2 Motherboard Block Diagram
LGA1700 CPU
DMI 4.0
4 USB 2.0/1.1
4 USB 3.2 Gen 1
2 USB Type-C
®
,
with USB 3.2 Gen 2x2 support
2 USB 3.2 Gen 2 Type-A
2 USB 3.2 Gen 1
2 USB 2.0/1.1
Intel
®
Z690
USB 3.2
Gen 1 Hub
USB 2.0
Hub
PCI Express 5.0 Bus
PCI Express 4.0 Bus
1 PCI Express x16
1 M.2 Socket 3
(M2A_CPU)
x16
Line Out
Mic
S/PDIF Out
CODEC
SPI
Bus
PCI Express 3.0 Bus
x4
2 PCI Express x4
TPM
BIOS
eSPI
Bus
iTE
®
Super I/O
COM
DDI
1 USB Type-C
®
,
with USB 3.2 Gen 1 support
DisplayPort In
Switch
DDI
HDMI 1.4
LAN
RJ45
x1
Intel
®
2.5GbE LAN
x1
M.2 WIFI
4 SATA 6Gb/s
(SATA3 4~7)
1 M.2 Socket 3
(M2M_SB)
2 SATA 6Gb/s
(SATA3 2, 3)
PCI Express 4.0 Bus
2 M.2 Socket 3
(M2P_SB, M2Q_SB)
Switch
or
CPU CLK+/- (80~800 MT/s)
DDR5 4800/4000 MT/sj
DDR4 3200/3000/2933/2666/2400/2133 MT/sk
j Only for Z690 AERO G.
k Only for Z690 AERO G DDR4.
