Asus PRIME Z790-A WIFI [31/80] Chapter 1

PRIME Z790-A WIFI

1-19

Chapter 1

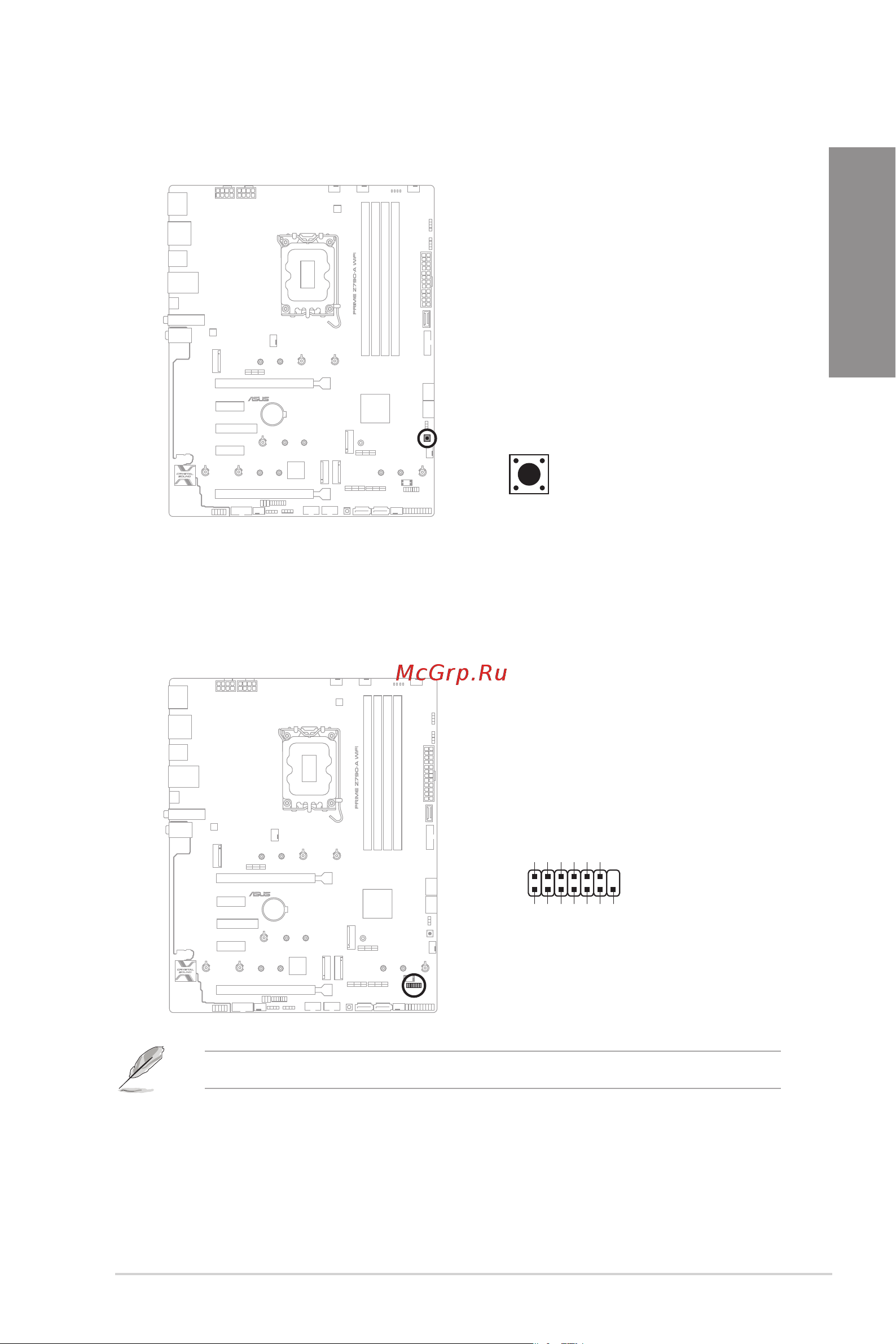

17. Power button

Press the Power button to power up the system, or put the system into sleep or soft-

off mode (depending on the operating system settings).

PWR_BUTTON

18. TPM header

The TPM header allows you to connect a TPM module, which securely stores keys,

digital certificates, passwords, and data. A TPM system also helps enhance network

security, protect digital identities, and ensures platform integrity.

TPM

PIN 1

VCCSPI

S_PLTRST#

F_SPI_PWR

F_SPI_CS0#_R

T_SPI_MISO

F_SPI_HOLD#_R

S_SPI_TPM_IRQ#

S_SPI_TPM_CS2#

TPM_DETECT_L

GND

T_SPI_CLK

T_SPI_MOSI

The TPM module is purchased separately.
