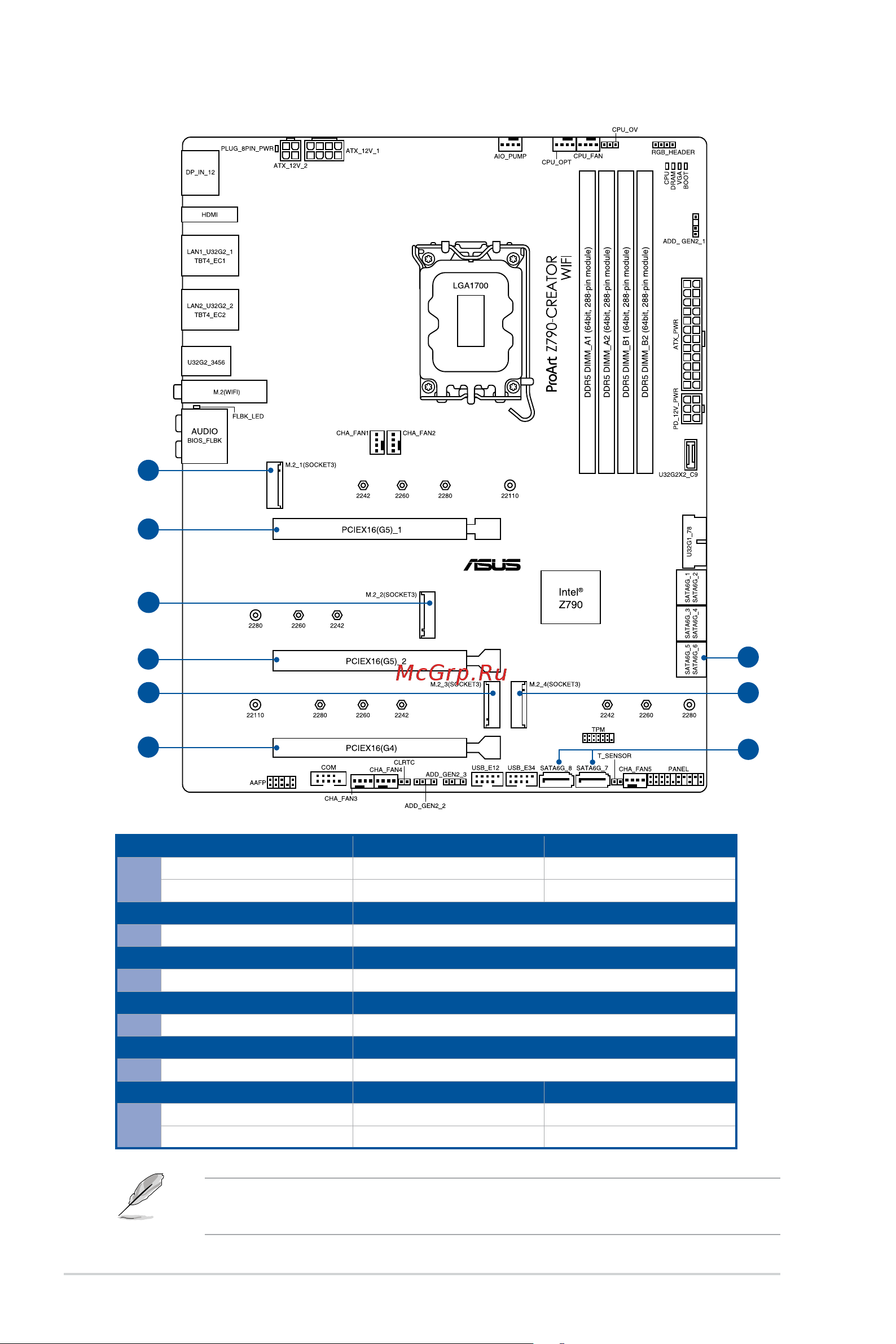

Connectors with shared bandwidth

Configuration 1 (Default) 2

PCIEX16(G5)_1 PCIe 5.0 x16 PCIe 5.0 x8

PCIEX16(G5)_2 - PCIe 5.0 x8

Configuration 1 (Default)

PCIEX16(G4) PCIe 4.0 x4

Configuration 1 (Default)

M.2_1 PCIe 4.0 x4

Configuration 1 (Default)

M.2_2 PCIe 4.0 x4

Configuration 1 (Default)

M.2_3 PCIe 4.0 x4

Configuration 1 (Default)

M.2_4 PCIe 4.0 x4 -

SATA6G_5~8 - V

SATA6G_5~8 will be suspended once either a SATA or NVMe device is detected at

M.2_4.
