Before you install the hob,make

sure that:

; The work surface is square and level, and

no structural members interfere with

space requirements.

; The work surface is made of a heat-

resistant material.

; If the hob is installed above an oven, the

oven has a built-in cooling fan.

; The installation will comply with all

clearance requirements and applicable

standards and regulations.

; A suitable isolating switch providing full disconnection from the mains power supply is

incorporated in the permanent wiring,mounted and positioned to comply with the local

wiring rules and regulations.

; The isolating switch must be of an approved type and provide a 3 mm air gap contact

separation in all poles (or in all active [phase] conductors if the local wiring rules allow for

this variation of the requirements).

; The isolating switch will be easily accessible to the customer with the hob installed.

; You consult local building authorities and by-laws if in doubt regarding installation.

; You use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall

surfaces surrounding the hob.

When you have installed the hob,make sure that

; The power supply cable is not accessible through cupboard doors or drawers.

; There is adequate flow of fresh air from outside the cabinetry to the base of the hob.

; If the hob is installed above a drawer or cupboard space,a thermal protection barrier is

installed below the base of the hob.

; The isolating switch is easily accessible by the customer.

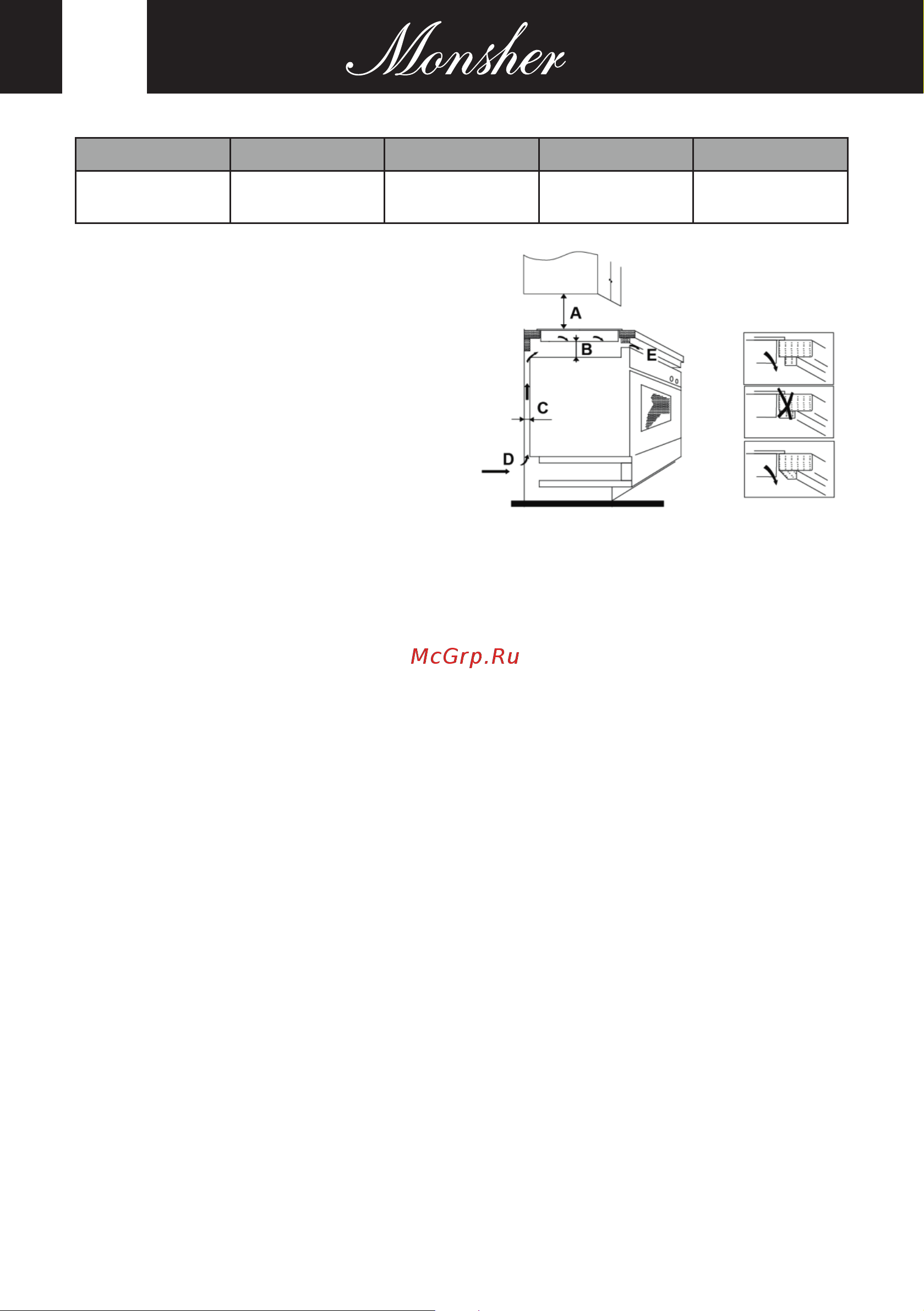

A(mm) B(mm) C(mm) D E

650 50 mini 20 mini

Air

intake

Air exit

5 мм
