Installation/Connection
4
Installation
General notes
• Choose the mounting location
where the unit will not interfere with
the normal driving function of the
driver.
• Before finally installing the unit,
connect the wiring and make sure that
the unit works properly.
• Consult with your nearest dealer
if installation requires the drilling of
holes or other modifications of the
vehicle.
• Install the unit where it does not
get in the driver’s way and cannot
injure the passenger if there is a
sudden stop, like an emergency stop.
• Avoid installing the unit where it
would be subject to high temperature,
such as from direct sunlight, or from
hot air, from the heater, or where
it would be subject to dust, dirt or
excessive vibration.

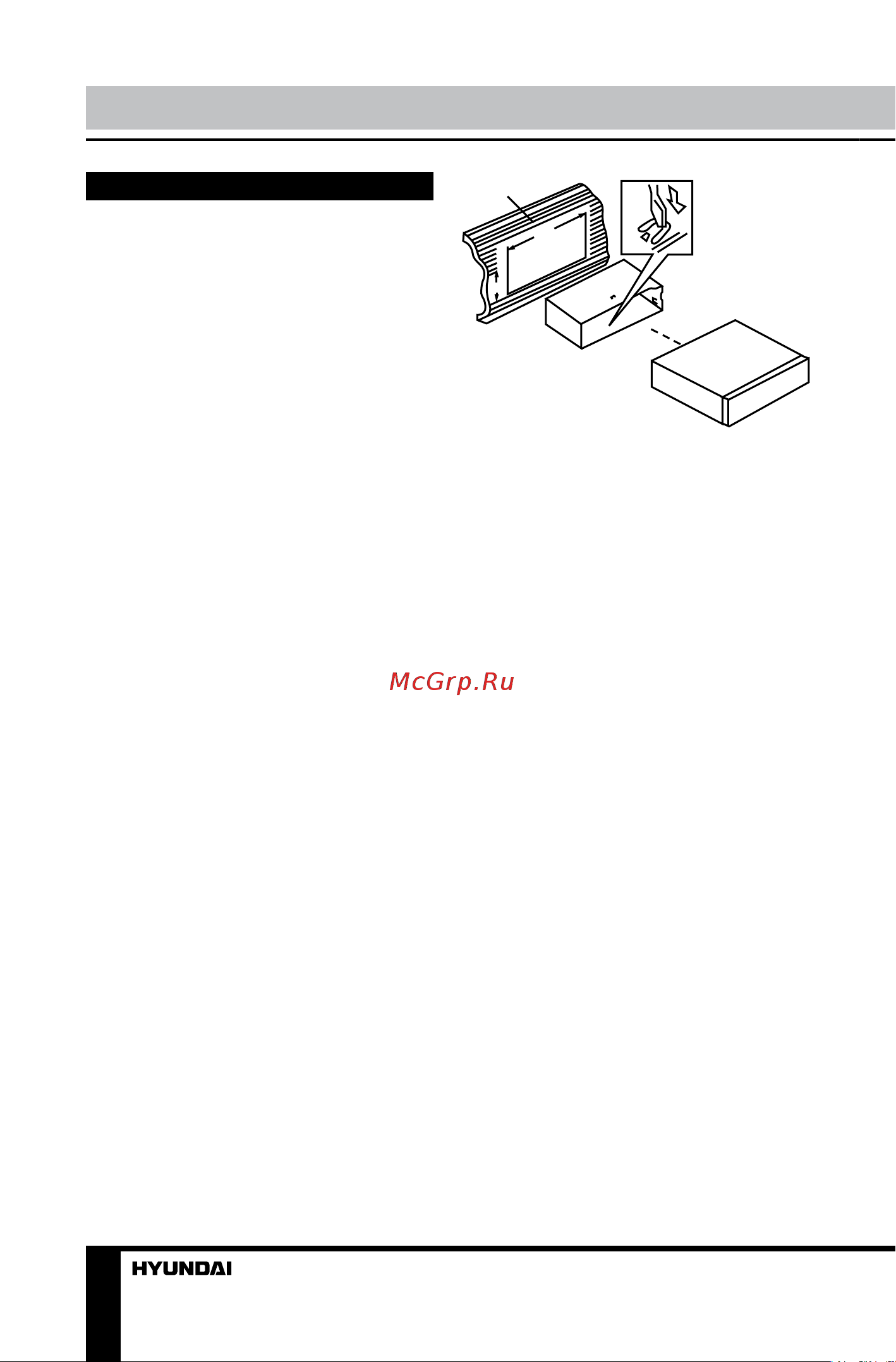

DIN front-mount (Method A)
1. Install the sleeve into the
dashboard; ensure it is installed with
the correct side and there are no
obstacles (wires, dashboard elements,
etc) for the unit installation.
2. After installing the sleeve into the
dashboard, bend tabs fitting to the
size of the dashboard to fix the sleeve
in place.
3. Make the necessary wire
connections. Ensure the connections
are correct.
4. Install the unit into the sleeve until
the side locks are fixed.
2
1
182
53
1. Dashboard
2. Sleeve tab to bend
Trim frame installation
To install the trim frame, press it
to the unit body and push it to fix it
in place. This should be done before
installing the front panel; otherwise you
are not able to install the trim frame.
DIN rear-mount (Method B)
For this method, use the screw
holes in the lateral sides of the unit.
Fix the unit with the help of the factory
radio mounting brackets.
1. Select a position in which the
screw holes of the brackets (3) are
aligned with the screw holes in the unit
body, and screw in two screws (2) in
each side.
2. Screw.
3. Factory radio mounting brackets.
4. Vehicle dashboard.
5. Lock (remove this part).
