HYUNDAI ELECTRONICS H-AP3-12H-UI005 [7/52] Control of portable air conditioner

Electric air conditioner

portable type

5. CONTROL OF PORTABLE AIR CONDITIONER

1. FUNC mode selection button (SET):

You can select three functions with this button: cooling, heating and dehumidication. POWER

button: pressing this button you can switch on or o the unit.

2. SLEEP button: aer pressing this button the fan sets to low speed.

Press this button to increase (during cooling) or decrease (during heating) the set tempera-

ture by 1°C in 30 min aer activation of this function. Temperature is increased (during cool-

ing) or decreased (during heating) by 1°C in another 30 min. In 7 hours, the air conditioner

will be automatically switched to the previous mode.

3. FAN button.Press this button to select low ( ), medium ( ), high ( ) speed. When the auto

mode is working the indicators don`t light. Upon selection of automatic rotation speed, the

rotation speed indicators are extinguished.

4. TEMP down button. In the cooling mode each press of this button lowers the set tempera-

ture. The set temperature ranges from 17°С to 30°С.

5. SET button. Press this button to select the mode of heating, dehumidication, cooling and

auto mode.

6. Timer button: ON TIMER: The ON timer is used to automatically switch on the unit upon

expiration of the set time.

– When the air conditioner is on, press the button to activate the Timer OFF. The indicator of

the Timer OFF will start glowing. Select the desired turn-o time by up and down buttons.

Press the Timer button again within ve seconds to activate setting of the Timer ON. The

indicator of the Timer ON will start glowing. Select the desired turn-on time by up and down

buttons.

- When the air conditioner is o, press the button to activate the Timer ON, press it again

within ve seconds to activate the Timer OFF.

- Press or hold the up or down button to select the desired time. From 0 to 10 hours time

changes in 0.5 hour increments, from 10 to 24 hours – in 1 hour increments.

- Aer ve seconds aer you nished setting the timer the display will show the set tempera-

ture again.

- Pressing the ON/OFF button or setting the timer time to 0.0 will cancel setting of the timer.

7. Swing button. Using this button you may turn on or out the swing of louvers

8. LED display. The appliance displays the set temperature and setting of the automatic timer.

In the drying/fan modes, the appliance displays the current indoor temperature.

9. TEMP up button. In the heating mode each press of this button raises the set temperature.

The set temperature ranges from 17°С to 30°С.

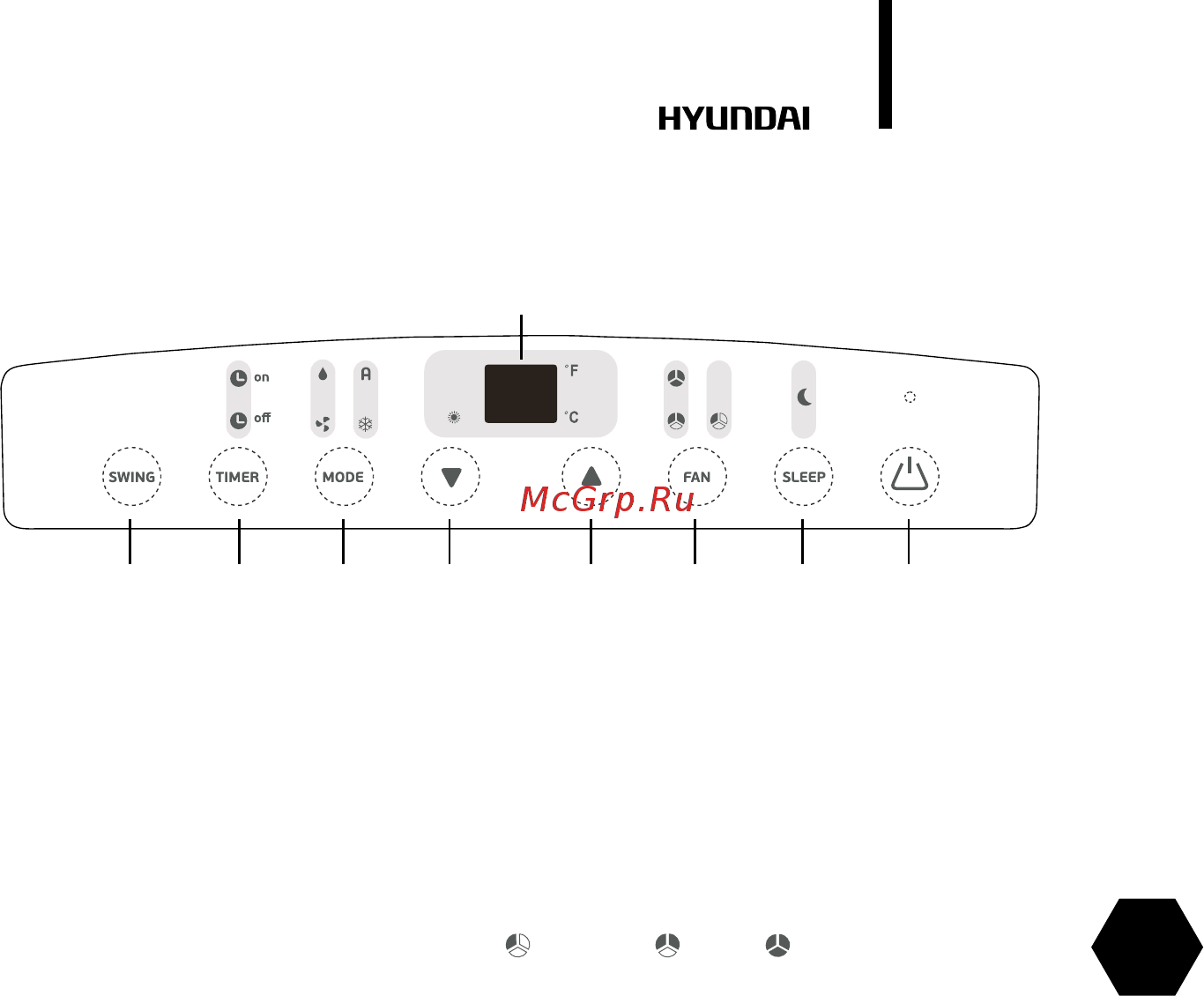

Fig. 5

7 6 5 4

9 3 2 1
