Control and indication panel of your conditioner may be visually different

from the shown layout view. However, its functions will remain the same.

6. APPLIANCE CONTROL

The conditioner is controlled from the control panel or from the wire control

panel.

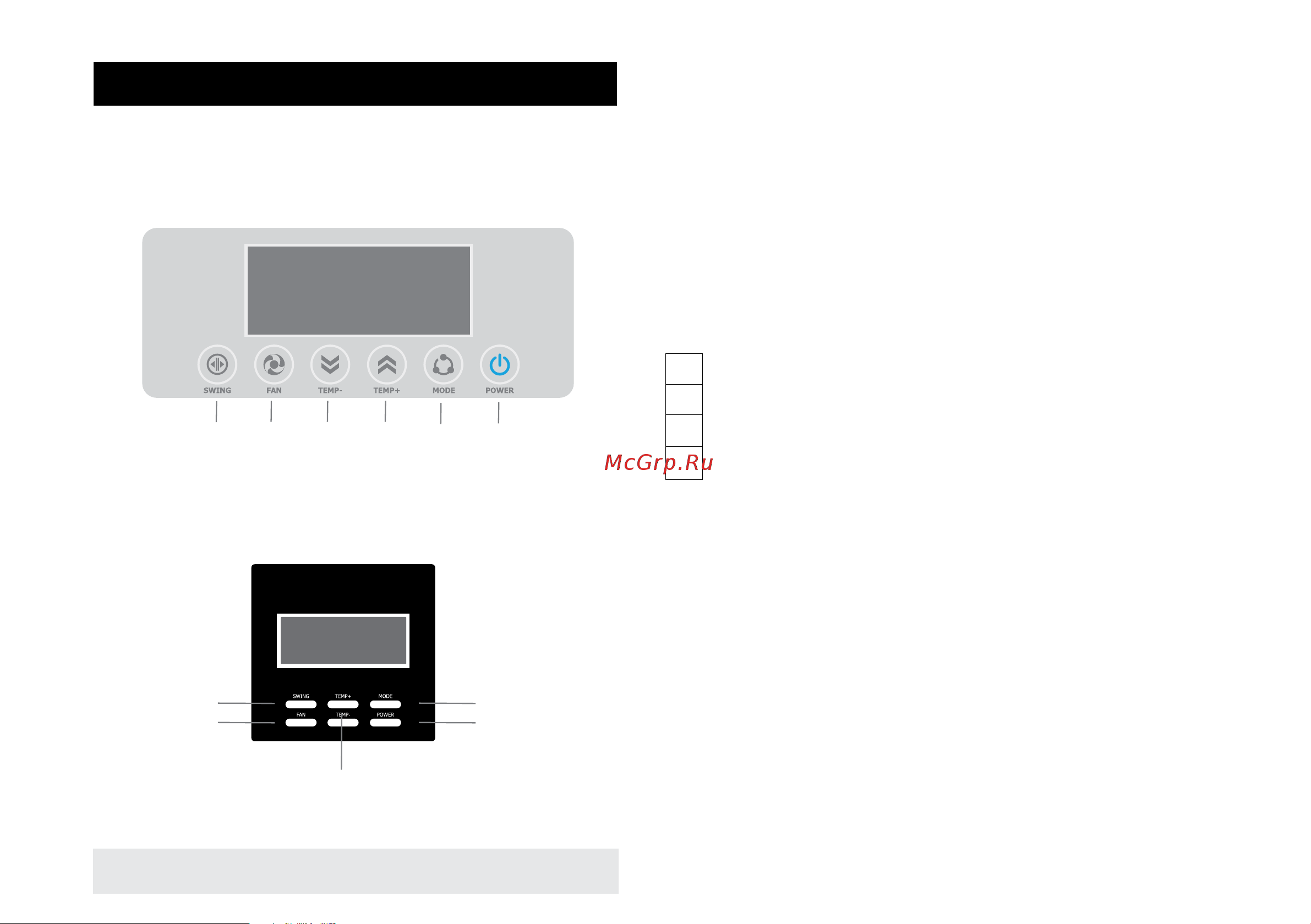

Description of control panel for AC TIM 24LC FS1

Fig. 2

Fig. 3

3,4

4 5

Description of control panel forAC TIM 48LC FS1

1. SWING button. With the use of this button you may regulate position of

air-outlet gills and direct processed air up and down.

2. FAN SPEED button. With the use of this button you may select the

rotation speed of the internal unit fan: Auto, High, Middle, Low,

In the Auto mode the fan speed changes automatically.

In the drying mode the fan speed remains Low.

3,4. TEMP (increase/decrease) buttons. With the use of these buttons you

may set the needed air temperature in the room.

5. MODE button. With the use of this button you may select the needed

operating mode: Cooling, Drying, Fan, Heating.

6. ON/OFF (Power) button. With the use of this button you may turn the

conditioner on and off.

- cooling mode

- drying mode

- fan mode

- heating mode
