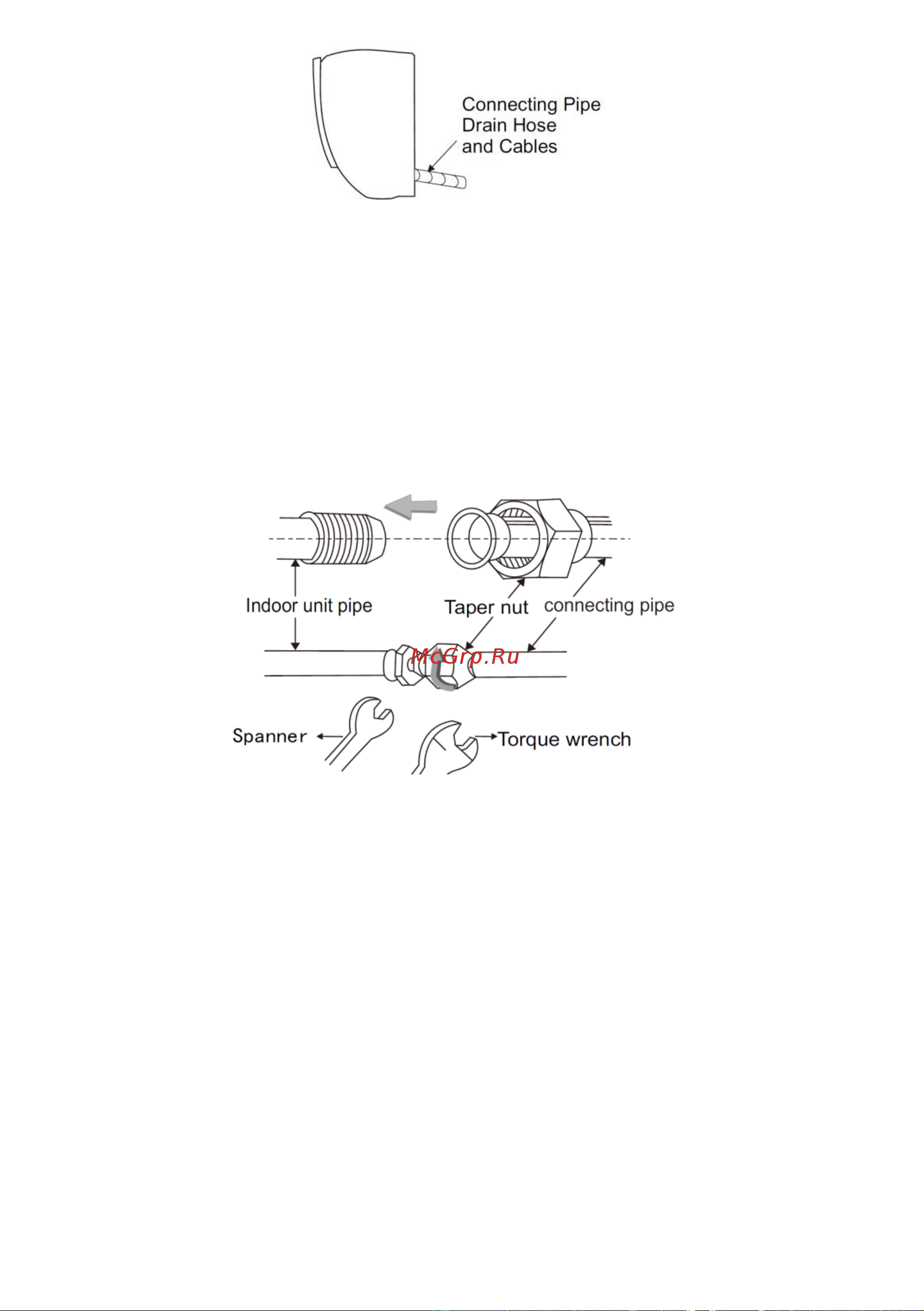

Fig. 6

Pipes connection

1. Remove the mountings and pull the indoor unit pipe out of the housing.

2. Connect the connecting pipe to the indoor unit: Aim at the pipe center, tighten the Taper nut

with fingers, and then tighten the Taper nut with a torque wrench, and the direction is shown in

diagram. The torque used is shown in the following table.

Fig. 7

Drain pipe connection

1. Put a corrugation to the output of the indoor unit (a plastic tube with a tip).

2. Fix the connection with a clamp

3. The drain hose must be laid with a slope towards the water outlet. The drain hose must not

have bends, twists, bends, etc. The end of the drain hose shouldn’t touch water

Wrap the Piping

1. Use the insulation sleeve to wrap the joint part the indoor unit and the connection pipe, and

then use insulating material to pack and seal insulation pipe, to prevent generation of

condensate water on the joint part.

2. Connect the water outlet with drain pipes, and make the connection pipe, cables, and the

drain hose straight.

3. Use plastic cable ties to wrap the connecting pipes, cables and drain hose. Run the pipe

sloping downward.
