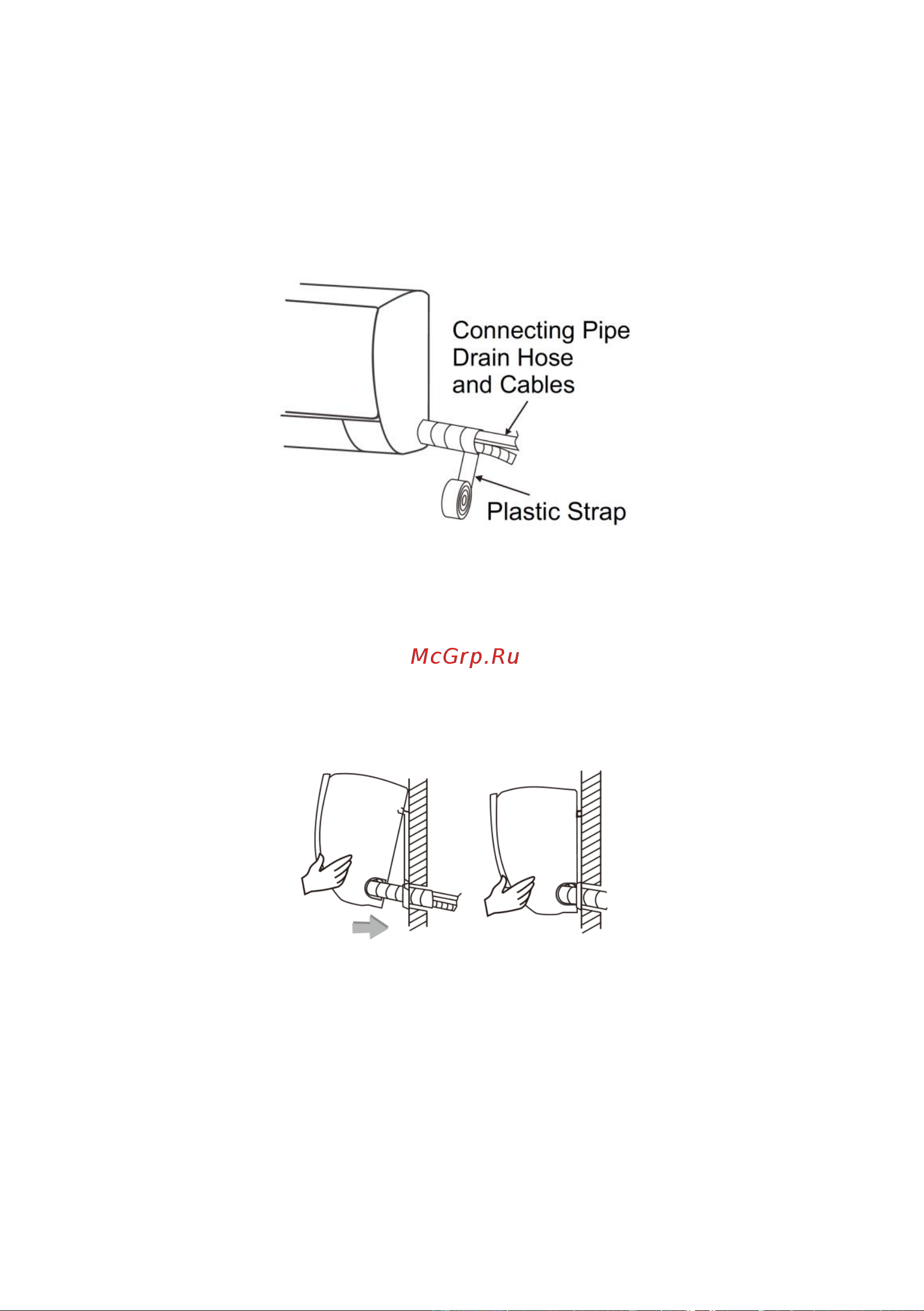

Wrap the Piping

1. Use the insulation sleeve to wrap the joint part the indoor unit and the connection pipe, and

then use insulating material to pack and seal insulation pipe, to prevent generation of

condensate water on the joint part.

2. Connect the water outlet with drain pipes, and make the connection pipe, cables, and the

drain hose straight.

3. Use plastic cable ties to wrap the connecting pipes, cables and drain hose. Run the pipe

sloping downward.

Fig. 8

Fixing the Indoor Unit

1. Hang the indoor unit on the peg board, and move the unit from left to right to ensure that the

hook is properly positioned in the peg board.

2. Push toward the lower left side and the upper right side of the unit toward the peg board, until

the hook is embedded in the slot and makes a "click" sound.

Fig. 9

Interconnection cord installation

Connect interconnection cord of indoor unit

1. Open the panel, remove the screw on the wiring cover and then take down the cover.

2. Make the interconnection cord go through the cable-cross hole at the back of indoor unit and

then pull it out from the front side.

3. Remove the wire clip; connect the interconnection cord to the wiring terminal according to the

wiring diagram; tighten the screw and then fix the interconnection cord with wire clip.
