Connecting peripheral equipment

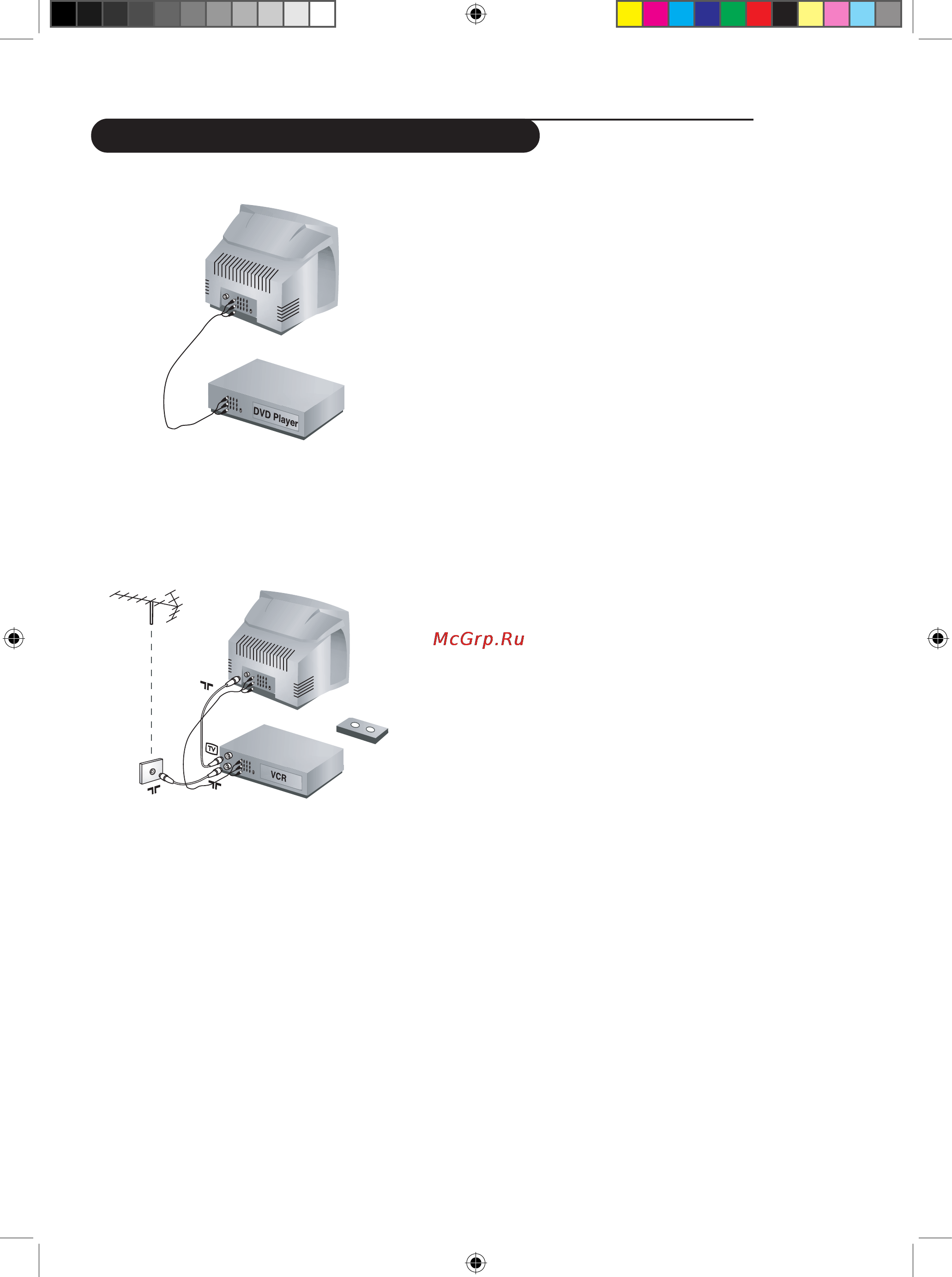

“ Turn on the TV and DVD player. Set the TV to

CVI and the DVD background screen will be

displayed on the screen. You can now play your discs.

Note: You need to select the channel CVI

manually to playback DVD disc.

“ Turn on the TV and VCR player. Set the TV to

channel AV2. You can now play your video

cassette tapes.

Connection is also possible via the aerial cable.

You will therefore need to tune in your video

recorder’s test signal and assign a channel

number 0. Select channel 0 to playback.

DVD player

Video recorder

Note: Do not connect the AV1 VIDEO IN socket.

Connect the cable from the TV's "Y", "Pb" and "Pr"

(AV1) sockets to the corresponding COMPONENT

VIDEO OUT sockets of the player.

Connect the red and white (R and L) cable

from the TV's AUDIO IN sockets to the

corresponding AUDIO OUT sockets of the

player.

Connect the yellow, white and red cable

from the TV's AV2 IN sockets to the

corresponding Video and Audio sockets

of the player.

Connect the red and white (R and L)

cable from the TV's AUDIO IN sockets

to the corresponding AUDIO OUT

sockets of the player.

AV1 IN

AV2 IN
