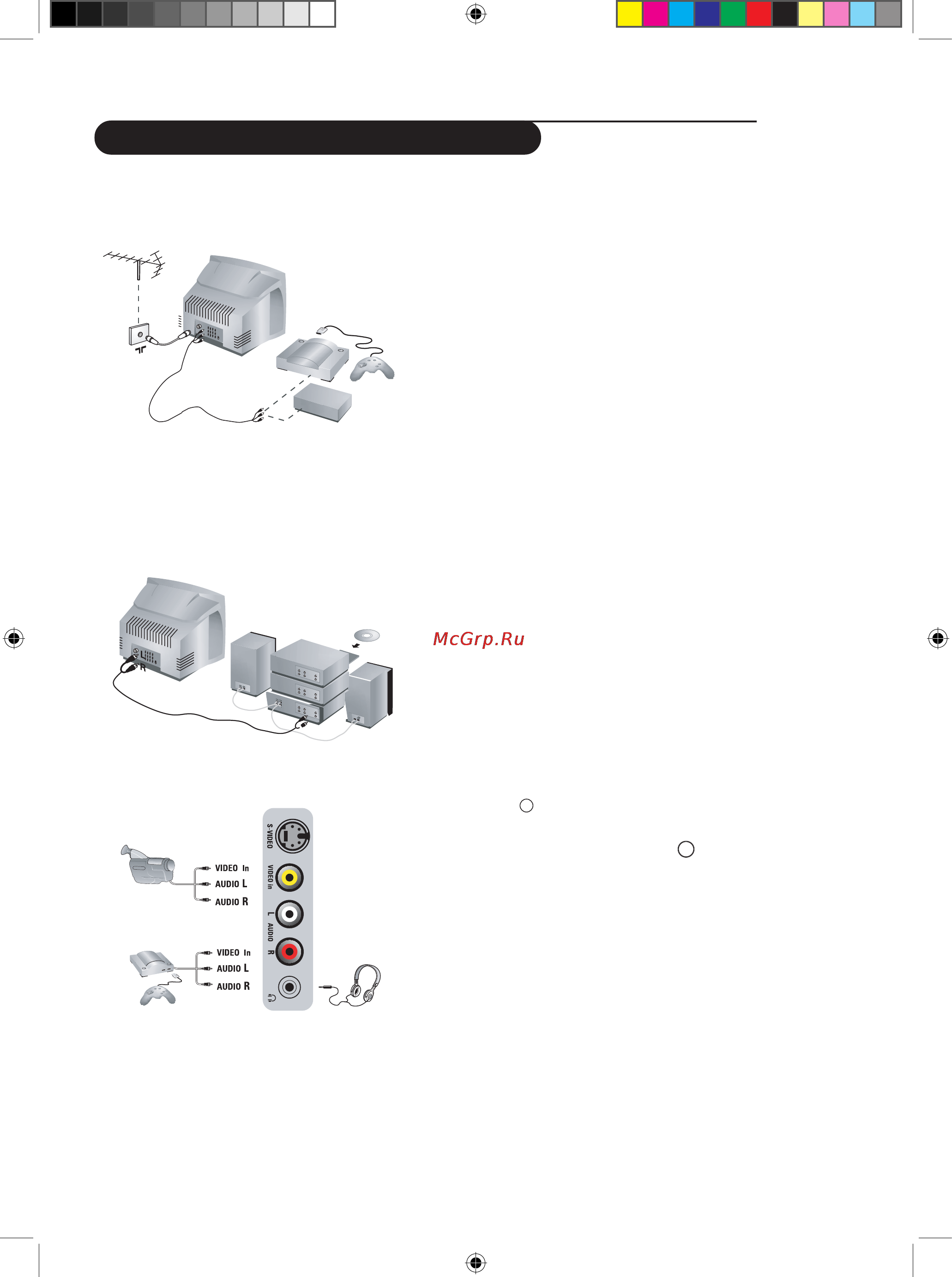

Connecting peripheral equipment

& Carry out the connections as shown.

é To optimise picture quality, connect the

equipment which produces the video signals

(digital decoder, games, etc) to AV1 IN and

equipment which produces the S-VHS signals

(S-VHS and Hi-8 video recorders, certain DVD

drives to AV2 IN and all other equipment to

either AV1 IN or AV2 IN.

& To connect to a hi-fi system, use an audio

connection cable and connect the “L” and

“R” outputs on the TV set to the “AUDIO

IN” “L” and “R” input on your hi-fi amplifier.

Make the connections as shown opposite.

Other equipment

Amplifier

With the key, select the channel Side.

For a monophonic device, connect the audio

signal to the AUDIO L input. Use the

key to

reproduce the sound on the left and right

speakers of the TV set.

Headphones

When headphones are connected, the sound

on the TV set will be cut. The VOL + or –

keys are used to adjust the volume level.

The headphone impedance must be between

32 and 600 Ohms.

Side connections

SAP

Note: Do not connect the VIDEO IN socket if you

are using the S-VIDEO IN socket of the TV.

AV1 IN
