GB
3

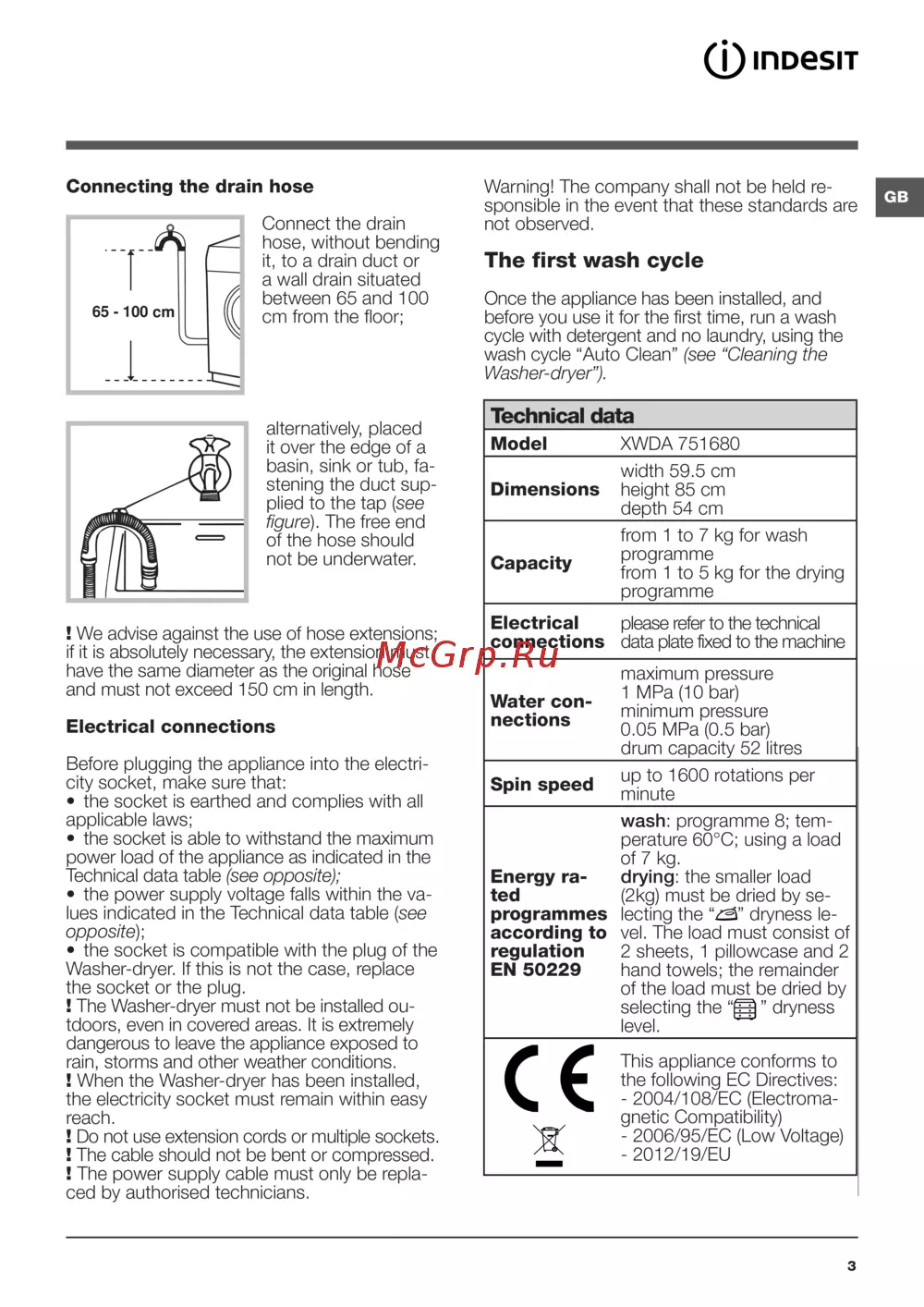

Connecting the drain hose
Connect the drain
hose, without bending
it, to a drain duct or
a wall drain situated
between 65 and 100
cm from the floor;
alternatively, placed
it over the edge of a
basin, sink or tub, fa-
stening the duct sup-
plied to the tap (see
figure). The free end
of the hose should
not be underwater.
! We advise against the use of hose extensions;
if it is absolutely necessary, the extension must
have the same diameter as the original hose
and must not exceed 150 cm in length.
Electrical connections
Before plugging the appliance into the electri-
city socket, make sure that:
• the socket is earthed and complies with all
applicable laws;
• the socket is able to withstand the maximum
power load of the appliance as indicated in the
Technical data table (see opposite);
• the power supply voltage falls within the va-
lues indicated in the Technical data table (see
opposite);
• the socket is compatible with the plug of the
Washer-dryer. If this is not the case, replace
the socket or the plug.
! The Washer-dryer must not be installed ou-
tdoors, even in covered areas. It is extremely
dangerous to leave the appliance exposed to
rain, storms and other weather conditions.
! When the Washer-dryer has been installed,
the electricity socket must remain within easy
reach.
! Do not use extension cords or multiple sockets.
! The cable should not be bent or compressed.
! The power supply cable must only be repla-
ced by authorised technicians.
65 - 100 cm
Warning! The company shall not be held re-
sponsible in the event that these standards are
not observed.
The first wash cycle
Once the appliance has been installed, and
before you use it for the first time, run a wash
cycle with detergent and no laundry, using the
wash cycle “Auto Clean” (see “Cleaning the
Washer-dryer”).
Technical data
Model
XWDA 751680
Dimensions
width 59.5 cm
height 85 cm
depth 54 cm
Capacity
from 1 to 7 kg for wash
programme
from 1 to 5 kg for the drying
programme
Electrical
connections
please refer to the technical
data plate fixed to the machine
Water con-
nections
maximum pressure
1 MPa (10 bar)
minimum pressure
0.05 MPa (0.5 bar)
drum capacity 52 litres
Spin speed
up to 1600 rotations per
minute
Energy ra-
ted
programmes
according to
regulation
EN 50229
wash: programme 8; tem-
perature 60°C; using a load
of 7 kg.
drying: the smaller load
(2kg) must be dried by se-
lecting the “
” dryness le-
vel. The load must consist of
2 sheets, 1 pillowcase and 2
hand towels; the remainder
of the load must be dried by
selecting the “ ” dryness
level.
This appliance conforms to
the following EC Directives:
- 2004/108/EC (Electroma-
gnetic Compatibility)
- 2006/95/EC (Low Voltage)
- 2012/19/EU
