2
GB

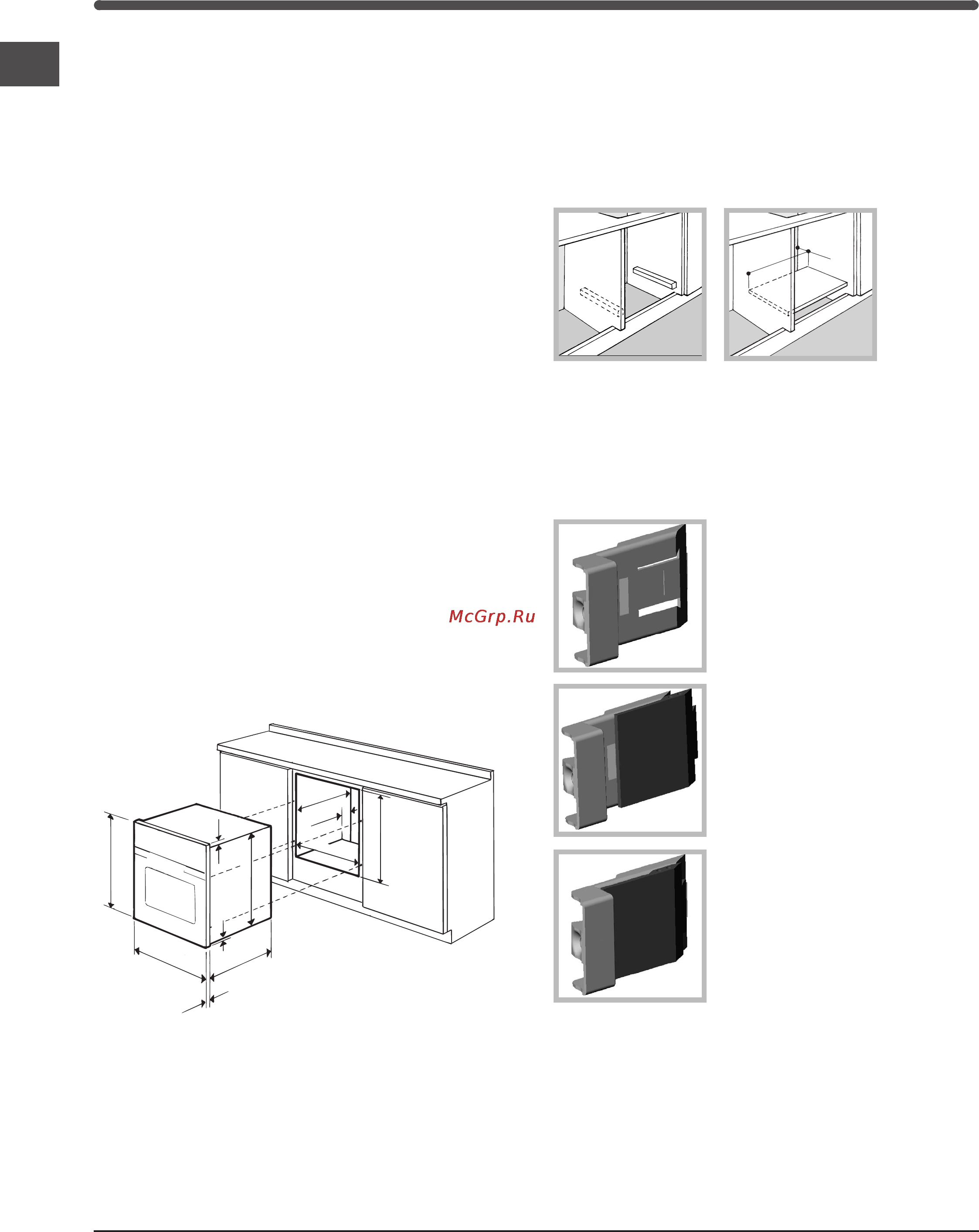

Ventilation
To ensure adequate ventilation is provided, the back
panel of the cabinet must be removed. It is
advisable to install the oven so that it rests on two
strips of wood, or on a completely flat surface with
an opening of at least 45 x 560 mm (
see diagrams
).
Centring and fixing
Position the 4 tabs on the side of the oven so that
they are aligned with the 4 holes on the outer frame.
Adjust the tabs in accordance with the thickness of
the cabinet side panel, as shown below:
20 mm thick: take off the
removable part of the tab (
see
diagram
).
18 mm thick: use the first
groove, which has already
been set in the factory (
see
diagram
).
16 mm thick: use the second
groove (
see diagram
).
Secure the appliance to the cabinet by opening the
oven door and inserting 4 screws into the 4 holes on
the outer frame.
!!
!!
! All parts which ensure the safe operation of the
appliance must not be removable without the aid of
a tool.
!!
!!
! Before operating your new appliance please read
this instruction booklet carefully. It contains
important information concerning the safe operation,
installation and maintenance of the appliance.
!!
!!
! Please keep these operating instructions for future
reference. Pass them on to any new owners of the
appliance.
Positioning
!!
!!
! Keep packaging material out of the reach of
children.
It can become a choking or suffocation hazard. (
see
Precautions and tips
).
!!
!!
! The appliance must be installed by a qualified
professional in accordance with the instructions
provided. Incorrect installation may cause harm to
people and animals or may damage property.
Built-in appliance
Use a suitable cabinet to ensure that the appliance
functions properly.
• The panels adjacent to the oven must be made of
heat-resistant material.
• Cabinets with a veneer exterior must be
assembled with glues which can withstand
temperatures of up to 100°C.
• To install the oven under the counter (
see
diagram
) or in a kitchen unit, the cabinet must
have the following dimensions:
!!
!!
! The appliance must not come into contact with
electrical parts once it has been installed.
The indications for consumption given on the data
plate have been calculated for this type of
installation.
595 mm.
595 mm.
24 mm.
545 mm.
5 mm.
567 mm.
23 mm.
593 mm.
45 mm.
558 mm.
547 mm. min.
Installation
560 mm.
45 mm.
