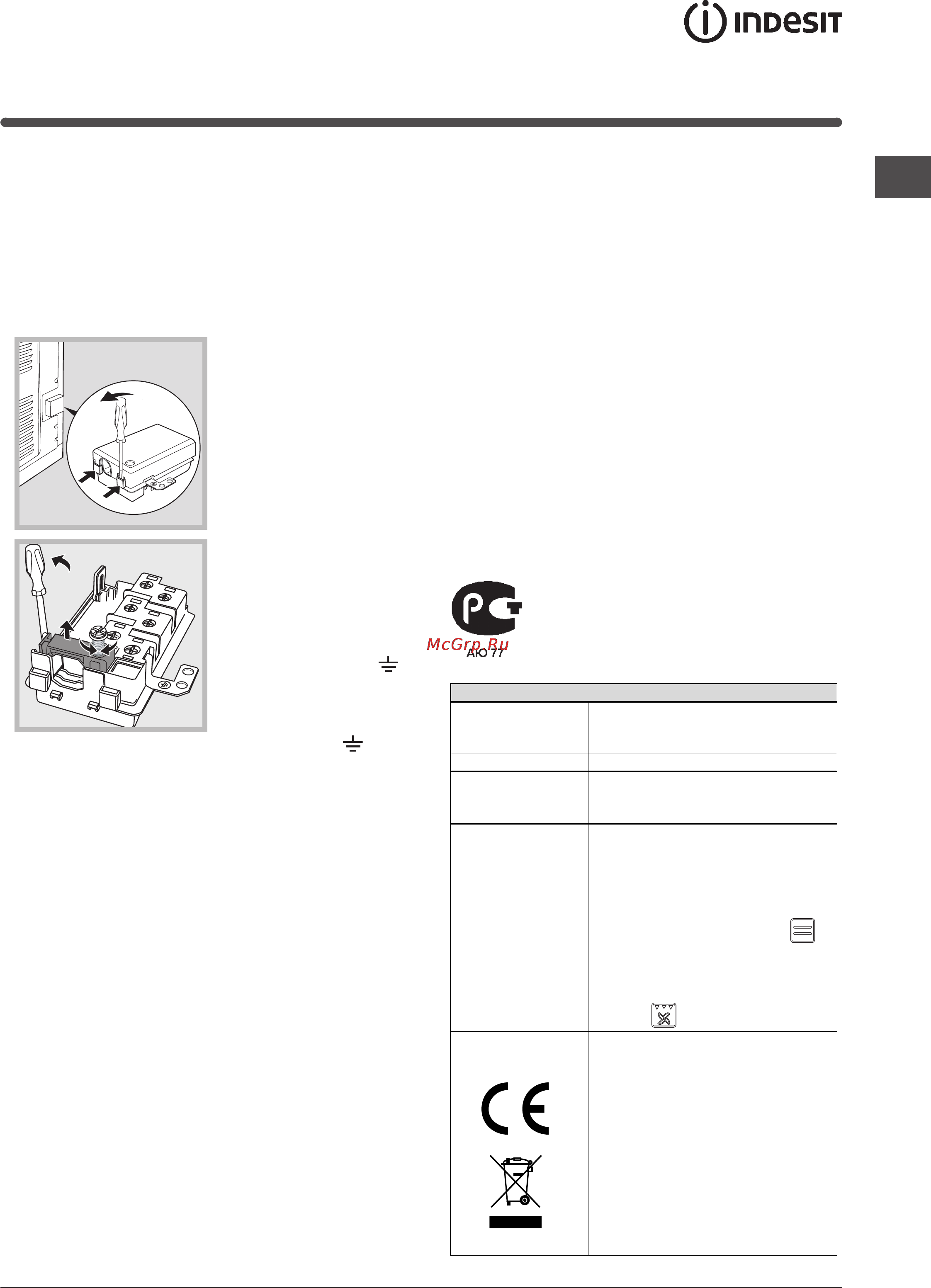

Indesit 7OIF 997K.A_IX [3/24] Electrical connection

Electrical connection

! Ovens equipped with a three-pole power supply

cable are designed to operate with alternating

current at the voltage and frequency indicated on

the data plate located on the appliance (

see below

Fitting the power supply cable

1. Open the terminal

board by inserting a

screwdriver into the

side tabs of the cover.

Use the screwdriver as

a lever by pushing it

down to open the cover

(

see diagram

2. Loosen the cable

clamp screw and

remove it, using a

screwdriver as a lever

(

see figure

3. Remove the wire

contact screws L-N-

then fasten the wires

under the screw heads,

observing the colour

code: Blue (N), Brown (L) and Yellow-Green (

Connecting the electricity supply cable to the

mains

Install a standardised plug corresponding to the

load indicated on the data plate (

see table

The appliance must be directly connected to the

mains using an omnipolar switch with a minimum

contact opening of 3 mm installed between the

appliance and the mains. The switch must be

suitable for the charge indicated and must comply

with current electrical regulations (the earthing wire

must not be interrupted by the switch). The supply

cable must be positioned so that it does not come

into contact with temperatures higher than 50°C at

any point.

! The installer must ensure that the correct electrical

connection has been made and that it is fully

compliant with safety regulations.

Before connecting the appliance to the power

supply, make sure that:

• The appliance is earthed and the plug is compliant

with the law.

• The socket can withstand the maximum power of

the appliance, which is indicated on the data

plate (

see below

• The voltage is in the range between the values

indicated on the data plate (

see below

• The socket is compatible with the plug of the

appliance. If the socket is incompatible with the

plug, ask an authorised technician to replace it.

Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power

supply cable and the electrical socket must be

easily accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced

by authorised technicians only (

see Assistance

The manufacturer declines any liability shouldThe manufacturer declines any liability should

The manufacturer declines any liability should

these safety measures not be observed.these safety measures not be observed.

these safety measures not be observed.

TABLE OF CHARACTERISTICS

Dimensions

width 43.5 cm

height 32 cm

depth 40 cm

olume 56 l

Electrical

connections

voltage: 220 - 240 V~ 50 Hz

maximum power absorbed 2800

(

see data

late

)

ENERGY LABEL

Directive 2002/40/EC on the label

of electric ovens.

Standard EN 50304

Energy consumption for Natural

convection – heating mode:

Traditional mode

Declared energy consumption for

Forced convection Class – heating

mode:

Gratin.

This appliance conforms to the

following European Econ omic

Community directives:

2006/95/EEC dated 12.12.06 (Low

Voltage) and subsequent

amendments – 2004/108/EEC

dated 15/12/04 (Electromagnetic

Compatibility) and subsequent

amendments - 93/68/EEC dated

22/07/93 and subsequent

amendments. - 2002/96/EEC and

subsequent amendments.

1275/2008 stand-by/off mode.
