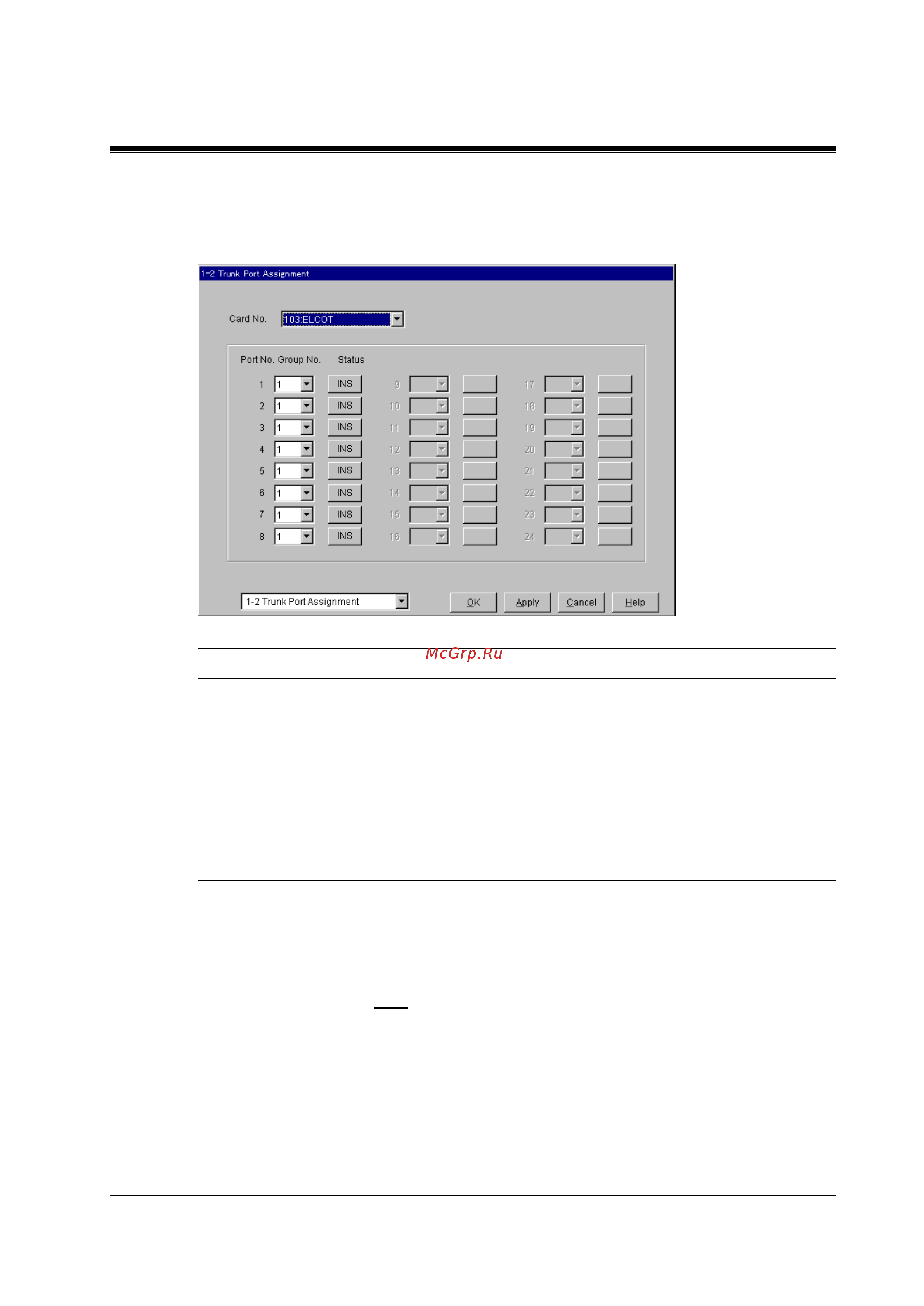

Configuration
Programming Guide 11
1.3 Trunk Port Assignment
Used to assign each trunk port in the system to one of up to 48 trunk groups.
Parameter Card No.
Default —
Value Range XXX : YYY [XXX : Card No. (101-314), YYY : Card Type]
Description/Function Specifies the physical number of the trunk card and its type, which
you are going to programme.
Reference • 1.2 Slot Assignment (P/G)
Parameter Group No.
Default DID/DID-2W/DID-MFC card: 47, E&M card: 48, Others : 1
Value Range 1-48
Description/Function Specifies the trunk group (1-48) to which the trunk port is assigned.
Note
• Each trunk port must be assigned to a Trunk Group.
This programme defines the Trunk Group assignment for
each trunk port.
Reference • 1.3 System Features (F/G)
–TrunkGroup
• 3.2 Trunk Group (P/G)
