37
Chapter 6
The Firmware Upgrade Utility
The Windows-based Firmware Upgrade Utility (FWUpgrade.exe) provides a
smooth, automated process for upgrading the KVM switch’s firmware. The
Utility comes as part of a Firmware Upgrade Package that is specific for each
device. Check the web site regularly to find the latest packages and information
relating to them:
http://www.aten.com/download/download_fw.php
Before you Begin
1. From a computer that is not part of your KVM installation, go to our
Support & Downloads
site and choose the model name that relates to your
device (CS1922M / CS1924M) to get a list of available Firmware Upgrade
Packages.
2. Choose the Firmware Upgrade Package you want to install (usually the
most recent), and download it to your computer.

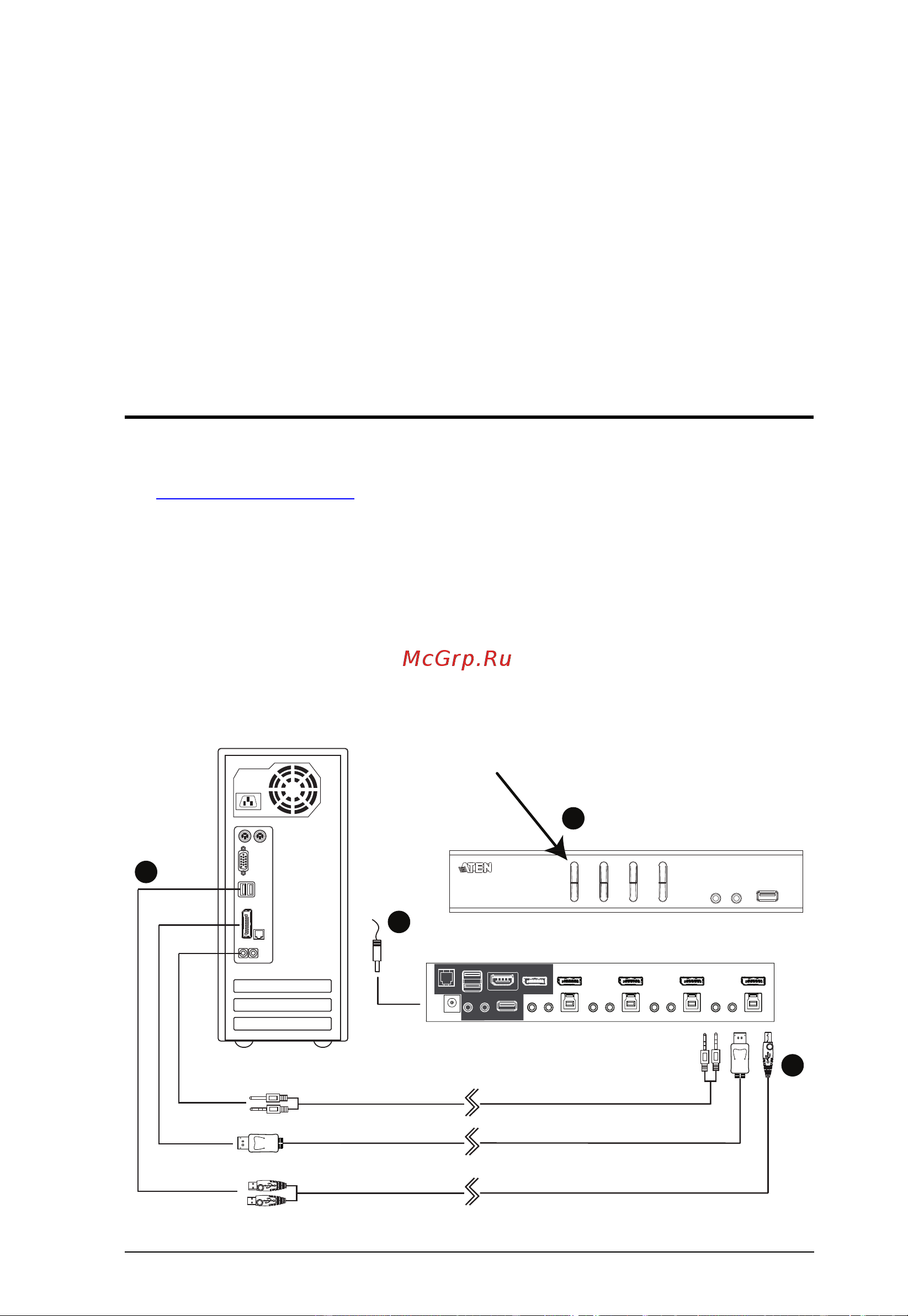

3. Disconnect the CS1922M / CS1924M from your KVM installation and
power it off. Connect the USB cable's Type-A connector to a USB port on
your computer.
4
3
5
5
