CN9000/CN9600/CN9950 User Manual
84

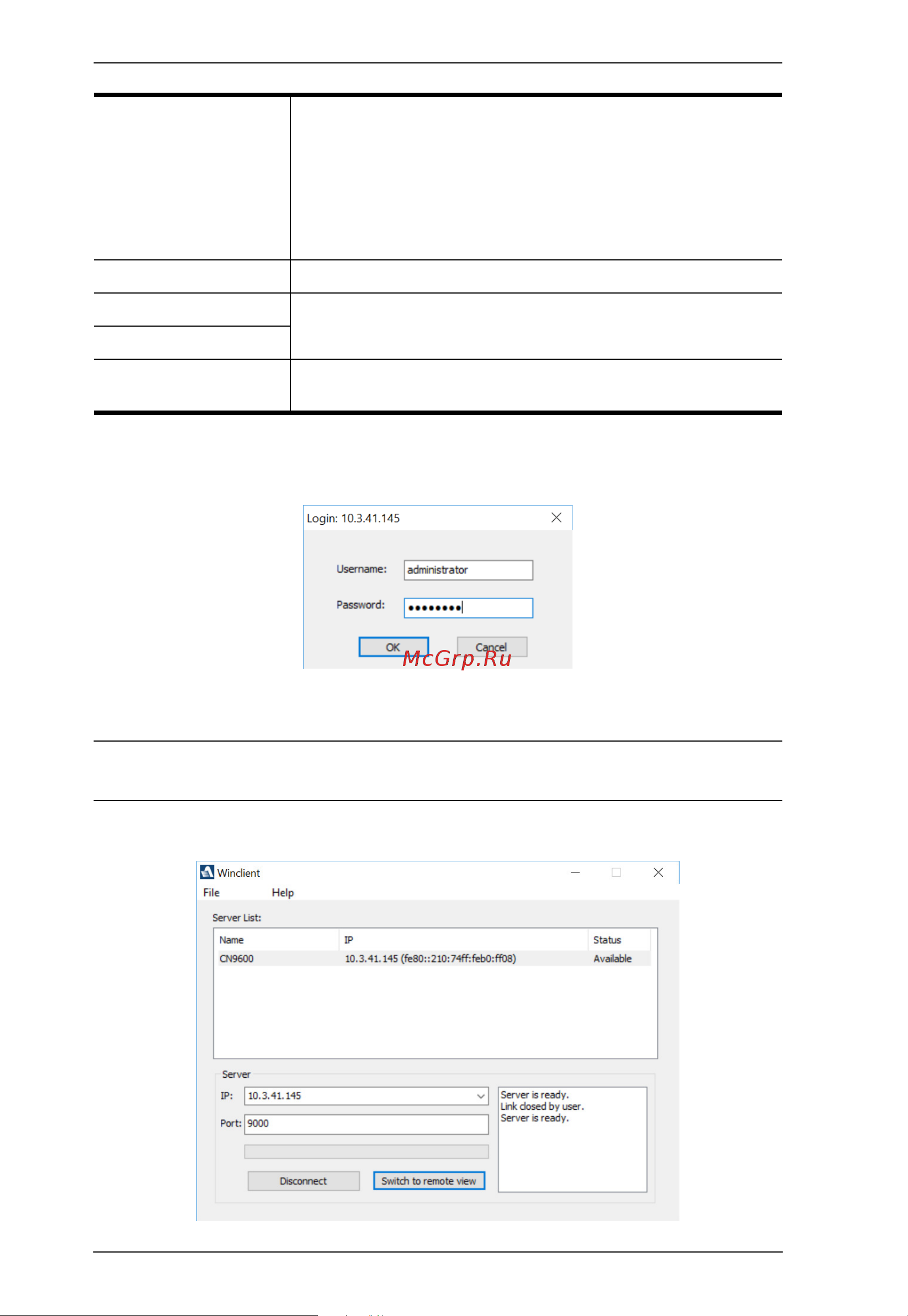

1. Double-click the unit. When the CN9000/CN9600/CN9950
is
connected to
the unit, a login window appears:
2. Provide a valid Username and Password and click OK to continue.
Note: The default Username is administrator and the default Password is
password.
After you have successfully logged in, the connection screen reappears:
Server If the CN9000/CN9600/CN9950 you wish to connect to is at a
remote location, it will not be found on your LAN. You can
enter its IP address and port yourself.
If you don't know the Port number, contact the Administrator.
When the IP address and Port number for the unit you wish to
connect to have been specified, click Connect to start the
connection.
Connect Starts connecting to the CN9000/CN9600/CN9950.
Disconnect These buttons become active once you log into the CN9000/
CN9600/CN9950. See page 85 for details.
Switch to remote view
Message panel The blank field on the right of the Server section shows the
current status of the server connection.
