CE611 User Manual

CE611L

No. Component Description

1 Grounding Terminal Grounds the CE611L to prevent damages from power

surge or static electricity.

2 RS-232 Serial Port Receives an RS-232 serial cable which connects to a local

computer.

3 Firmware Upgrade

Switch

This function is reserved for ATEN Technical Support. If you

would like upgrade the firmware, please contact your

dealer.

4 Audio Out Connects to a local computer using a speaker cable.

5 Audio In Connects to a local computer using a microphone cable.

6 Link LED Lights on to indicate that the CE611L and CE611R are

connected.

7 Power LED Lights on to indicate that the CE611L is receiving power.

8 Power Jack Receives the power adapter cable.

9 HDBaseT Out Port Receives a Cat 5e/6 cable or an ATEN 2L-2910 cable

which connects the CE611L and the CE611R.

10 DVI In Port Receives a DVI cable which connects to a local computer.

11 USB Type-B Port Receives a USB cable which connects to the local

computer.

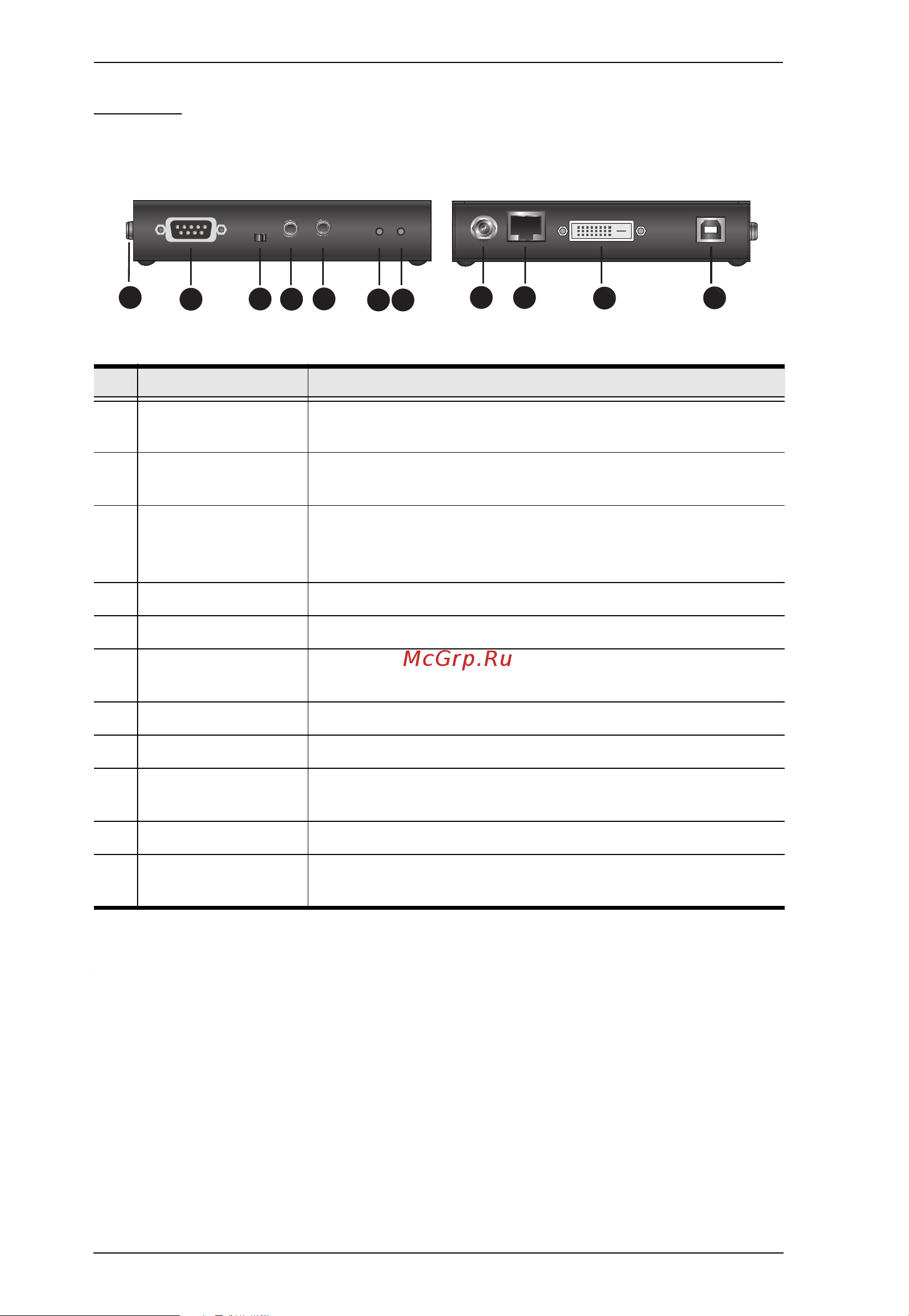

CE611L Front View

CE611L Rear View
