RCM KVM over IP Switch User Manual
98

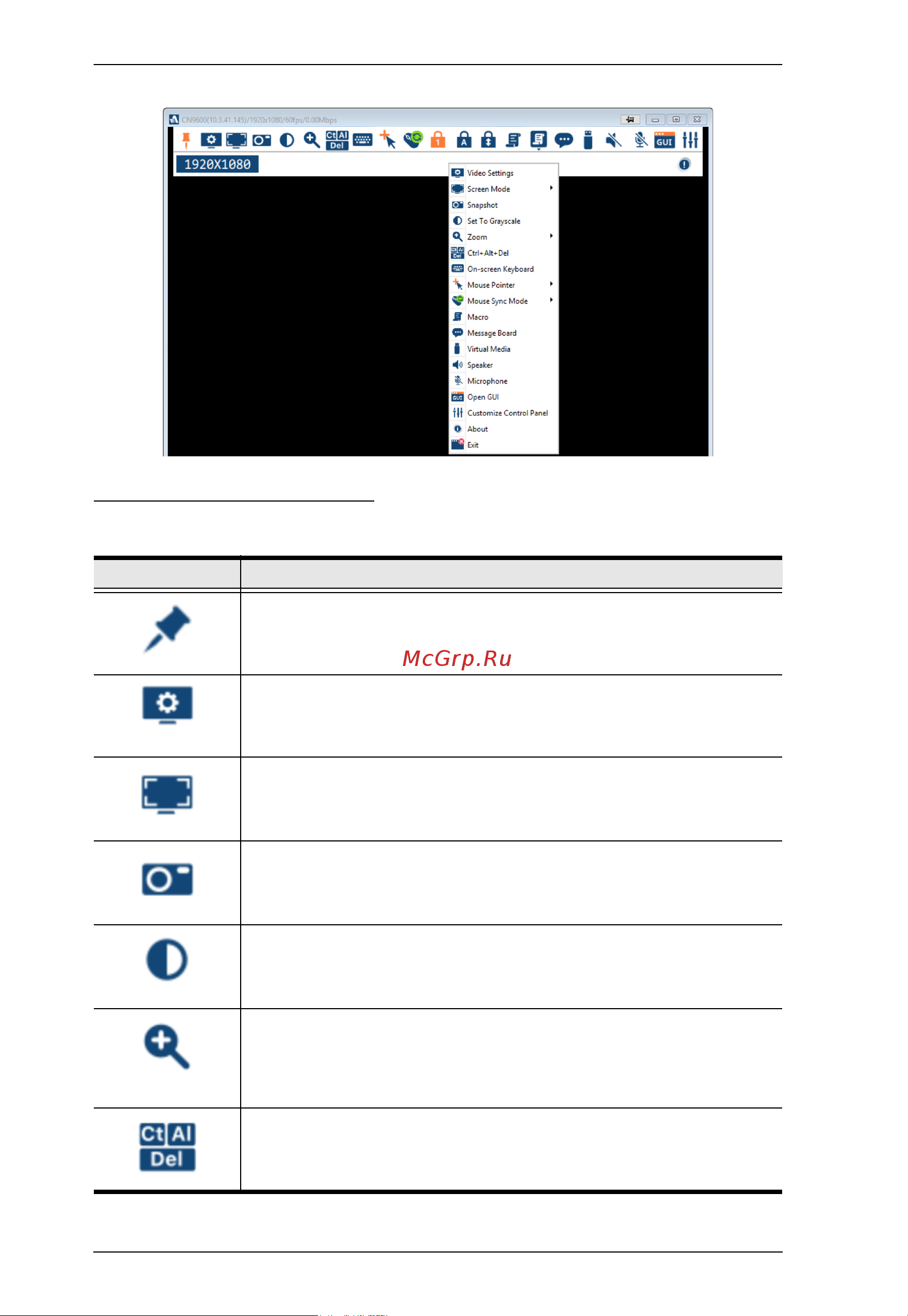

Control Panel Functions
The Control Panel functions are described in the table below.
Icon Function
This is a toggle. Click to ping the Control Panel to the window where
it is always displayed on top of other screen elements. Click again to
have it display normally.
Click to bring up the Video Options dialog box. (See Video Settings,
page 109, for details).
Toggles the display between Full Screen Mode and Windowed
Mode.
Click to take a snapshot (screen capture) of the remote display. To
configure the Snapshot parameters, refer to Snapshot on page 124.
Click to toggle the remote display between color and grayscale.
Click to adjust the zoom factor of the remote display window or
adjust the window size.
Note: This feature is only available in windowed mode (Full Screen
Mode is off). See Zoom/ Scale Window Size, page 117 for details.
Click to send a Ctrl+Alt+Del signal to the remote system.
