Aten RCMVGA101 [61/196] Configuration

Chapter 5

Configuration

Introduction

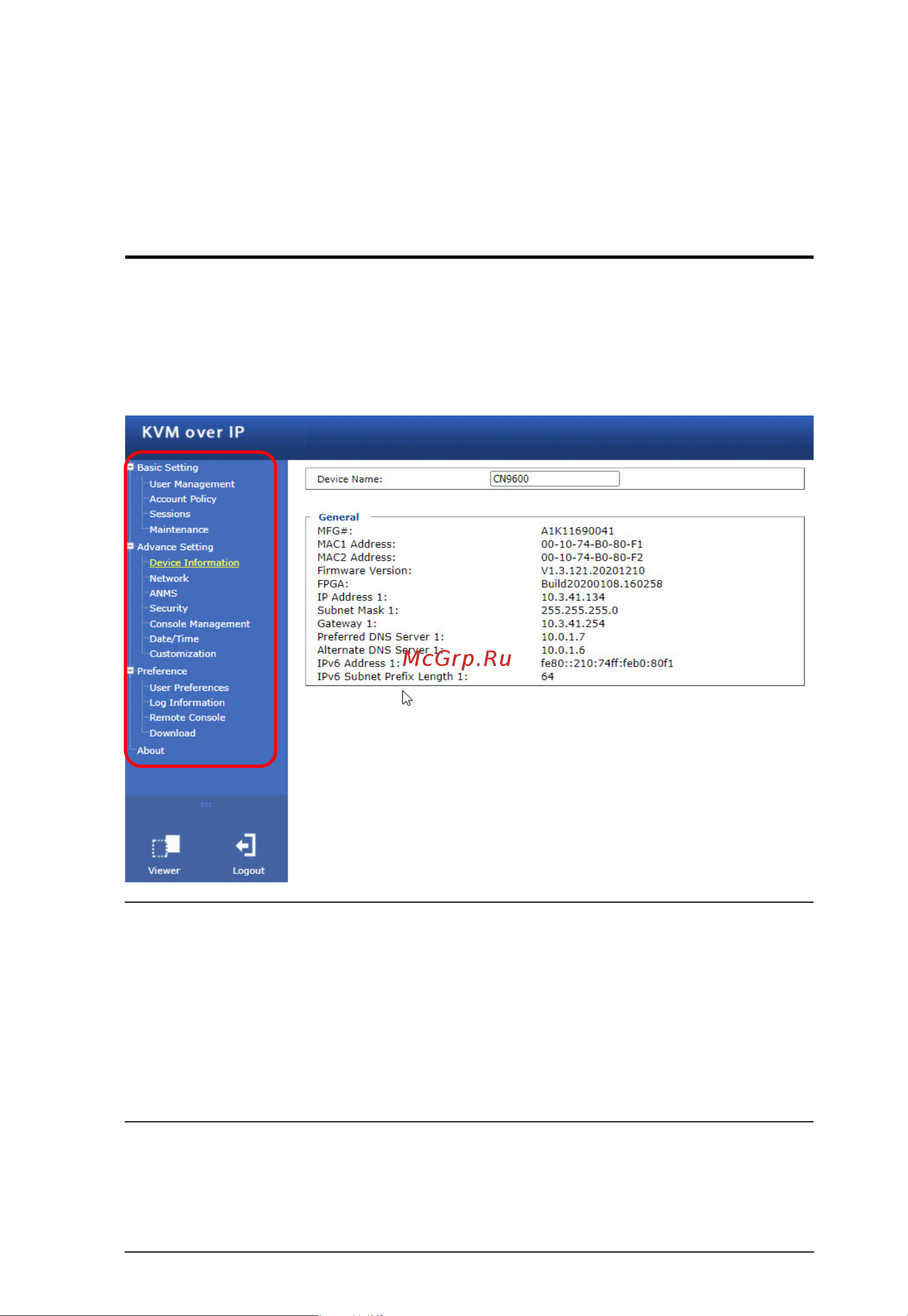

The administration utilities, represented by the links and icons located on the

left panel of the RCM KVM over IP Switch web page, are used to configure

the device’s operating environment. This chapter discusses each of them in

turn.

Note: 1. As you make your configuration changes in each dialog box, click

Save to apply the settings.

2. Some configuration changes only take effect after a RCM KVM over

IP Switch is reset. To have the changes take effect, log out and then

log back in again.

3. If you don’t have configuration privileges (see User Management,

page 46), the Administration configuration dialogs are not available.
