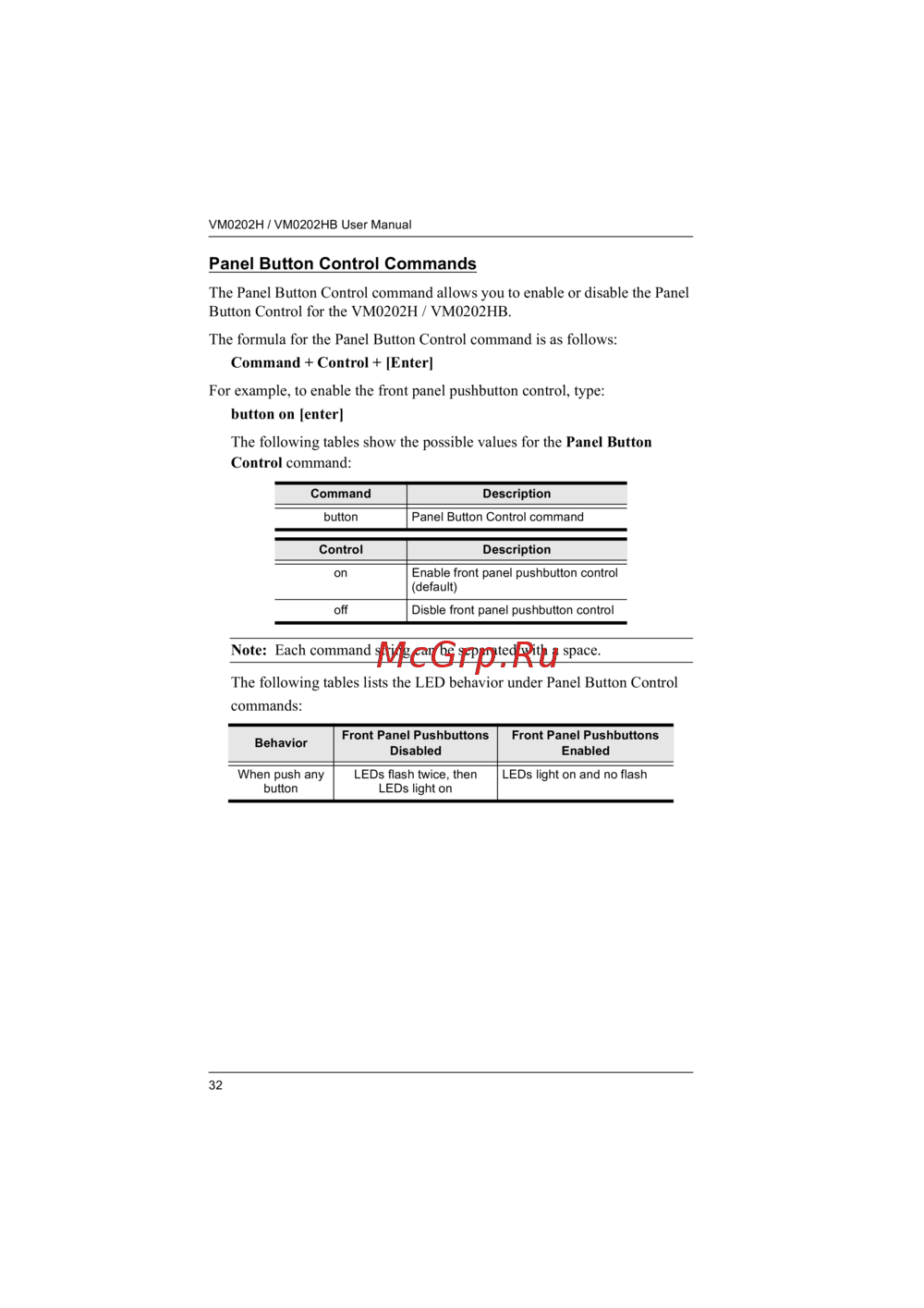

VM0202H / VM0202HB User Manual
32
Panel Button Control Commands
The Panel Button Control command allows you to enable or disable the Panel
Button Control for the VM0202H / VM0202HB.
The formula for the Panel Button Control command is as follows:
Command + Control + [Enter]
For example, to enable the front panel pushbutton control, type:
button on [enter]
The following tables show the possible values for the Panel Button
Control command:
Note: Each command string can be separated with a space.
The following tables lists the LED behavior under Panel Button Control
commands:
Command Description
button Panel Button Control command
Control Description
on Enable front panel pushbutton control
(default)
off Disble front panel pushbutton control
Behavior
Front Panel Pushbuttons
Disabled
Front Panel Pushbuttons
Enabled
When push any
button
LEDs flash twice, then
LEDs light on
LEDs light on and no flash
