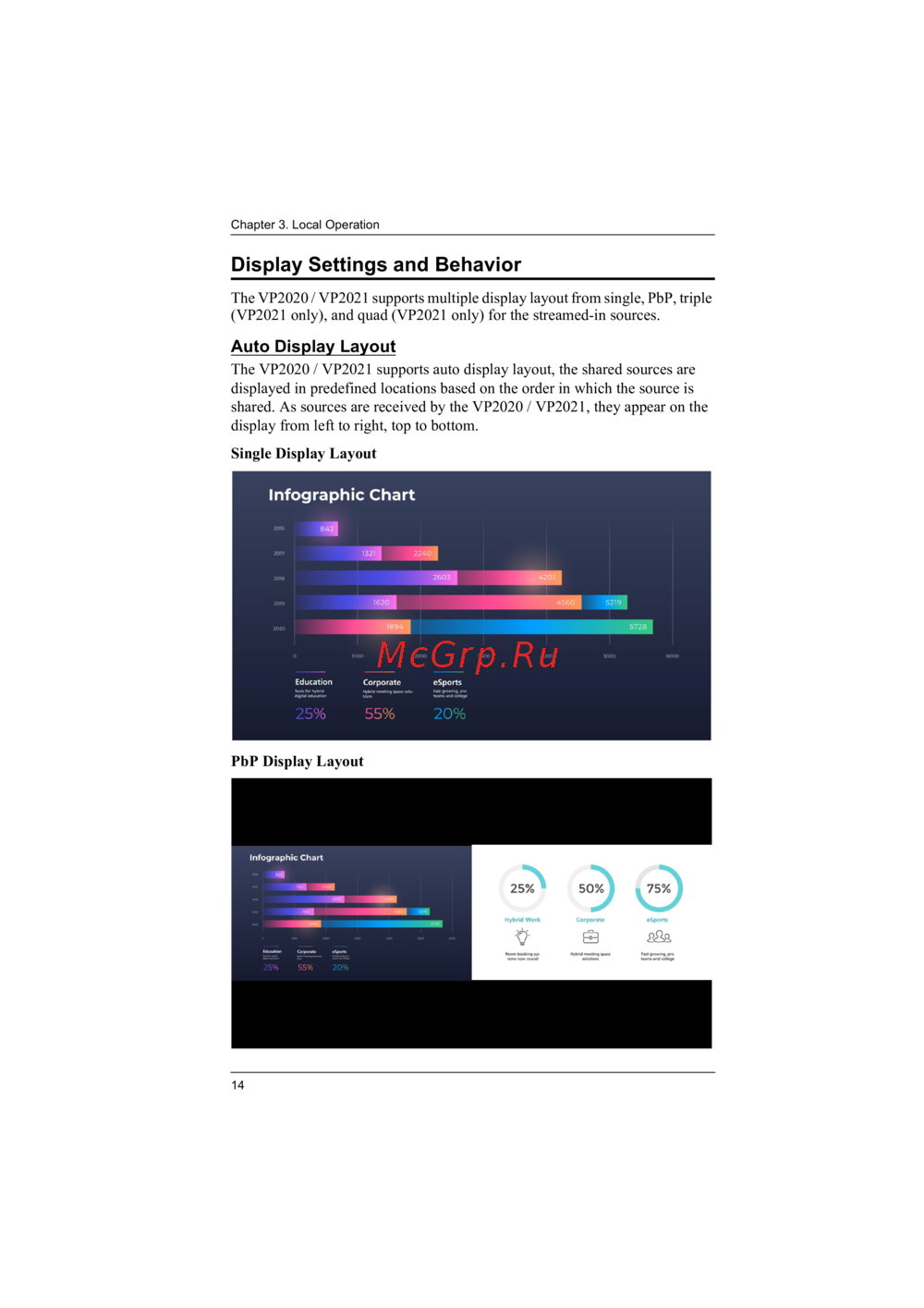

Aten VP2021 [26/88] Display settings and behavior

Chapter 3. Local Operation

Display Settings and Behavior

The VP2020 / VP2021 supports multiple display layout from single, PbP, triple

(VP2021 only), and quad (VP2021 only) for the streamed-in sources.

Auto Display Layout

The VP2020 / VP2021 supports auto display layout, the shared sources are

displayed in predefined locations based on the order in which the source is

shared. As sources are received by the VP2020 / VP2021, they appear on the

display from left to right, top to bottom.

Single Display Layout

PbP Display Layout
