eco PDU PG Series User Manual

Deleting a PDU

To delete a cascaded PDU, do the following:

1. Check the checkbox(s) beside the ID column of the eco PDU(s) you want

to remove.

2. Click Remove.

Connecting a PDU

To connect to a cascaded PDU, do the following:

1. Check the checkbox(s) beside the ID column of the eco PDU(s) you want

to connect.

2. Click Connect.

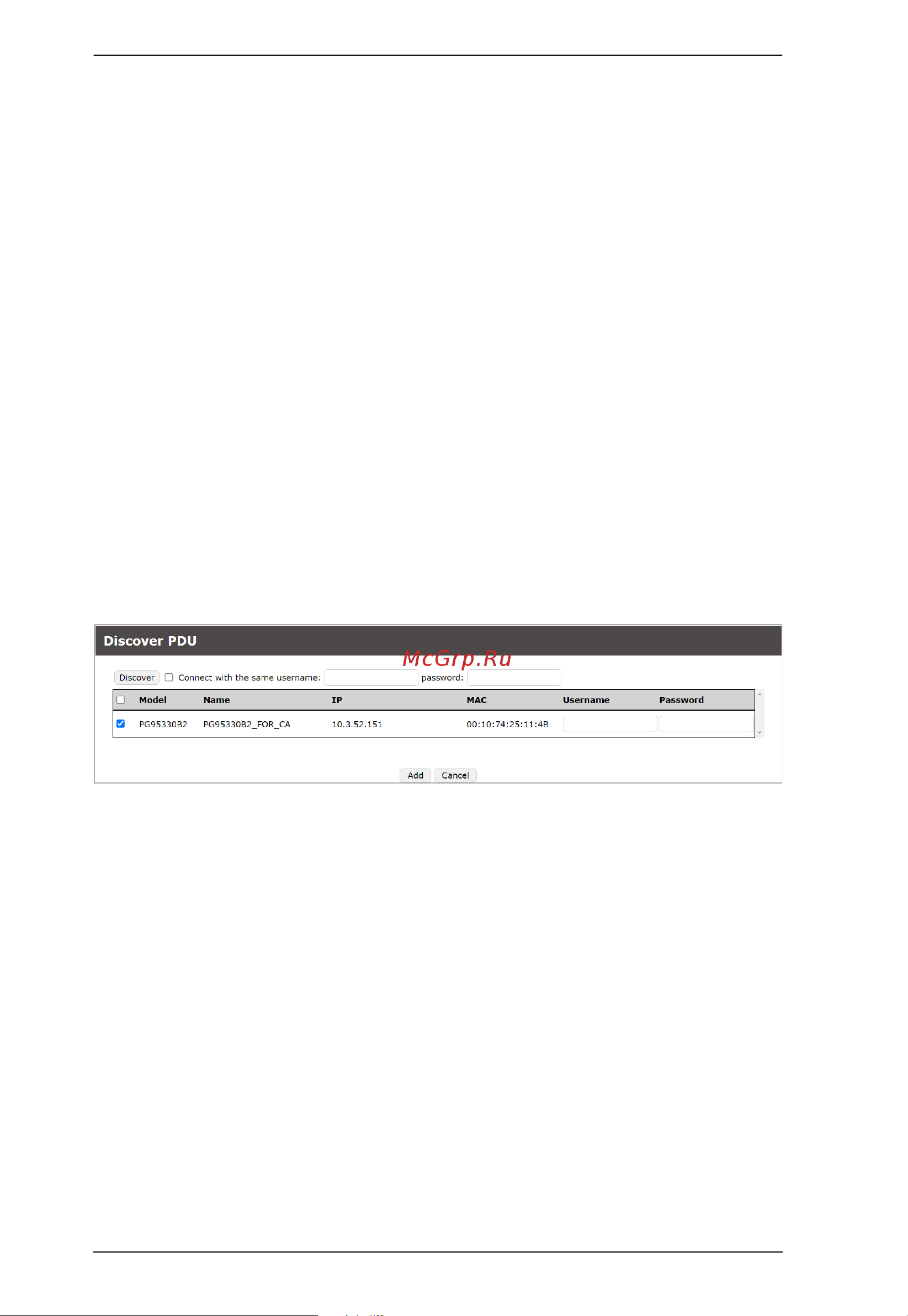

Discovering

To discover a cascaded PDU in your installation, do the following:

1. Check the checkbox beside discover and key in the username and

password information.

2. Click Discover.
