6. Configure static routing 192.168.3.0/24 on Switch1, and configure static routing

192.168.1.0/24 on Switch2.

7. Ping each other among PCs.

Note: First make sure PC1 and Switch1 can access each other by ping, and PC2 and

Switch2 can access each other by ping.

The configuration procedure is as follows:

Switch1(config)#interface vlan 1

Switch1(Config-if-Vlan1)#ip address 192.168.1.1 255.255.255.0

Switch1(config)#interface vlan 2

Switch1(Config-if-Vlan2)#ip address 192.168.2.1 255.255.255.0

Switch1(Config-if-Vlan2)#exit

Switch1(config)#ip route 192.168.3.0 255.255.255.0 192.168.2.2

Switch2(config)#interface vlan 2

Switch2(Config-if-Vlan2)#ip address 192.168.2.2 255.255.255.0

Switch2(config)#interface vlan 3

Switch2(Config-if-Vlan3)#ip address 192.168.3.1 255.255.255.0

Switch2(Config-if-Vlan3)#exit

Switch2(config)#ip route 192.168.1.0 255.255.255.0 192.168.2.1

3.2.3.2 Configuration Examples of IPv6

Example 1:

PC2

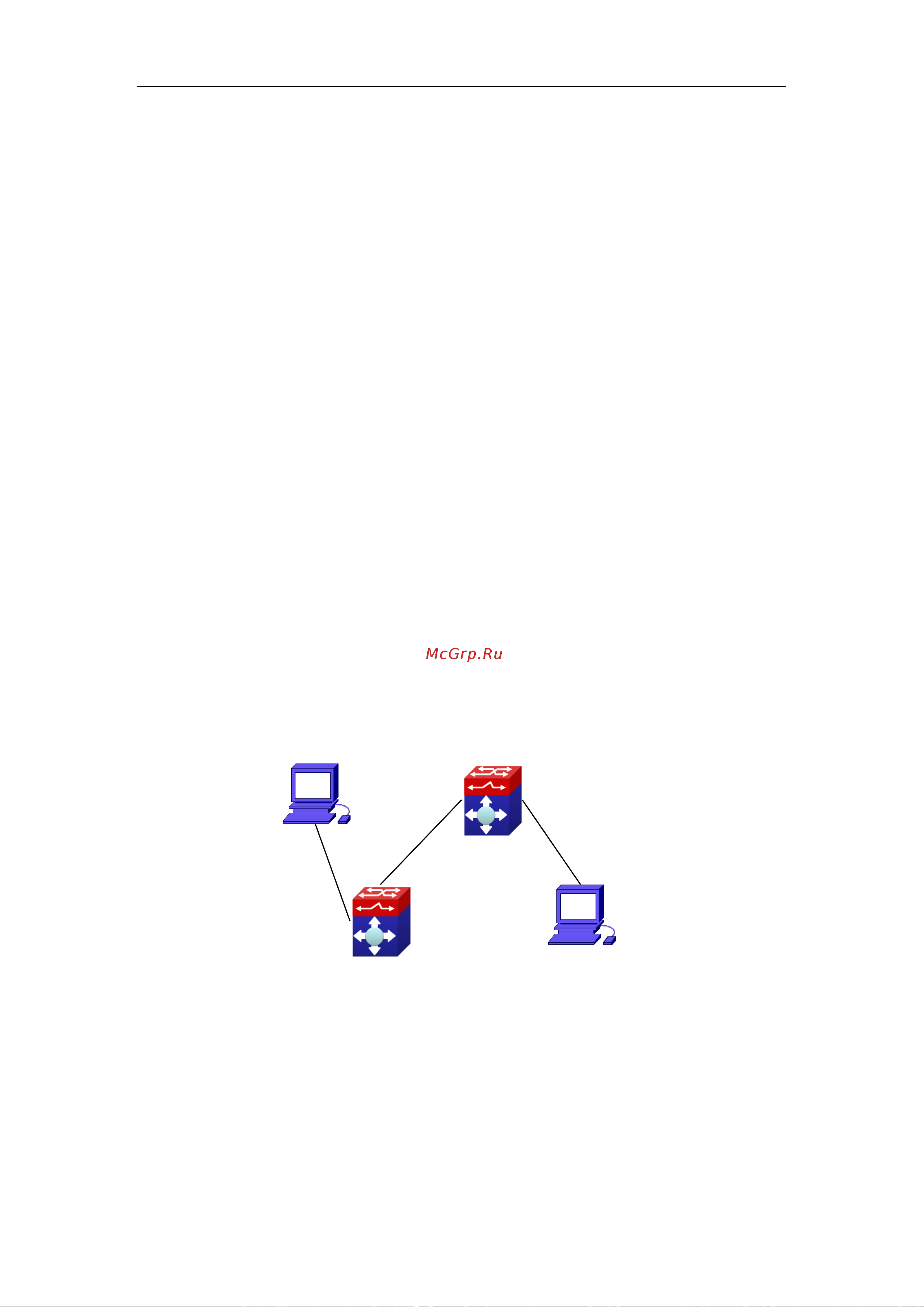

Figure 3-2 IPv6 configuration example

The user’s configuration requirements are: Configure IPv6 address of different

network segments on Switch1 and Switch2, configure static routing and validate

reachability using ping6 function.

Configuration Description:

1. Configure two VLANs on Switch1, namely, VLAN1 and VLAN2.

2. Configure IPv6 address 2001::1/64 in VLAN1 of Switch1, and configure IPv6

PC1

Switch2

Switch1
