SNR SR2225RS [31/195] Description features

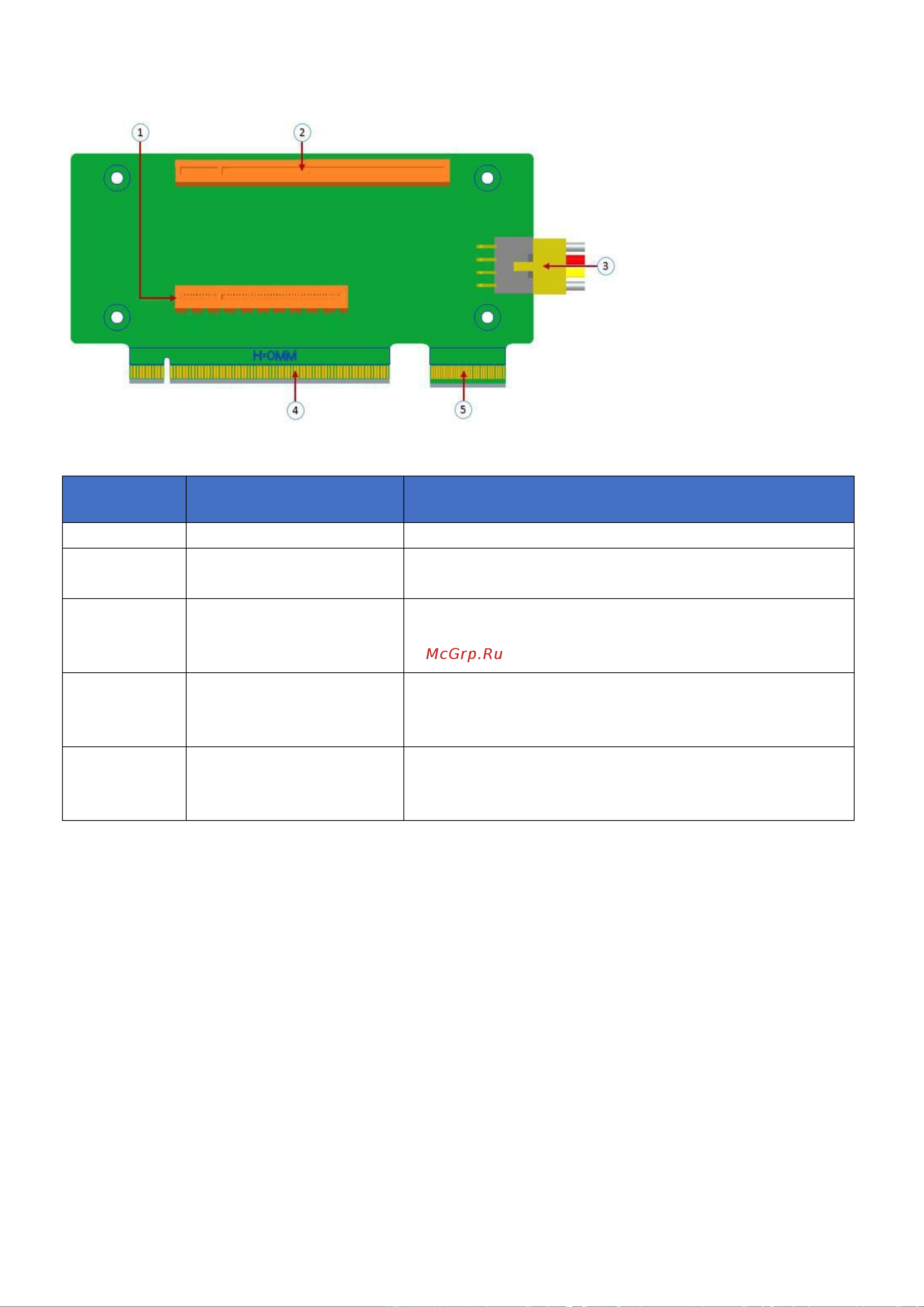

Riser 1

Figure 2- 18

Serial

number

Description

Features

PCIE 3.0 X8 Slot

Used for PCIe 3.0 X8 devices.

PCIE 3.0 X16

Slot

Used for PCIe 3.0 X16 devices.

RISER POWER

Riser card power transmission connector for 12V power

supply

Transmission

PCIE X16 specification

gold

finger

For G3DCL motherboard PCIe X16 X8

interface

PCIE X8 specification gold

hand

Means

For G3DCL motherboard PCIe X16 X8

interface

Table 1- 24
