Tilt and Swivel

Grasp the top and bottom sides of the monitor screen with your hands and adjust the tilt and swivel as desired (Figure TS.1).

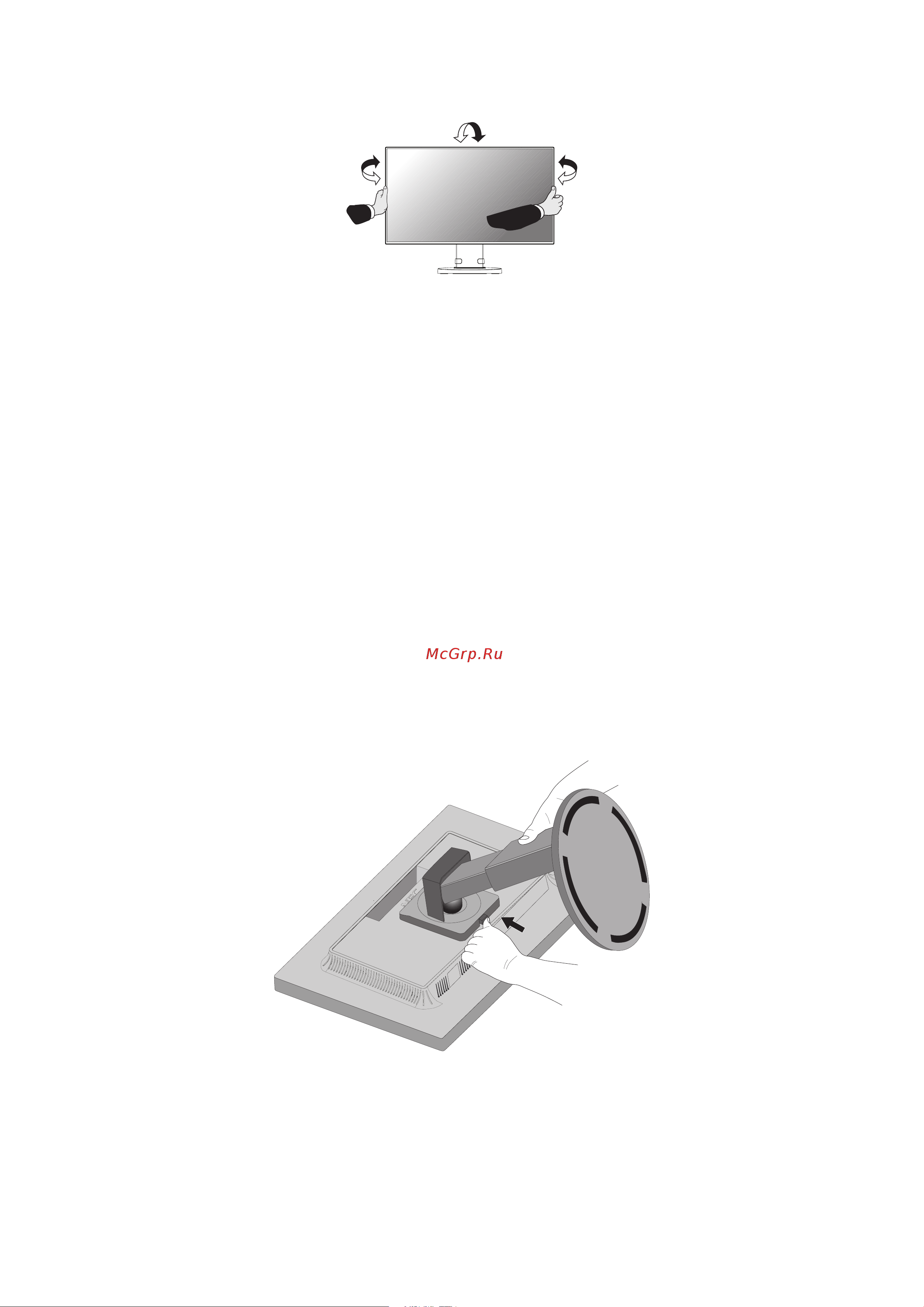

Figure TS.1

NOTE: Handle with care when tilting the monitor screen.

Do not insert hand into tilt cover when adjusting the monitor screen tilt.

Flexible Arm Installation

This LCD monitor is designed for use with a ﬂ exible arm.

To prepare the monitor for alternate mounting purposes:

• Follow the instructions provided by the manufacturer of the display mount.

• To meet the safety requirements, the mounting stand must be able to support the weight of the monitor and be UL-certiﬁ ed.

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

1. Disconnect all cables.

2. Place hands on each side of the monitor and lift up to the highest position.

3. Place monitor face down on a non-abrasive surface (Figure S.1).

4. Place one hand around the base and one hand on the Quick Release Lever.

Push and hold the Quick Release Lever in the direction indicated by the arrows (Figure S.1).

5. Lift up the stand to unhook it from the monitor (Figure S.1).

The monitor can now be mounted using an alternate method.

Reverse the process to reattach stand.

NOTE: Handle with care when removing monitor stand.

Figure S.1
