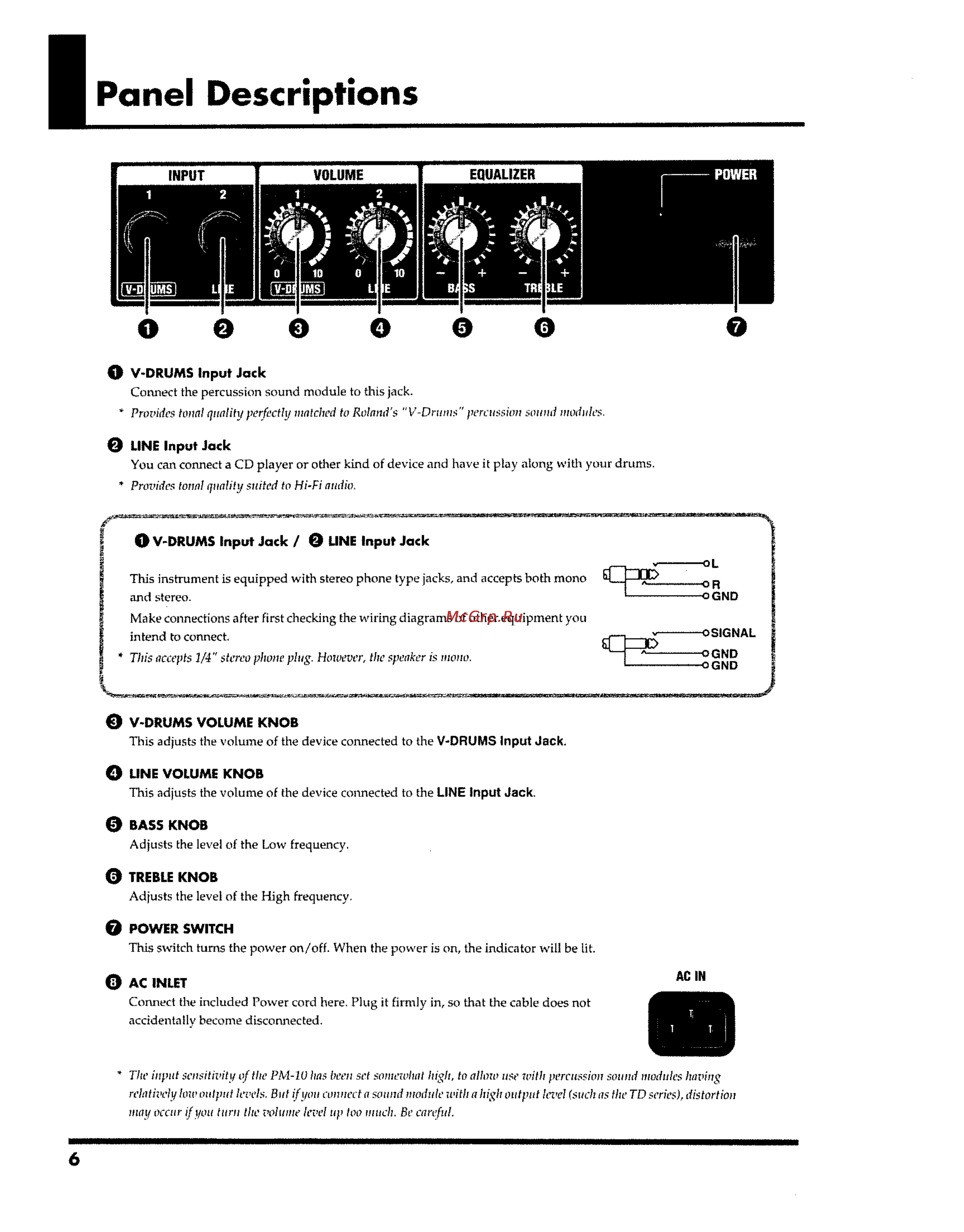

Panel Descriptions O V DRUMS Input Jack Connect the percussion sound module to this jack Provides tonal quality perfectly matched to Roland s V Drums percussion sound modules O LINE Input Jack You can connect a CD player or other kind of device and have it play along with your drums Provides tonal quality suited to Hi Fi audio O V DRUMS Input Jack UNE Input Jack oL This instrument is equipped with stereo phone type jacks and accepts both mono OR OGND and stereo Make connections after first checking the wiring diagrams of other equipment you intend to connect OSIGNAL This accepts 1 4 stereo phone plug However the speaker is mono OGND GND 0 V DRUMS VOLUME KNOB This adjusts the volume of the device connected to the V DRUMS Input Jack 0 UNE VOLUME KNOB This adjusts the volume of the device connected to the LINE Input Jack 0 BASS KNOB Adjusts the level of the Low frequency 0 TREBLE KNOB Adjusts the level of the High frequency O POWER SWITCH This switch turns the power on off When the power is on the indicator will be lit AC INLET AC IN Connect the included Power cord here Plug it firmly in so that the cable does not accidentally become disconnected The input sensitivity of the PM 10 has been set somewhat high to allow use with percussion sound modules having relatively low output levels But if you connect a sound module ivith a high output level such as the TD series distortion may occur if you turn the volume level up loo much Be careful
