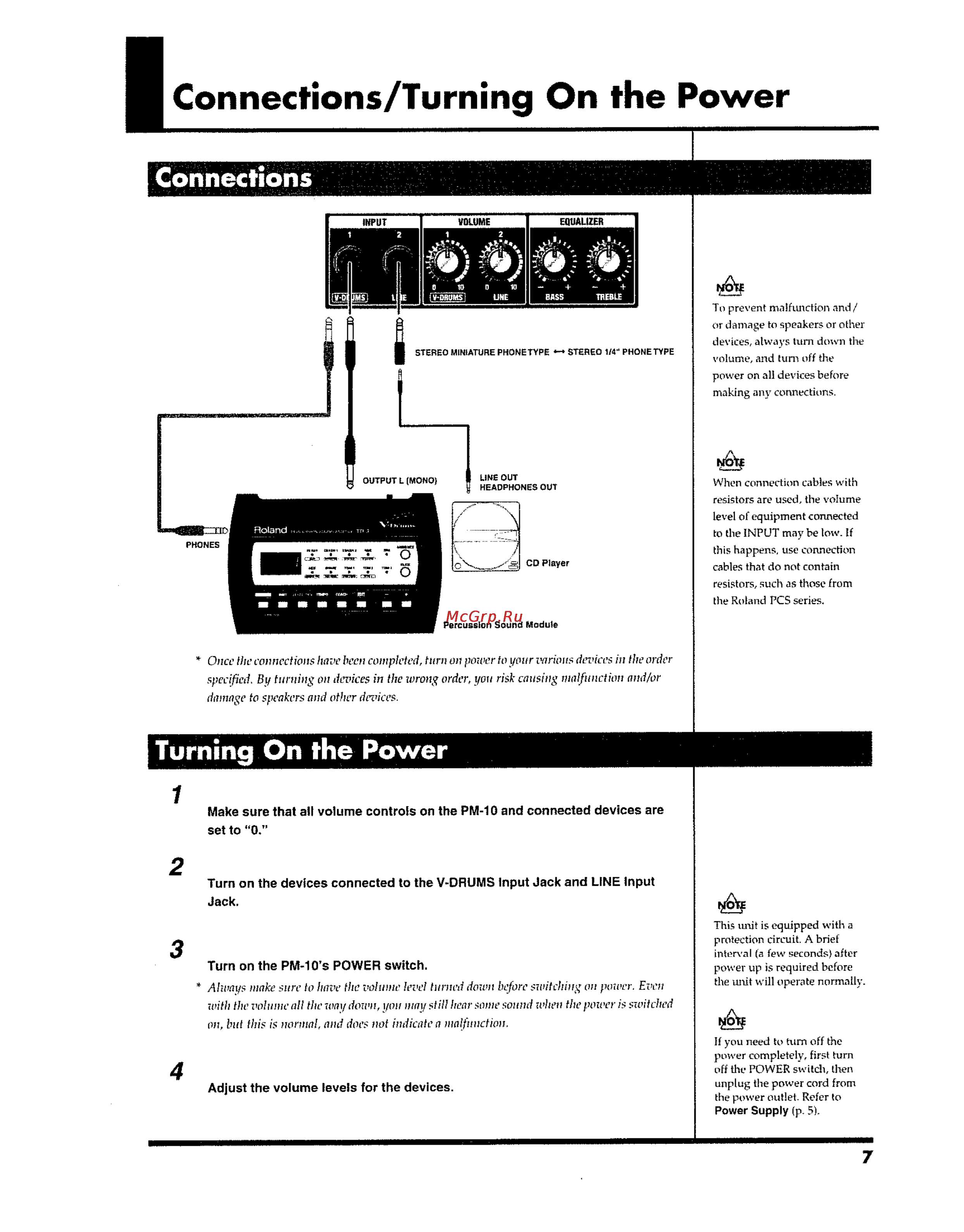

Connections Turning On the Power Connections To prevent malfunction and or damage to speakers or other devices always turn down the volume and turn off the power on all devices before making any connections When connection cables with resistors are used the volume level of equipment connected to the INPUT may be low If this happens use connection cables that do not contain resistors such as those from the Roland PCS series Once the connections have been completed turn on power to your various devices in the order specified By turning on devices in the wrong order you risk causing malfunction and or damage to speakers and other devices Turning On the Power 1 Make sure that all volume controls on the PM 10 and connected devices are set to 0 2 Turn on the devices connected to the V DRUMS Input Jack and LINE Input Jack 3 Turn on the PM 10 s POWER switch Always make sure to have the volume level turned down before switching on power Even This unit is equipped with a protection circuit A brief interval a few seconds after power up is required before the unit will operate normally with the 001111110 all the way down you may still hear some sound when the power is switched on but this is normal and does not indicate a malfiniction 4 Adjust the volume levels for the devices If you need to turn off the power completely first turn off the POWER switch then unplug the power cord from the power outlet Refer to Power Supply p 5
