English-7
English
Contents

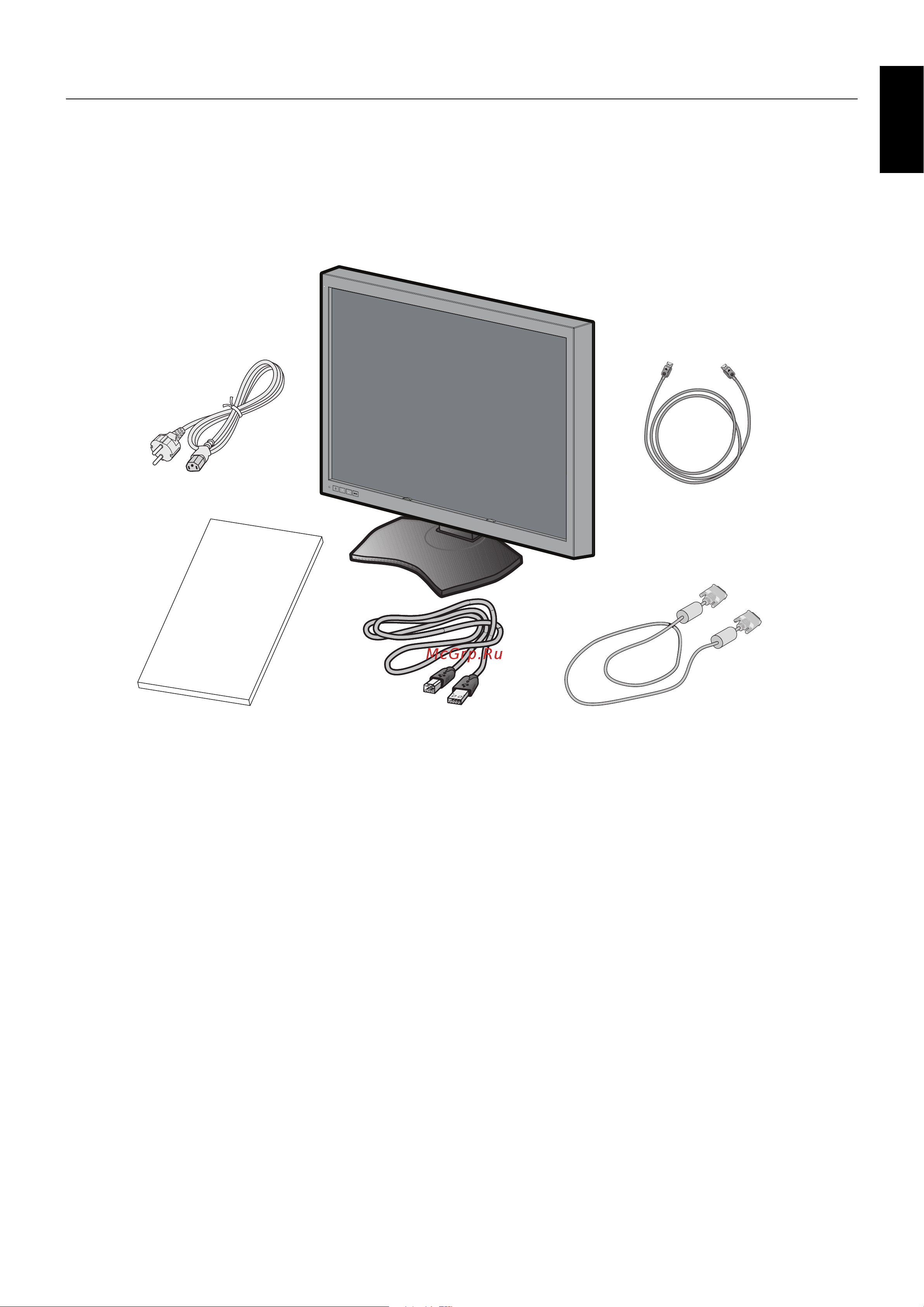

Your new NEC monitor box* should contain the following:
• MD302C6 monitor with tilt/swivel/height adjust stand
• Power Cord
• Video Signal Cable (DVI-D to DVI-D cable)*
1
x 2
• Video Signal Cable (DisplayPort to DisplayPort cable) x 2
• USB Cable
• Quick Reference Guide
Quick Reference Guide DVI-D to DVI-D cable*
1
x 2
DisplayPort cable x 2
Power Cord*
2
Quick Reference
Guide
USB Cable
* Remember to save your original box and packing material to transport or ship the monitor.
*
1
Dual link DVI cable.
*
2
Type and number of power cords included will depend on the where the LCD monitor is to be shipped. When more than one power cord is
included, please use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety
standard of your particular country.
