English-9
English

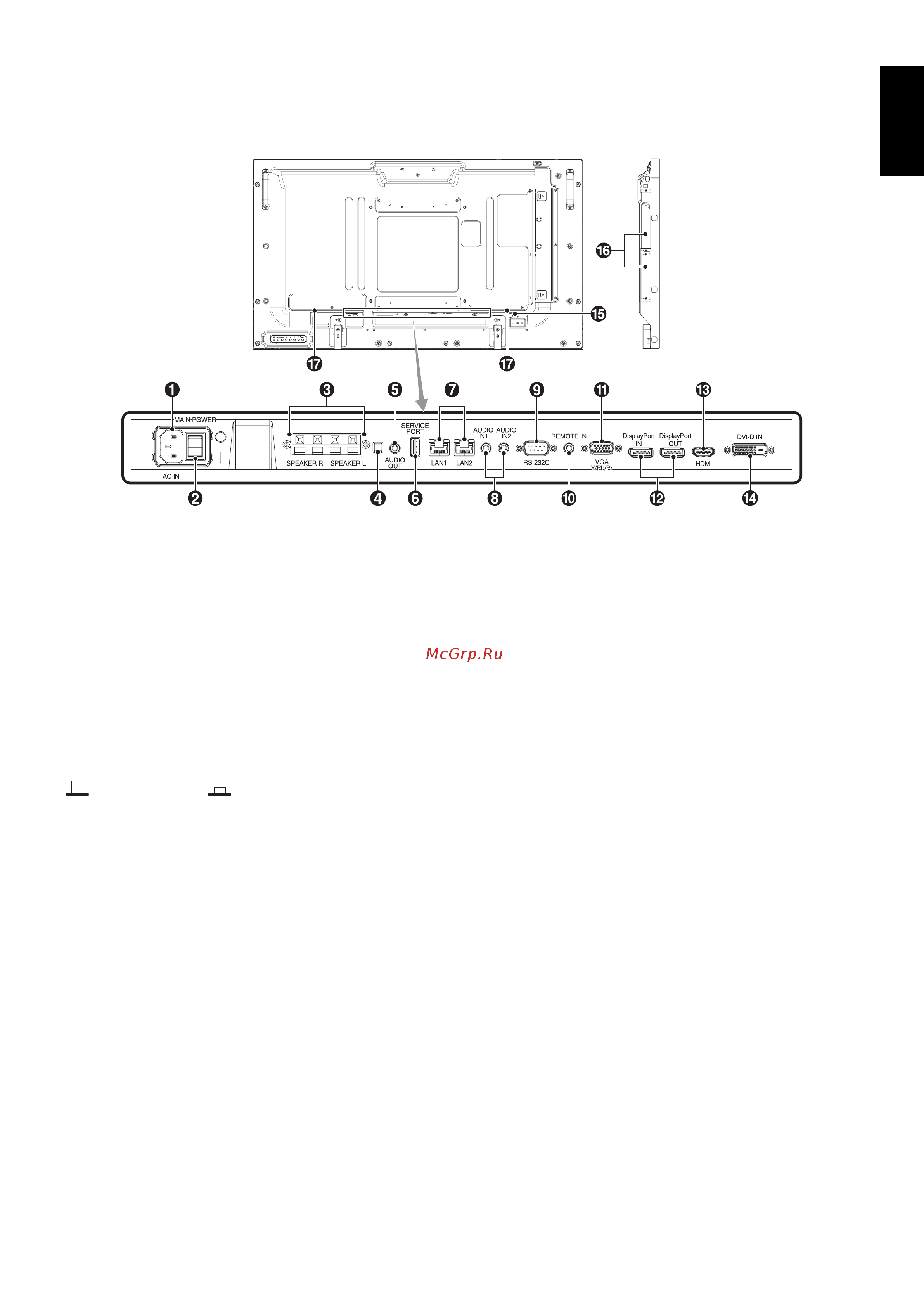

Control and Interface (see attached display manual for details)
Terminal Panel
쐃 AC IN connector
Connects with the supplied power cord.
쐇 Main Power Switch
On/Off switch to turn main power ON/OFF.
쐋 EXTERNAL SPEAKER TERMINAL
To output the audio signal from AUDIO 1, DPORT and HDMI.
Red terminal is plus (+).
Black terminal is minus (-).
Note: This speaker terminal is for 15 W + 15 W (8 ohm)
speaker.
쐏 Internal/External speaker switch
: Internal speaker : External speaker.
NOTE: Please power off the monitor when you use the
Internal/External speaker switch.
쐄 AUDIO OUT
To output the audio signal from the AUDIO IN 1, 2, DPORT
and HDMI to an external device (stereo receiver, amplifi er,
etc.).
쐂 Service port
This USB slot is for future software upgrades.
쐆 LAN port (RJ-45)
LAN connection.
NOTE: Please give priority for use to LAN1.
AUDIO IN 1, 2
To input audio signal from external equipment such as a
computer or DVD player.
쐎 RS-232C (D-Sub 9 pin)
Connect RS-232C input from external equipment such as a PC
in order to control RS-232C functions.
쐅 REMOTE IN
Use the optional wired remote control by connecting it to your
monitor.
NOTE: Do not use this connector unless specifi ed.
쐈 VGA IN (mini D-Sub 15 pin)
To input analog RGB signals from a personal computer or
from other RGB equipment. This input can be used with an
RGB or COMPONENT source. Please select signal type in
TERMINAL SETTING.
NOTE: When you use this connector for COMPONENT,
please use a suitable signal cable. If you have any questions,
please ask your dealer.
쐉 DisplayPort connectors
IN connector: To input DisplayPort signals.
OUT connector: To output signal which is displayed.
To output signal which is displayed as a main picture when
selected PIP mode.
씈 HDMI IN
To input digital HDMI signals.
씉 DVI IN (DVI-D)
To input digital RGB signals from a computer or HDTV device
having a digital RGB output.
* This connector does not support analog input.
씊 Kensington Lock
For security and theft prevention.
씋 Option board slot
Slot 2 and slot 3 type accessories are available.
Please contact your supplier for detailed information.
NOTE: Please contact your supplier for available option board.
씌 Internal speaker
