VOICE SYSTEMS CLUB MINI [7/34] Satellites

OICE SYSTEMS - CLUB MINI - USER’S GUIDE

EENN

SUB: CONTROLS AND CONNECTIONS

1. Level: adjusts INPUT signal level.

2. Status LEDs:

- LIMIT: LED indicating limiter intervention, due to signal over the safety

threshold. If the LED is constantly ON, please reduce incoming signal level.

- TEMP: indicates that the internal amplifier switched to protection mode

due to excessive heating. In this condition, the amplifier supply half the

normal power. Please reduce the input signal to allow the restore of nor-

mal load conditions.

- SIGNAL: flashes when signal is incoming.

- READY: indicates that the speaker is ON and ready.

3. Preset LEDs: indicate which one of the preset is currently in use. To choose a

preset scroll through using the PRESET SELECT switch.

- FLAT: default preset. Provides the maximally flat frequency response.

- VOICE: improves the voice signal for singing, making it brighter and vivid.

- SPEECH: improves the voice signal for speeches, making it clearer and intel-

ligible, by using De-Popping and De-Essing techniques.

- D.BASS: adds a Dynamic Bass Boost. Useful to reinforce Low Frequencies

when playing at low levels.

4. Input (Left & Right): XLR inputs for line signal.

5. Preset Select: switch to select one of the built-in presets. The active preset is in-

dicated by the Preset LEDs.

6. Speaker Out (Left & Right): Speakon outputs to feed the satellites with signal

7. Power on: switch to power ON/OFF.

8. AC Power in: connects to the mains.

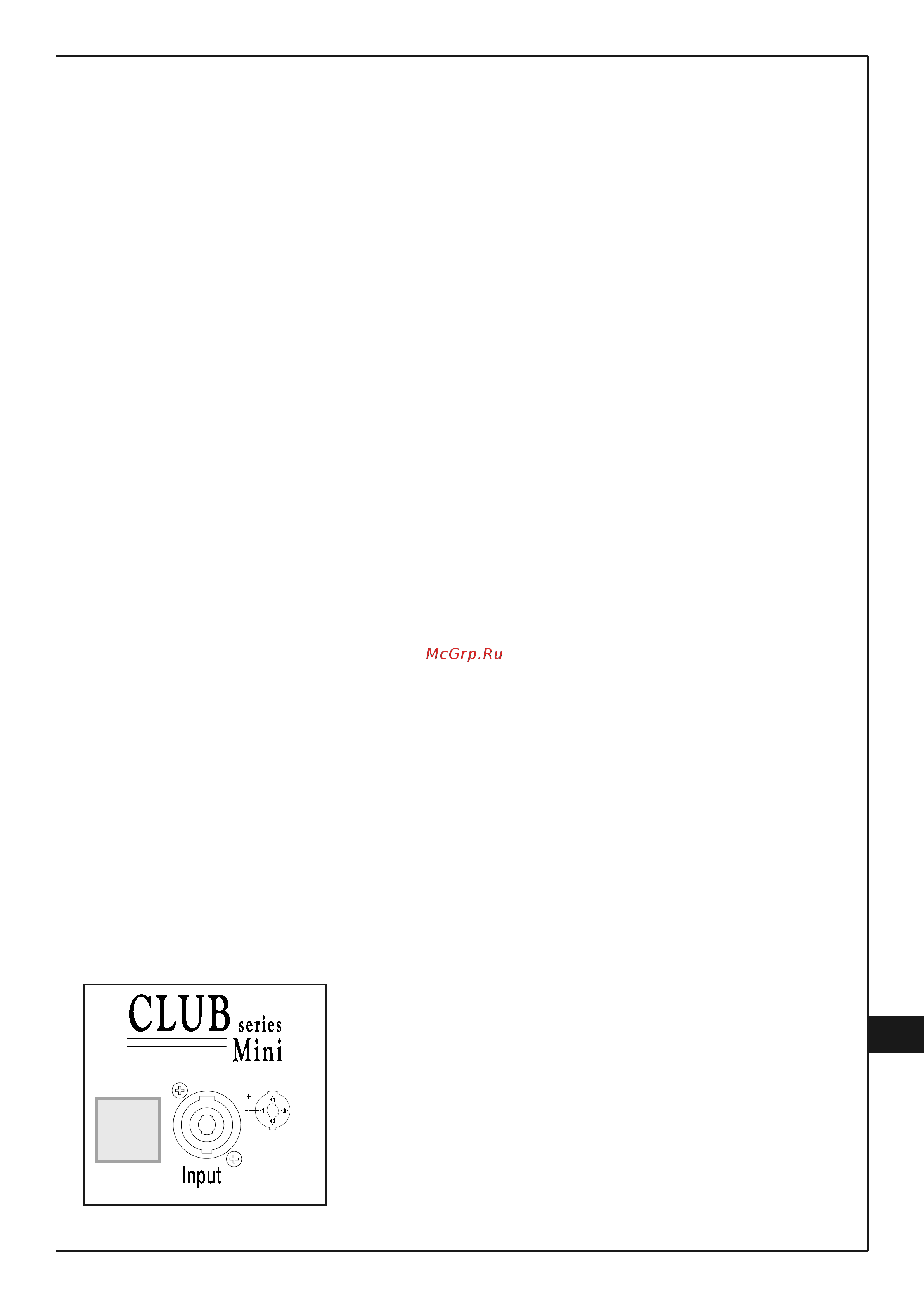

SATELLITES: CONTROLS AND CONNECTIONS

9. Input: Speakon signal input from Sub
