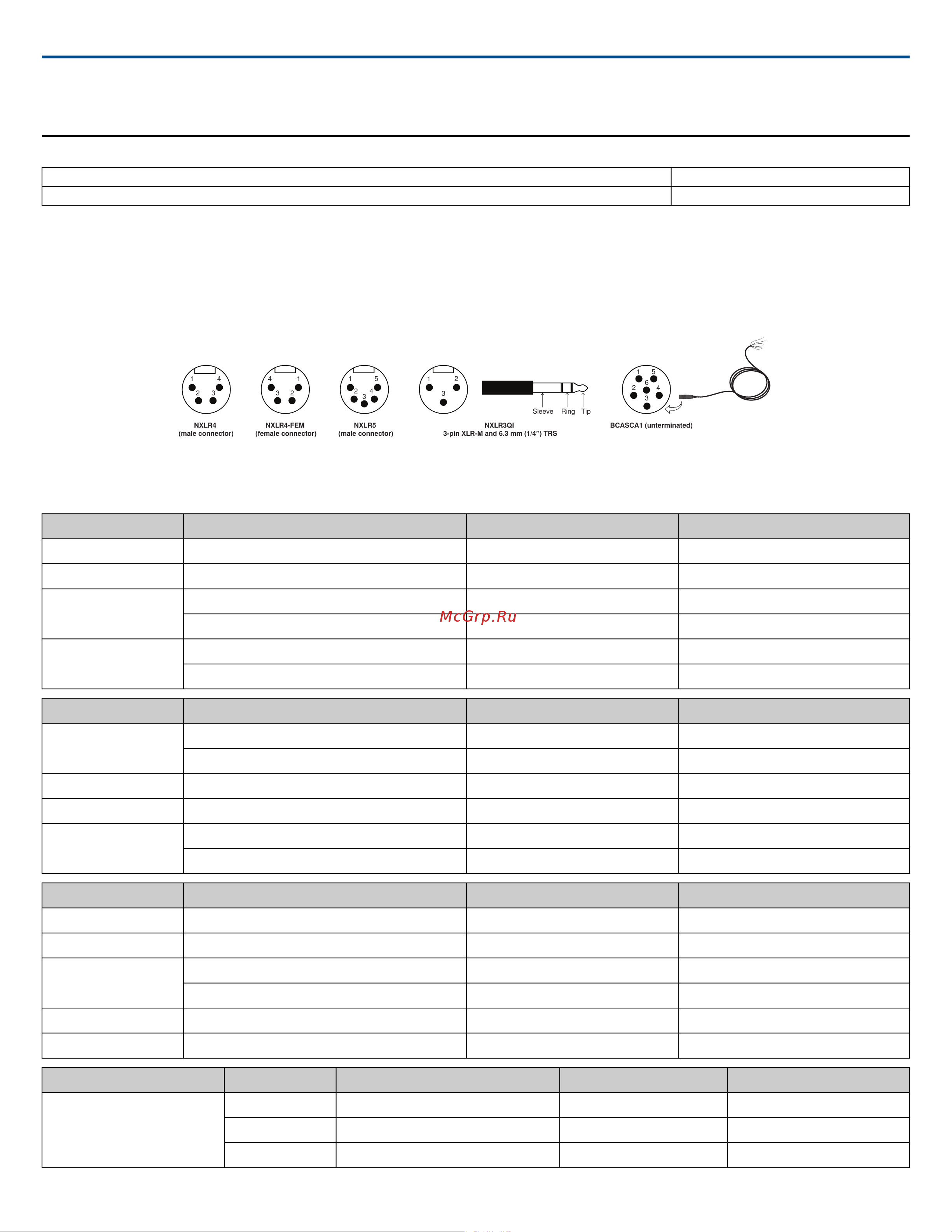

Model Variations
BRH50MBRH50M Dual-Sided Broadcast Headset
BRH50M-LCBRH50M Dual-Sided Broadcast Headset (without cable)
BRH Broadcast Cable Accessories
The following tables describe wiring for BRH detachable cables. All BRH detachable cables contain six conductors with discrete termination at the Shure 6-pin
connector that plugs into the headset. For pre-terminated cables, conductors (and signal) are tied to common contacts at the other end of the cable where shown.
BCASCA1 (unterminated)
1
2
4
3
1
3
2
1 4
32
4
3
2
1 5
NXLR4
(male connector)
NXLR4-FEM
(female connector)
NXLR5
(male connector)
NXLR3QI
3-pin XLR-M and 6.3 mm (1/4”) TRS
Sleeve Ring Tip
4
6
51
2
3
Connector Pin Diagram
6-Pin Headset ConnectorWireSignal4-Pin XLR-M
2BlackMic −1
1RedMic +2
3Shield (uncoated)Mic Ground
3
6WhiteHeadphone Audio Ground
4OrangeHeadphone Audio 1
4
5GreenHeadphone Audio 2 (boom side)
6-Pin Headset ConnectorWireSignal4-Pin XLR-F
2BlackMic −
1
3Shield (uncoated)Mic Ground
1RedMic +2
6WhiteHeadphone Audio Ground3
4OrangeHeadphone Audio 1
4 (thru 47uF cap)
5GreenHeadphone Audio 2 (boom side)
6-Pin Headset ConnectorWireSignal5-Pin XLR-M
2BlackMic −1
1RedMic +2
3Shield (uncoated)Mic Ground
3
6WhiteHeadphone Audio Ground
5GreenHeadphone Audio 2 (boom side)4
4OrangeHeadphone Audio 15
6-Pin Headset ConnectorWireSignalContactConnector
3Shield (uncoated)Mic Ground1
3-Pin XLR-M 1RedMic +2
2BlackMic −3
Shure IncorporatedBRH50M Broadcast Headset
2017/10/234/7
