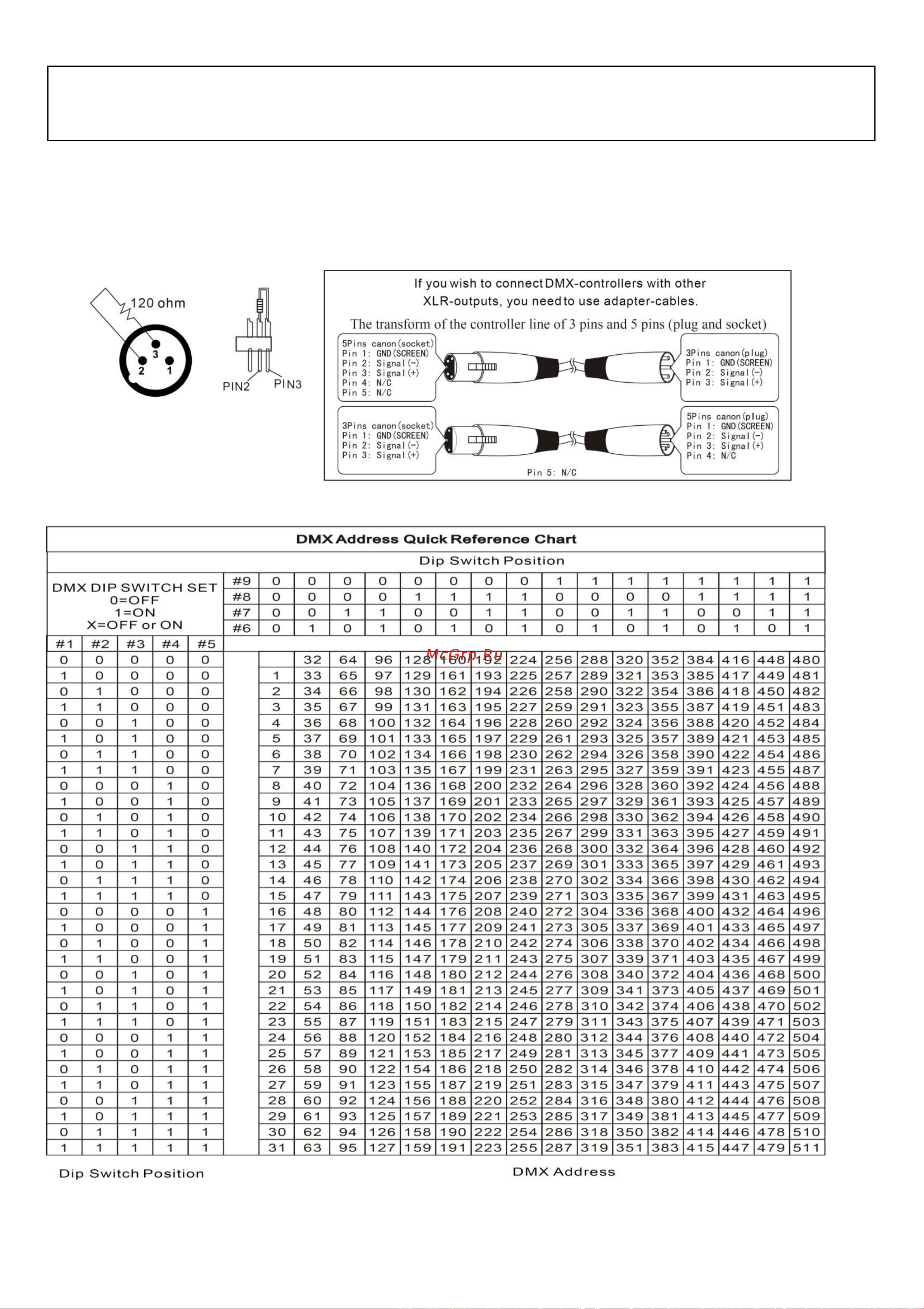

Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120Ω

resistor between Signal (-) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of

the last fixture.

In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX

terminator. This prevents electrical noise from corrupting the DMX control signals. The DMX terminator is

simply an XLR connector with a 120W (ohm) resistor connected across pins 2

and 3, which is then plugged into the output socket on the last projector in the chain.The connections are

illustrated below.

4.3

DMX DIP Switch Quick Reference Chart
