3.6

Playback

3.6.1 Running in Sound mode

Action:

1. Press and hold the MUSIC BANK COPY button until the MUSIC LED is lit

2. Use BANK UP/DOWN buttons to navigate to the bank which is to be run in Sound mode

3. Alternatively, you can press a single CHASE button or several CHASE buttons in sequence and all

Chases will be run in the order selected

4. You can adjust duration time using the FADE TIME fader

Note: In Sound mode, programs will be triggered by the sound using its built-in microphone.

Multiple chases selected will loop and run in the order originally selected.

3.6.2 Running in Auto mode

Action:

1. Press and hold the AUTO/DEL button until the AUTO LED is lit

2. If a CHASE button is not pressed, the DM-X10 will automatically run a BANK program

3. Use BANK UP/DOWN buttons to navigate to the bank which is to be run in Auto mode

4. Alternatively, you can press a single CHASE button or several CHASE buttons in sequence and all

Chases will be run in the order selected

5. You can adjust time between steps using the SPEED fader and duration of the step using the FADE

TIME fader

3.6.3 Blackout

Action:

1. Press the BLACKOUT button to set all DMX values temporarily to 0

APPENDIX

4.1

DMX Primer

There are 512 channels in a DMX-512 connection. Channels may be assigned in any manner. A fixture capable

of receiving DMX 512 will require one or a number of sequential channels. The user must assign a starting

address on the fixture that indicates the first channel reserved in the controller. There are many different

types of DMX controllable fixtures and they all may vary in the total number of channels required. Choosing a

start address should be planned in advance. Channels should never overlap. If they do, this will result in

erratic operation of the fixtures whose starting address is set incorrectly. You can however, control multiple

fixtures of the same type using the same starting address as long as the intended result is that of unison

movement or operation. In other words, the fixtures will be slaved together and all respond exactly the same.

DMX fixtures are designed to receive data through a serial Daisy Chain. A Daisy Chain connection is where the

DATA OUT of one fixture connects to the DATA IN of the next fixture. The order in which the fixtures are

connected is not important and has no effect on how a controller communicates to each fixture. Use an order

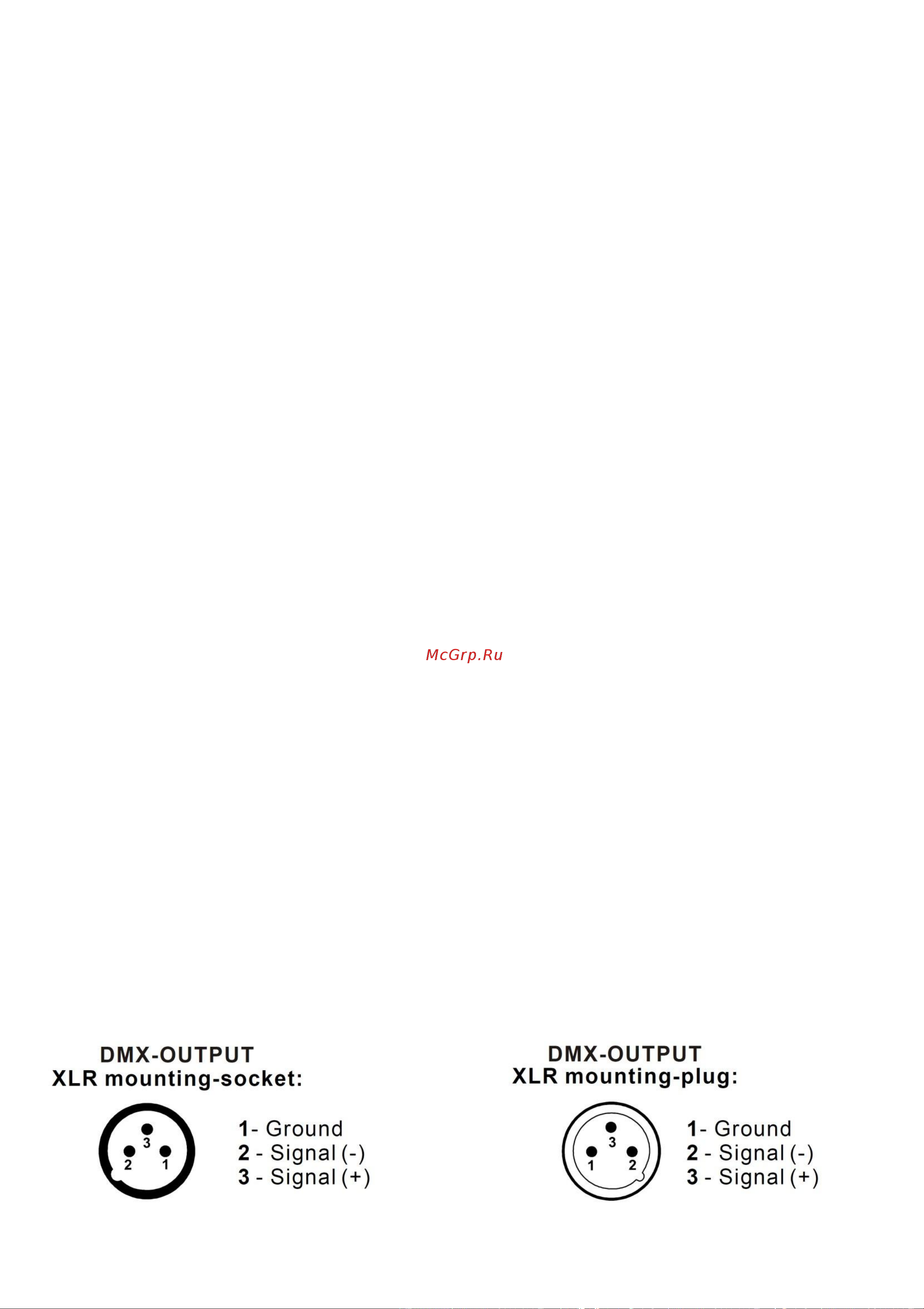

that provides for the easiest and most direct cabling. Connect fixtures using shielded two conductor twisted

pair cable with three pin XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data

Negative (S-) and pin 3 is Data positive (S+).

4.2

Fixture Linking
