RCF M502 [7/32] Installation

ENGLISH

INSTALLATION

Loudspeakers are to be install by qualiﬁed personnel, respecting all safety standards.

Loudspeakers are to be installed securely.

Make sure the support structure (walls / ceilings) has the necessary mechanical

characteristics for the loudspeaker weight, without the risk of a fall that could damage

things or cause an injury.

Use attachments elements suitable for walls / ceilings (e.g. wall plugs for bricks, for

concrete, etc.).

a) HORIZONTAL MOUNTING WITH U BRACKET

Necessary optional accessory:

- AC M501 H-BR (for the M 501 model)

- AC M601 H-BR (for the M 601 model)

- AC M801 H-BR (for the M 801 model)

- AC M502 H-BR (for the M 502 model)

- AC M602 H-BR (for the M 602 model).

Fix the U bracket to the wall / ceiling through at least 4 lateral wall plugs (max. M8) plus

a central one (max. M10).

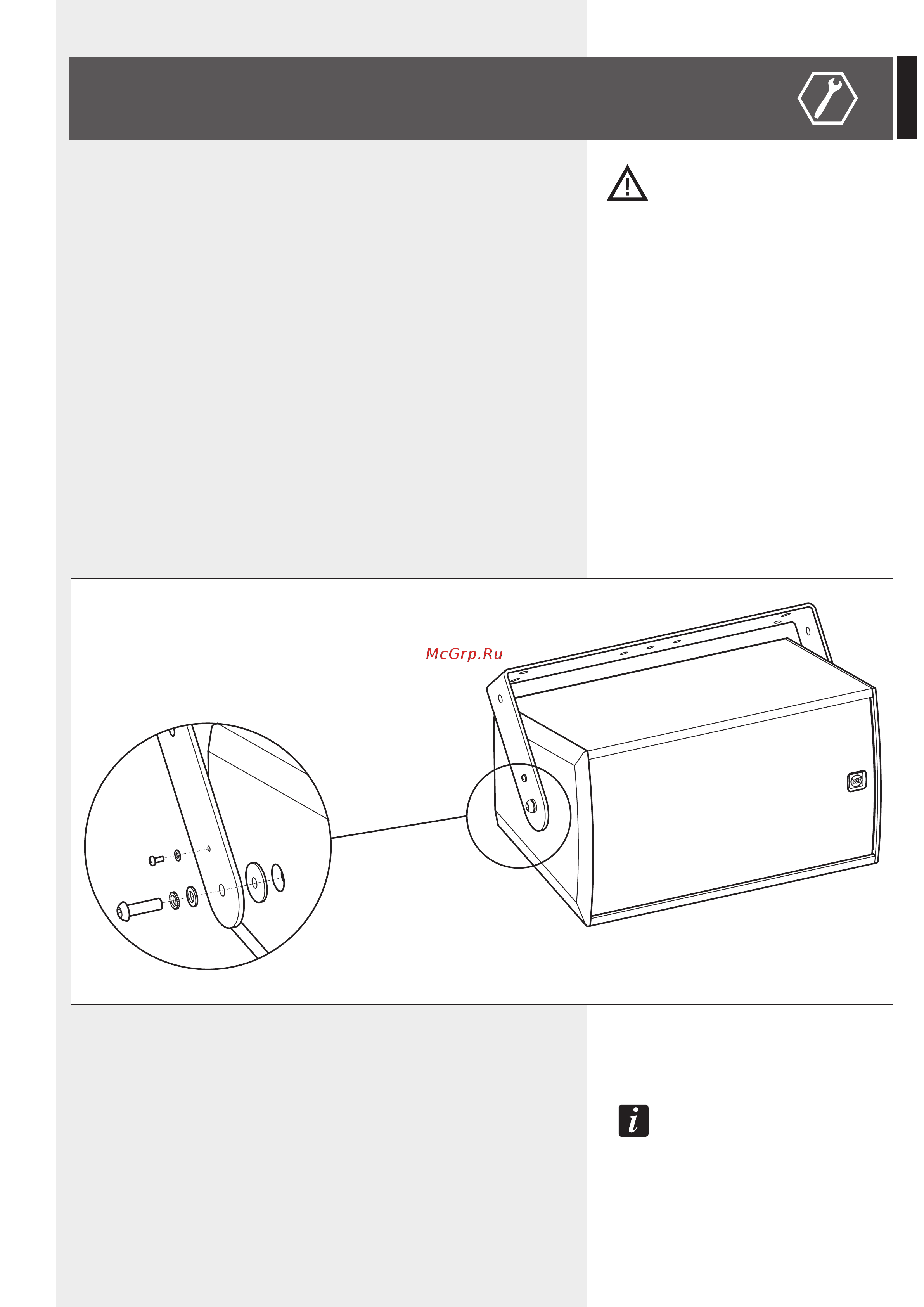

Mount the U bracket to the loudspeaker by tightening the two M10x35 bolts into the holes

of the loudspeaker top and bottom, as shown in the ﬁgure below.

Before tightening the two M10 bolts, adjust the loudspeaker vertical tilt and then ﬁx it

through two M4.2x22 self-threading screws (passing through the small hole of the U

bracket) directly into the loudspeaker cabinet wood.

Note: do Not tilt the loudspeaker upwards!

iNstead of simple m10 bolts, it is possible to use the iNcluded kNobs (haviNg m10 bolts).
