RCF HDL 18-AS [15/20] Array installation

ENGLISH

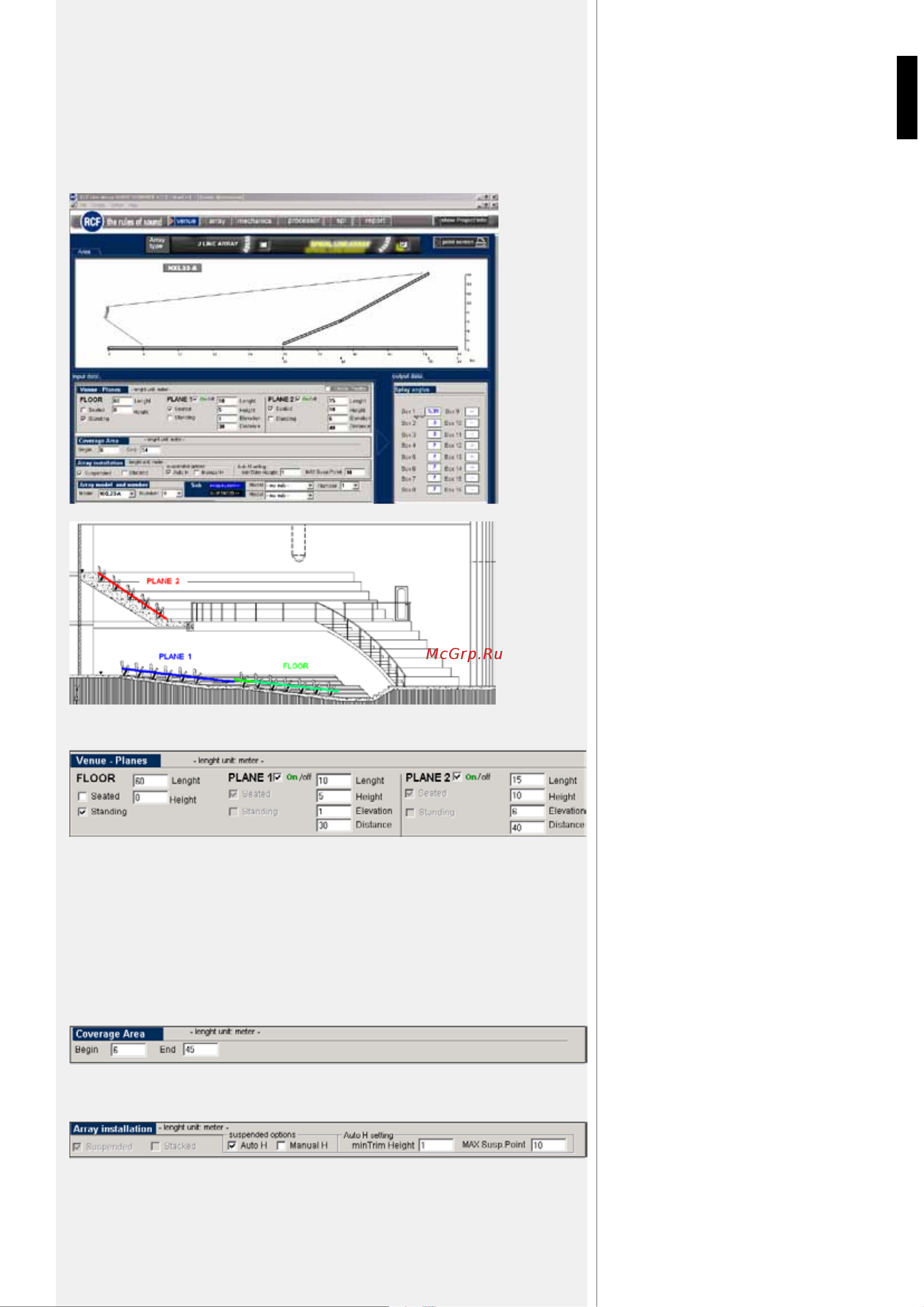

ENTERING VENUE DATA

For best results, planes should be used as follows:

FLOOR is used to simulate the main ﬂoor area from the stage to a rear bleacher or

boundary.

PLANE 1 is used to simulate any audience continuation behind FLOOR (e.g. a rear bleacher)

from the end of the main ﬂoor to furthest and highest seat below PLANE 2.

PLANE 2 is used to simulate the furthest/highest audience area.

Enter the height, length and elevation of up to three planes.

For all planes Length refers to the horizontal length of that plane.

For all planes Height refers to the height of the rear of the plane.

For PLANES 1 and 2 Elevation refers to the elevation (height) of the front of the plane.

For PLANE 1 and 2 Distance relates to the actual distance from the front of the array to the

start of the plane.

For all planes selecting Seated or Standing places ear level at 1.3 or 1.7 m above the

respective plane.

Specify the horizontal coverage distances from the front of the array.

Select either Suspended or Stack in the Array installation section to determines how the

array is supported.

In Suspended mode the grid is suspended and cabinets are attached beneath.

In Stack mode the grid forms a base and cabinets are placed on top.

COVERAGE

ARRAY INSTALLATION
