ConneCTIng The mX300
The MX300 is an extremely versatile effects processor capable of a wide variety of ap-
plications. The MX300’s multiple routings offer several connectivity options, making it
extremely flexible both in the studio and for live sound. The following setups explain
how the MX300 should be connected and which routings apply for your specific effects
processing needs.

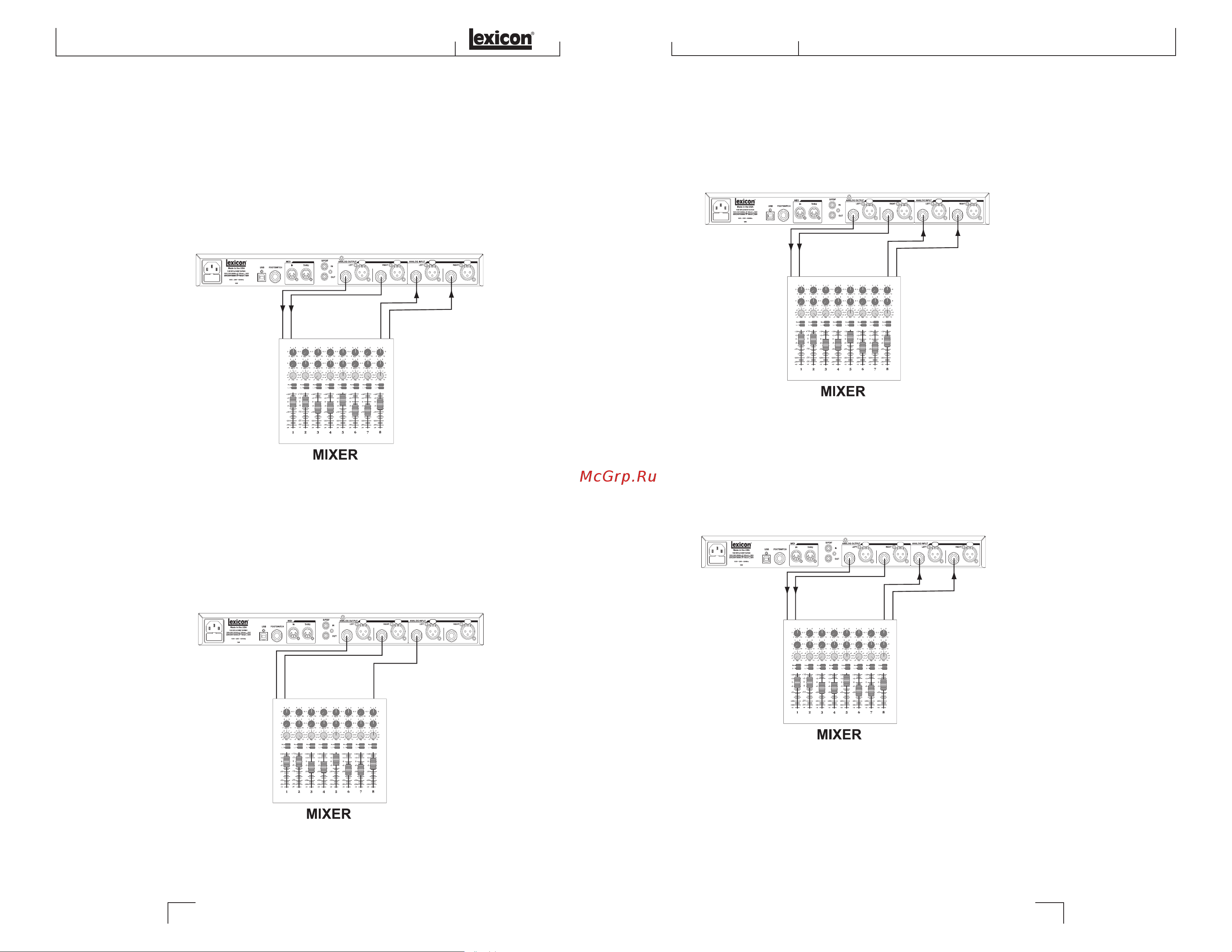

Mixer – Stereo Setup
Aux
Send 1
Aux
Return 1
Aux
Send 2
Aux
Return 2
Stereo Mode configures the MX300 as a single stereo input/output processor. Left and
Right signal separation is maintained through the effects chain. The Input Source
must be set to Anlg Stereo in the System menu (described on page 30). This setup
is ideal for use with programs using Cascade, Parallel, and Stereo routings (see page
16 for more information about routings).
Mixer - Mono In/Stereo Out Setup
Aux
Send 1
Aux
Return 1
Aux
Return 2
This setup is the most commonly used configuration in both live and studio applica-
tions. A single input source is fed into the MX300, processed, and output as a stereo
signal. The Input Source must be set to Anlg Mono L in the System menu
(described on page 30). This setup is ideal for programs using Cascade, Parallel, and
Stereo routings (see page 16 for more information about routings).
Mixer - Dual Mono In/Stereo Out Setup
Aux
Send 1
Aux
Return 1
Aux
Send 2
Aux
Return 2
This setup lets the MX300 act as two effects processors. Separate input sources are fed
into the MX300 and processed independently with different effects, then output as a
mixed stereo signal. The Input Source must be set to Anlg Stereo in the System
menu (described on page 30). This setup is ideal for programs using the Mono Split
routing (see page 16 for more information about routings).
Mixer - Dual Mono In/Out Setup
Aux
Send 1
Aux
Return 1
Aux
Send 2
Aux
Return 2
This setup lets the MX300 act as two effects processors. Separate input sources are
fed into the MX300 and processed independently with different effects, then output
as separate mono signals. The Input Source must be set to Anlg Stereo in the
System menu (described on page 30). This setup is ideal for programs using the Mono
Split routing (see page 16 for more information about routings).
About the MX300
8
