7
Owner’s Manual

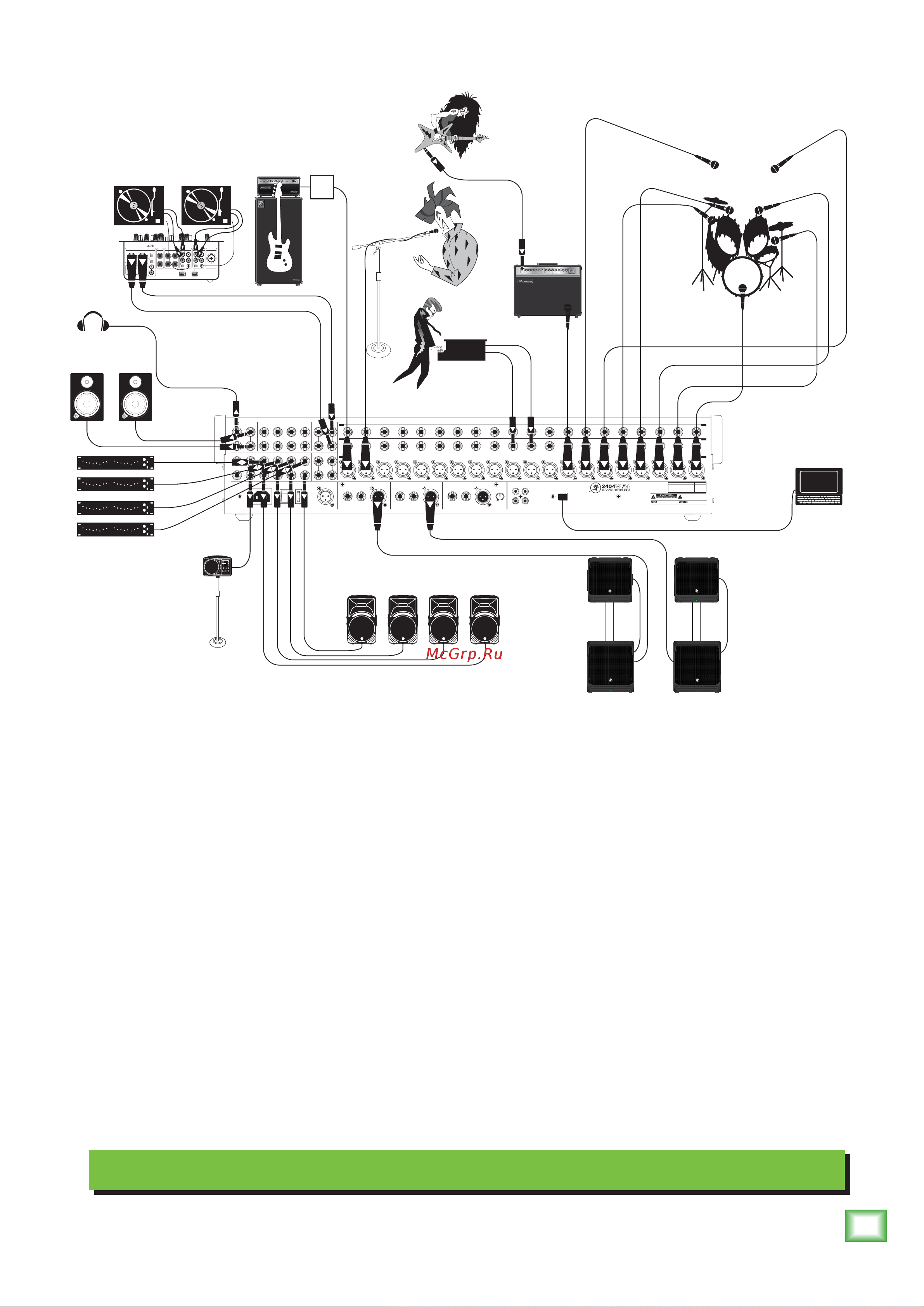

Hookup Diagrams
Typical Live Sound System
The drummer is the mic and channel hog of the band; Dustin has the kick, snare and three toms mic'd
up, in addition to two overhead mics. These run to mic inputs 1-7. desTROYer is rockin' the electric guitar
through an Ampeg GVT52-212 guitar amp. The amp is mic'd and connected to the channel 8 mic input.
Keyboard player Chris is connected to the channel 10 and 11 line inputs...well, Chris isn't connected to
the inputs; his keyboard is! Vocalist Anthony is singing through a mic connected to the mic 19 input. A
bass guitar is connected to an Ampeg rig which is connected (via DI) to the mic 20 input. The last four
mono channels of each 24 and 32-channel VLZ4 4•Bus mixer have built-in compressors, so feel free to
"squeeze" the vocals and bass to heart's desire since they lie here. Last, but not least, a DJ is spinning
records connected (via a d.2 Pro DJ mixer) to the line inputs on stereo channels 21/22. The sound guy
(or gal) may monitor levels using headphones (via the headphones output) and/or a pair of MR8mk3's
connected to the monitor L/R outputs.
Four SRM450v2 powered speakers are used as stage monitors for the band; they are connected to the
aux 1-4 send jacks. An SRM150 powered speaker receives a mono input from the aux 5 send, and is
used as a monitor for Chris (the keyboard player). Graphic EQs are connected to aux inserts 1-4 to help
prevent feedback.
The club is driven by connecting a pair of DLM12S powered subwoofers and a pair of DLM12
powered speakers to the main left and right outputs.
A laptop connects to the mixer via the USB port, allowing the 2-channel main mix to be recorded.
Any music (iTunes
®
, mp3s, or other pre-recorded audio) may be played back from the laptop, as well.
These can enter as either a source for the monitor and phones, or any available channels.
POWER
ON
PHANTOM
ON
3 2 1 2 1
2 1
6 5 4
3 2 16 5 4
3 2 14
SUBGROUP OUTS
BAL / UNBAL
SUBGROUP INSERTS
TIP SEND, RINGRETURN
AUX INSERTS
TIP SEND, RING RETURN
AUX SENDS
BAL / UNBAL
3 2 14
L
R
MONO
L
R
MONO
STEREO RETURNS
BAL / UNBAL
21/22 23/24
BAL / UNBALBAL / UNBAL
MONITOR
MONO
MONITOR
L
R
100 - 240 V
50 - 60 Hz 55W
TALKBACK
MIC
RIGHT
MAIN OUT
INSERT LINE
LEFT
MAIN OUT
INSERT LINE
MONO
MAIN OUT
INSERT LINE
LEVEL
OUTPUT
L
USB
R
L
R
TAPE
OUTIN
TIP SEND
RING RETURN
TIP SEND
RING RETURN
TIP SEND
RING RETURN
BAL / UNBAL BAL / UNBAL BAL / UNBAL
20
20
20
19
19
19
18
18
18
17
17
17
16
16
16
15
15
15
14
14
14
13
13
13
12
12
12
11
11
11
10
10
10
9
9
9
8
8
8
7
7
7
6
6
6
5
5
5
4
4
4
3
3
3
2
2
2
1
1
1
ONYX MIC PREAMPS
LINE (BAL / UNBAL)
INSERTS (TIP SEND, RING RETURN)
LINE (BAL / UNBAL)
INSERTS (TIP SEND, RING RETURN)
ONYX MIC PREAMPS
UNBALANCED
REVISION
SERIAL NUMBER
REPLACE WITH THE SAME TYPE FUSE AND RATING.
DISCONNECT SUPPLY CORD BEFORE CHANGING FUSE
UTILISE UN FUSIBLE DE RECHANGE DE MÊME TYPE.
DEBRANCHER AVANT DE REMPLACER LE FUSIBLE
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE. DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
AVIS:
RISQUE DE CHOC ELECTRIQUE — NE PAS OUVRIR
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES FOR THE U.S. AND THE ICES-003 FOR CANADA. OPERATION
IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE
UNDESIRED OPERATION.
+6
U
power
input
reverb mastergain treble middle
bass
volume channel
1
1
2
gain treble middle bass volume
2
off
on
standby
TDSK
half
full
1
2
3
4
hi
lo
ultra hi / lo
5
master standby
standby/
power/
fault
powertreblefrequencymidrangebassgain
-15dB0dB
ks
pb
no
jd
pa
jh
LINE
MIC
R R
PGM 2
MAIN OUT MIC
L LLLL R
PHONO CD
SEND
R
BOOTH
FX
GND
LINE
PHONO
RETURN
L(MONO)
RR
L
R
LIVE
RECORD
PGM 1
LINE
PHONO
GND
PHONO CD
R R
LL
DLM12
Powered
Speaker
DLM12
Powered
Speaker
DLM12S
Powered
Subwoofer
DLM12S
Powered
Subwoofer
Laptop
Computer
with audio
production
software
Headphones
Turntables with phono-level output
d.2 Pro DJ mixer
MR8mk3
Powered Reference
Monitors L/R
SRM450v2 Powered Speakers
for Stage Monitors (Aux Sends 1-4)
Chris
on keys
Francis
on bass
DI
Box
Dustin
on drums
desTROYer
on six-string
Anthony on
lead vox
Monitor EQ
(Aux Inserts 1-4)
SRM150
Powered Monitor
for keyboard player
(Aux Send 5)
