LINE 6 XD-AD8 Splitter [5/12] Xd ad8
![LINE 6 XD-AD8 Splitter [5/12] Xd ad8](/views2/1989822/page5/bg5.png)
5

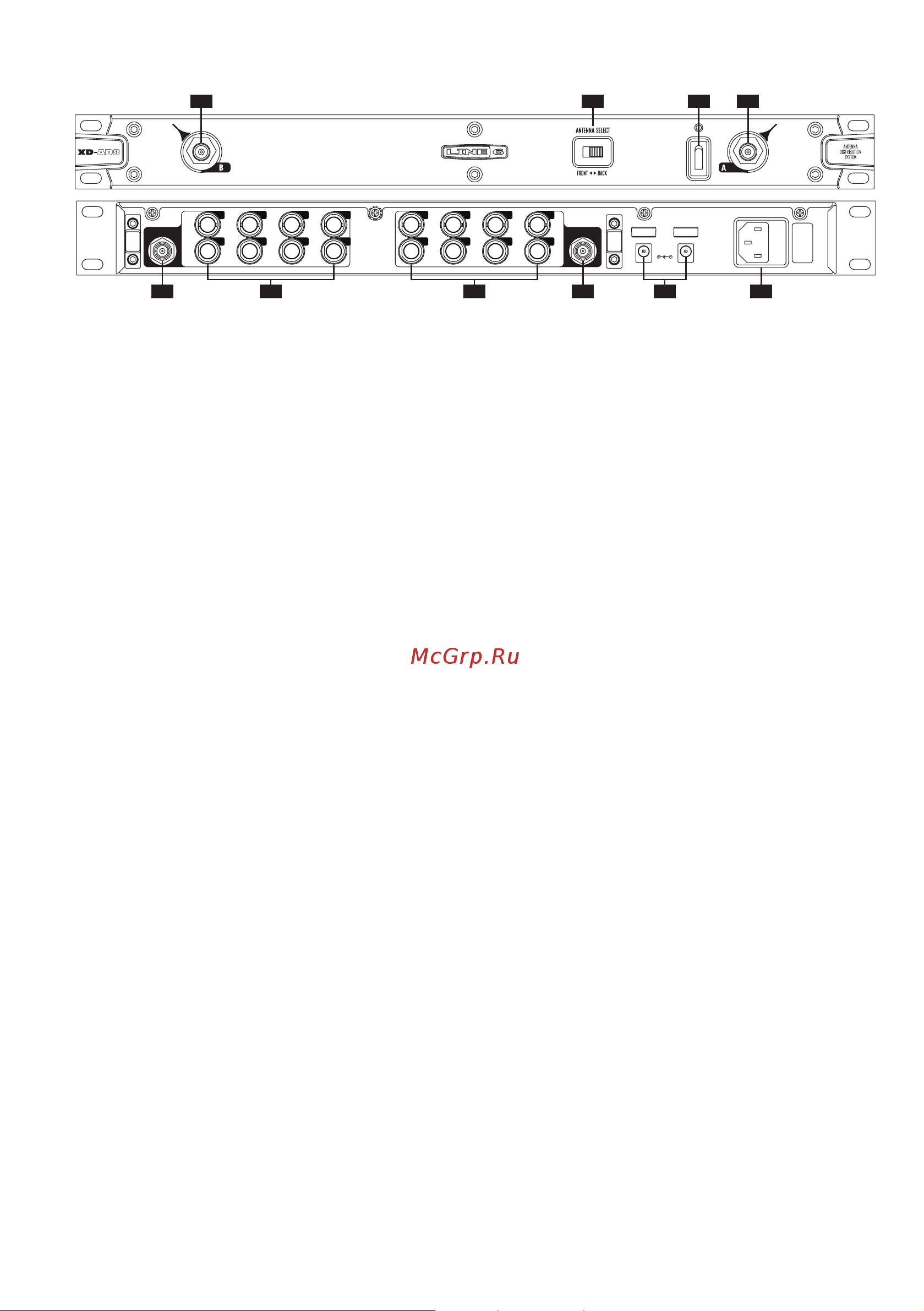

Xd-Ad8 QuiCk Setup
7
86
9 10
1
2 3
4
5
ANTENNA A ANTENNA B
1 2 3 4 21 3 4
65 7 8
65 7 8
90 - 250V
~
50 - 60Hz
10 W Max.
DC OUTS
9V 4 Amps
1. Front Antenna B BNC connector
2. Antenna Select –
Switch from front or back pair
3. Power – Toggle switch and LED
4. Front Antenna A BNC connector
5. Rear Antenna A BNC connector
6. Antenna A Distribution Connectors –
Eight BNC distribution connectors for Antenna A
7. Antenna B Distribution Connectors – Eight BNC distribution connectors for Antenna B
8. Rear Antenna B BNC connector
9. 9v DC Power –
Two output connectors to power receivers (use supplied cables)
10. IEC Power Connector – Use a grounded 3-prong IEC power cable (powers the XD-AD8)
•Connect the XD-AD8 antenna distribution system to a power source, 90 – 260 VAC, 50 – 60
Hz.
•Attach one end of the supplied receiver power distribution cables to the
9v DC Power
connectors on the rear panel of the XD-AD8, and plug the remaining barrel connectors into
up to four Line 6 receivers; repeat with the second supplied cable for up to four more receivers.
•Using 50 ohm BNC-to-BNC cables, connect the rear panel
Antenna A and Antenna B
Distribution Connectors – beginning with the connectors labeled “1” – to the Antenna A and
Antenna B inputs of up to eight Line 6 receivers.
•Attach Line 6 rubber duck, directional or omnidirectional remote antennas to the rear
panel
In A and In B BNC connectors, and place them in line-of-sight with the area(s) where
transmitters will be used.
•Connect supplied 50 ohm terminators to any unused
Antenna A and Antenna B distribution
connectors.
•Move the front-panel
Antenna Select slide switch to Back; alternately, use the front panel
connectors for the antennas and move the switch to Front.
•Turn on the antenna distribution system
Power, and check that it and all connected receivers
and antennas are receiving power.
•Turn on the transmitters in the performing area, and check for coverage and that all receivers
have signal from the transmitters; reposition antennas as necessary.
Note, The antenna distribution system and above setup procedure is typically used for rack-mounted
wireless systems, in either a fixed or portable application.
Note, The XD-AD8 antenna distribution system is for use with XD-V75, XD-V55, and XD-V70 digital
wireless microphone systems, and the Relay G50, Relay G55 or Relay G90 digital wireless guitar system.
