PS 112 | 212

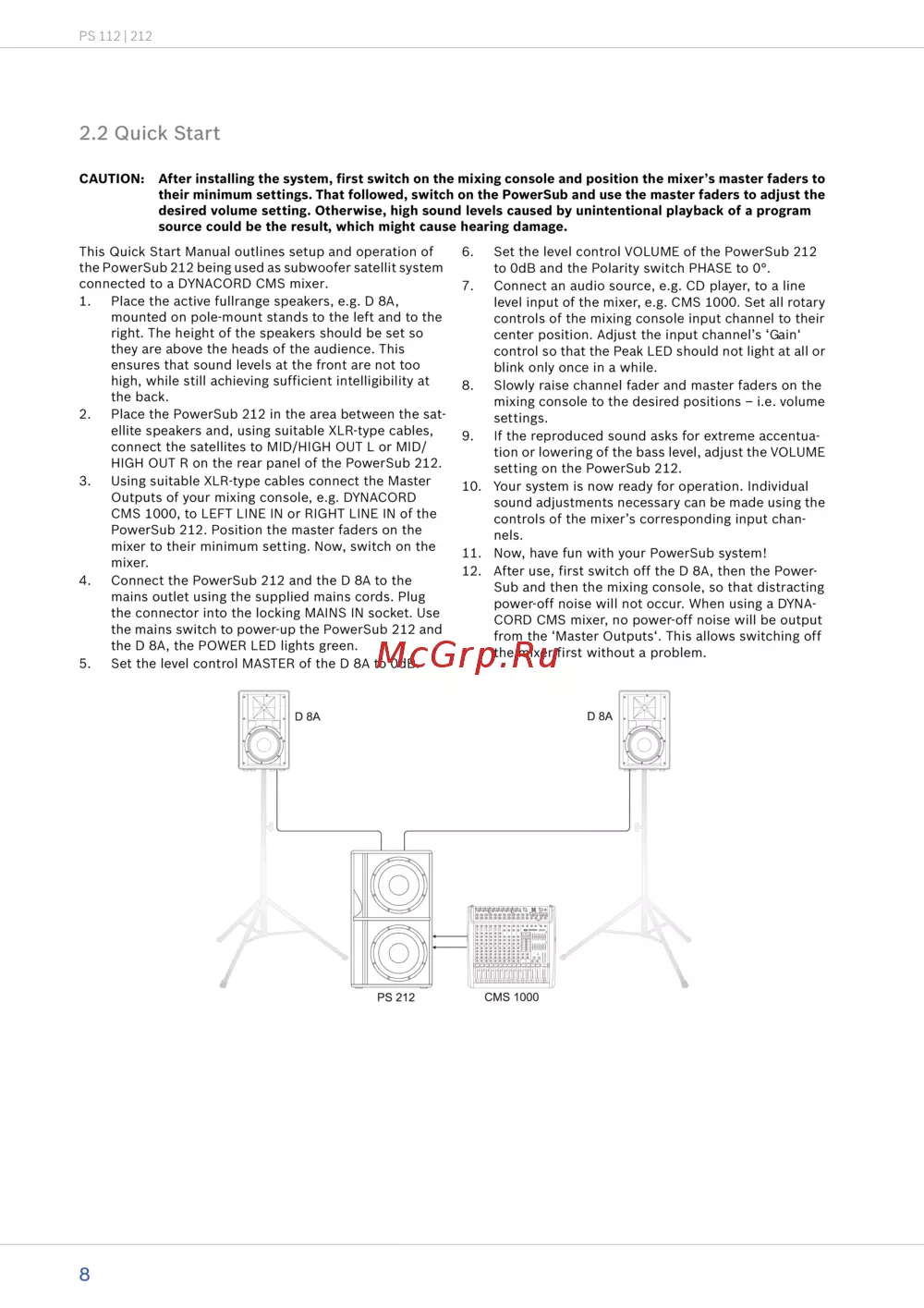

2.2 Quick Start

CAUTION: After installing the system, first switch on the mixing console and position the mixer’s master faders to

their minimum settings. That followed, switch on the PowerSub and use the master faders to adjust the

desired volume setting. Otherwise, high sound levels caused by unintentional playback of a program

source could be the result, which might cause hearing damage.

This Quick Start Manual outlines setup and operation of

the PowerSub 212 being used as subwoofer satellit system

connected to a DYNACORD CMS mixer.

1. Place the active fullrange speakers, e.g. D 8A,

mounted on pole-mount stands to the left and to the

right. The height of the speakers should be set so

they are above the heads of the audience. This

ensures that sound levels at the front are not too

high, while still achieving sufficient intelligibility at

the back.

2. Place the PowerSub 212 in the area between the sat-

ellite speakers and, using suitable XLR-type cables,

connect the satellites to MID/HIGH OUT L or MID/

HIGH OUT R on the rear panel of the PowerSub 212.

3. Using suitable XLR-type cables connect the Master

Outputs of your mixing console, e.g. DYNACORD

CMS 1000, to LEFT LINE IN or RIGHT LINE IN of the

PowerSub 212. Position the master faders on the

mixer to their minimum setting. Now, switch on the

mixer.

4. Connect the PowerSub 212 and the D 8A to the

mains outlet using the supplied mains cords. Plug

the connector into the locking MAINS IN socket. Use

the mains switch to power-up the PowerSub 212 and

the D 8A, the POWER LED lights green.

5. Set the level control MASTER of the D 8A to 0dB.

6. Set the level control VOLUME of the PowerSub 212

to 0dB and the Polarity switch PHASE to 0°.

7. Connect an audio source, e.g. CD player, to a line

level input of the mixer, e.g. CMS 1000. Set all rotary

controls of the mixing console input channel to their

center position. Adjust the input channel’s ‘Gain‘

control so that the Peak LED should not light at all or

blink only once in a while.

8. Slowly raise channel fader and master faders on the

mixing console to the desired positions – i.e. volume

settings.

9. If the reproduced sound asks for extreme accentua-

tion or lowering of the bass level, adjust the VOLUME

setting on the PowerSub 212.

10. Your system is now ready for operation. Individual

sound adjustments necessary can be made using the

controls of the mixer’s corresponding input chan-

nels.

11. Now, have fun with your PowerSub system!

12. After use, first switch off the D 8A, then the Power-

Sub and then the mixing console, so that distracting

power-off noise will not occur. When using a DYNA-

CORD CMS mixer, no power-off noise will be output

from the ‘Master Outputs‘. This allows switching off

the mixer first without a problem.
