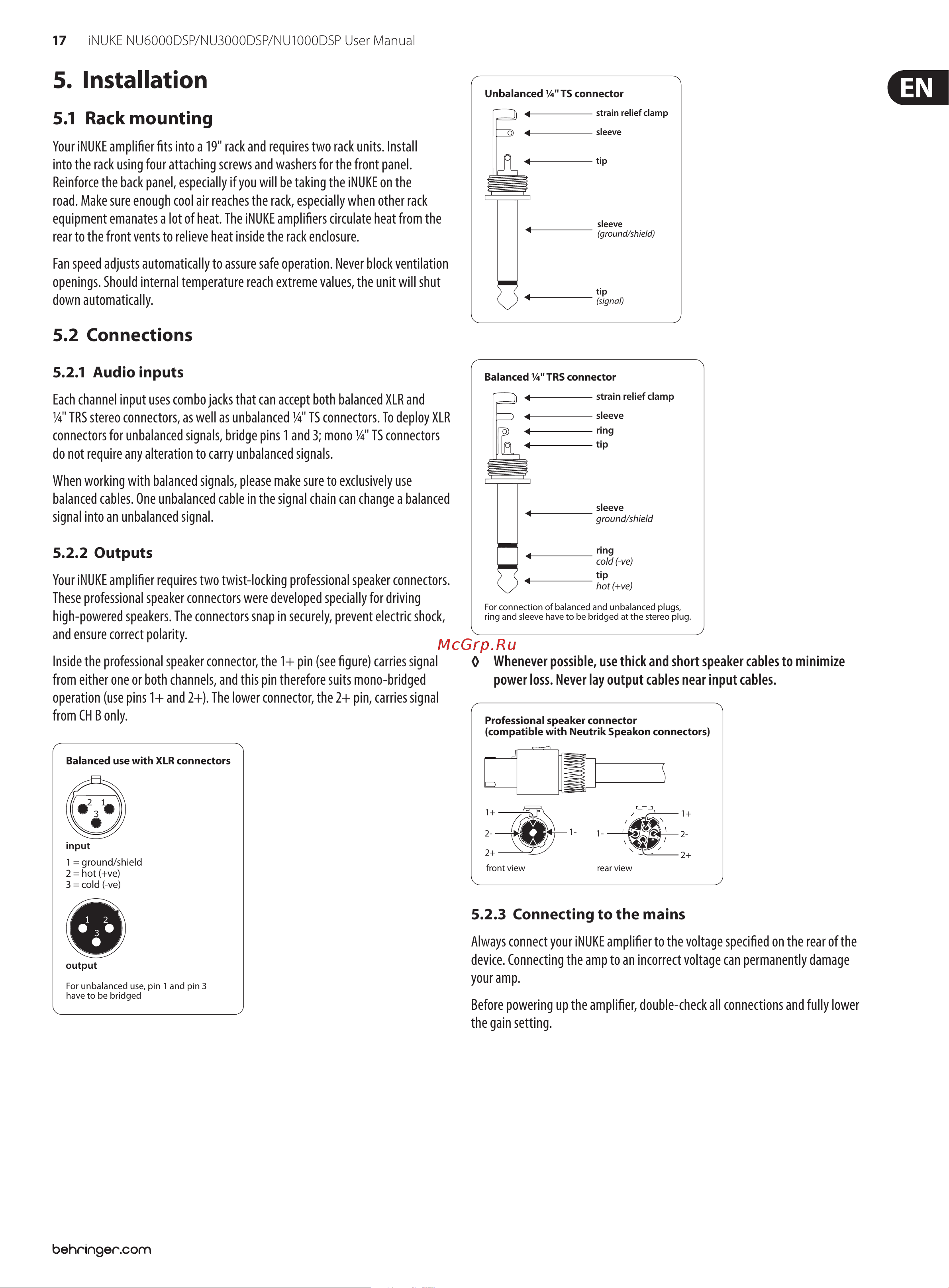

17 iNUKE NU6000DSP/NU3000DSP/NU1000DSP User Manual
5. Installation
5.1 Rack mounting
Your iNUKE amplier ts into a 19" rack and requires two rack units. Install
into the rack using four attaching screws and washers for the front panel.
Reinforce the back panel, especially if you will be taking the iNUKE on the
road. Make sure enough cool air reaches the rack, especially when other rack
equipment emanates a lot of heat. The iNUKE ampliers circulate heat from the
rear to the front vents to relieve heat inside the rack enclosure.
Fan speed adjusts automatically to assure safe operation. Never block ventilation
openings. Should internal temperature reach extreme values, the unit will shut
down automatically.
5.2 Connections
5.2.1 Audio inputs
Each channel input uses combo jacks that can accept both balanced XLR and
¼" TRS stereo connectors, as well as unbalanced ¼" TS connectors. To deploy XLR
connectors for unbalanced signals, bridge pins 1 and 3; mono ¼" TS connectors
do not require any alteration to carry unbalanced signals.
When working with balanced signals, please make sure to exclusively use
balanced cables. One unbalanced cable in the signal chain can change a balanced
signal into an unbalanced signal.
5.2.2 Outputs
Your iNUKE amplier requires two twist-locking professional speaker connectors.
These professional speaker connectors were developed specially for driving
high-powered speakers. The connectors snap in securely, prevent electric shock,
and ensure correct polarity.
Inside the professional speaker connector, the 1+ pin (see gure) carries signal
from either one or both channels, and this pin therefore suits mono-bridged
operation (use pins 1+ and 2+). The lower connector, the 2+ pin, carries signal
from CH B only.
output
For unbalanced use, pin 1 and pin 3
have to be bridged
1 = ground/shield
2 = hot (+ve)
3 = cold (-ve)
input
12
3
1
2
3
Balanced use with XLR connectors
strain relief clamp
sleeve
tip
sleeve
(ground/shield)
Unbalanced ¼" TS connector
tip
(signal)
◊ Whenever possible, use thick and short speaker cables to minimize
power loss. Never lay output cables near input cables.
5.2.3 Connecting to the mains
Always connect your iNUKE amplier to the voltage specied on the rear of the
device. Connecting the amp to an incorrect voltage can permanently damage
your amp.
Before powering up the amplier, double-check all connections and fully lower
the gain setting.
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
For connection of balanced and unbalanced plugs,
ring and sleeve have to be bridged at the stereo plug.
Balanced ¼" TRS connector
ring
cold (-ve)
tip
hot (+ve)
1-
2-
2+
1+
1-
2-
2+
1+
front view rear view
Professional speaker connector
(compatible with Neutrik Speakon connectors)
