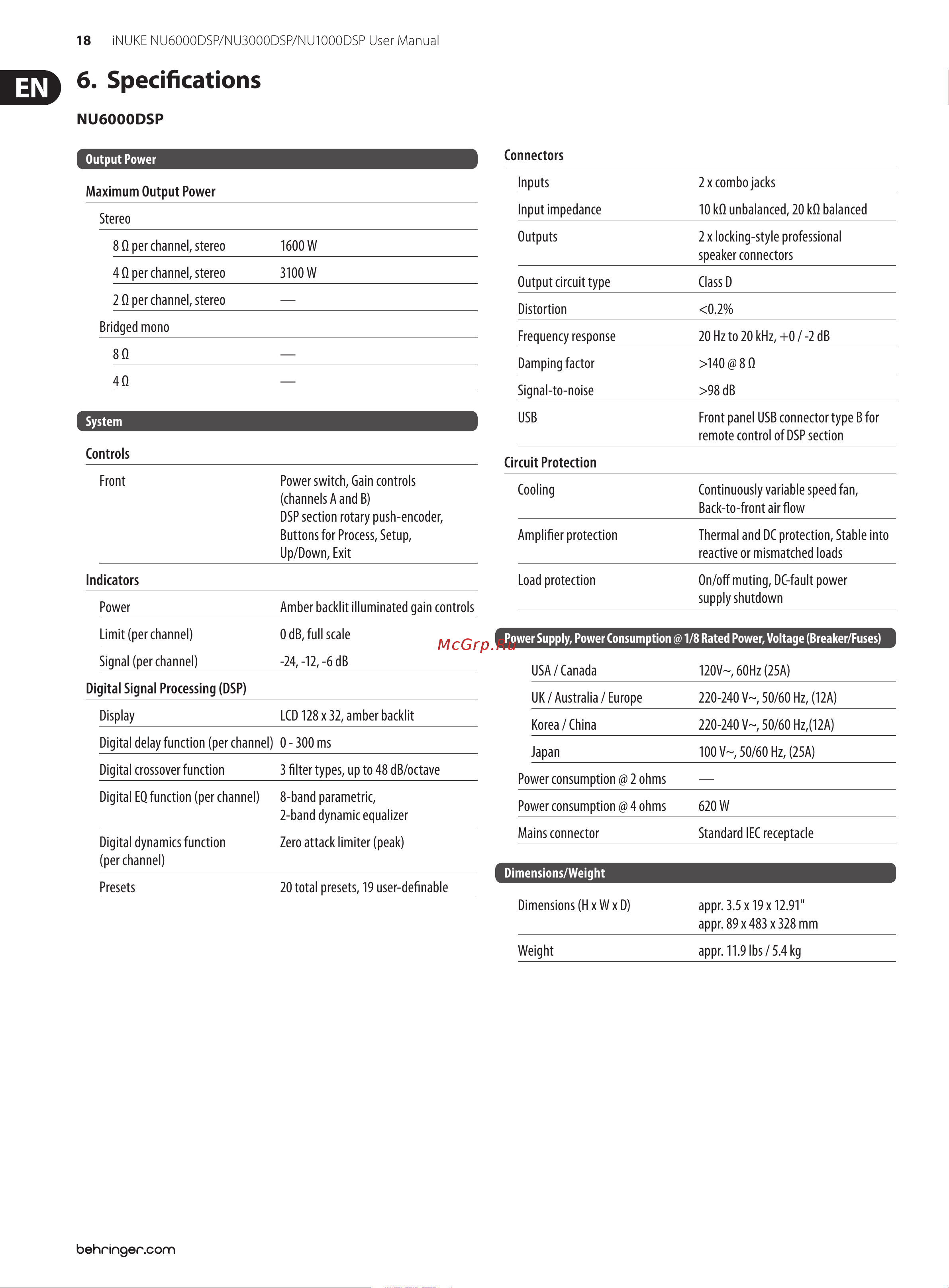

18 iNUKE NU6000DSP/NU3000DSP/NU1000DSP User Manual
6. Specications
NU6000DSP
Output Power
Maximum Output Power
Stereo
8 Ω per channel, stereo 1600 W
4 Ω per channel, stereo 3100 W
2 Ω per channel, stereo —
Bridged mono
8 Ω —
4 Ω —
System
Controls
Front Power switch, Gain controls
(channels A and B)
DSP section rotary push-encoder,
Buttons for Process, Setup,
Up/Down, Exit
Indicators
Power Amber backlit illuminated gain controls
Limit (per channel) 0 dB, full scale
Signal (per channel) -24, -12, -6 dB
Digital Signal Processing (DSP)
Display LCD 128 x 32, amber backlit
Digital delay function (per channel) 0 - 300 ms
Digital crossover function 3 lter types, up to 48 dB/octave
Digital EQ function (per channel) 8-band parametric,
2-band dynamic equalizer
Digital dynamics function Zero attack limiter (peak)
(per channel)
Presets 20 total presets, 19 user-denable
Connectors
Inputs 2 x combo jacks
Input impedance 10 kΩ unbalanced, 20 kΩ balanced
Outputs 2 x locking-style professional
speaker connectors
Output circuit type Class D
Distortion <0.2%
Frequency response 20 Hz to 20 kHz, +0 / -2 dB
Damping factor >140 @ 8 Ω
Signal-to-noise >98 dB
USB Front panel USB connector type B for
remote control of DSP section
Circuit Protection
Cooling Continuously variable speed fan,
Back-to-front air ow
Amplier protection Thermal and DC protection, Stable into
reactive or mismatched loads
Load protection On/o muting, DC-fault power
supply shutdown
Power Supply, Power Consumption @ 1/8 Rated Power, Voltage (Breaker/Fuses)
USA / Canada 120V~, 60Hz (25A)
UK / Australia / Europe 220-240 V~, 50/60 Hz, (12A)
Korea / China 220-240 V~, 50/60 Hz,(12A)
Japan 100 V~, 50/60 Hz, (25A)
Power consumption @ 2 ohms —
Power consumption @ 4 ohms 620 W
Mains connector Standard IEC receptacle
Dimensions/Weight
Dimensions (H x W x D) appr. 3.5 x 19 x 12.91"
appr. 89 x 483 x 328 mm
Weight appr. 11.9 lbs / 5.4 kg
