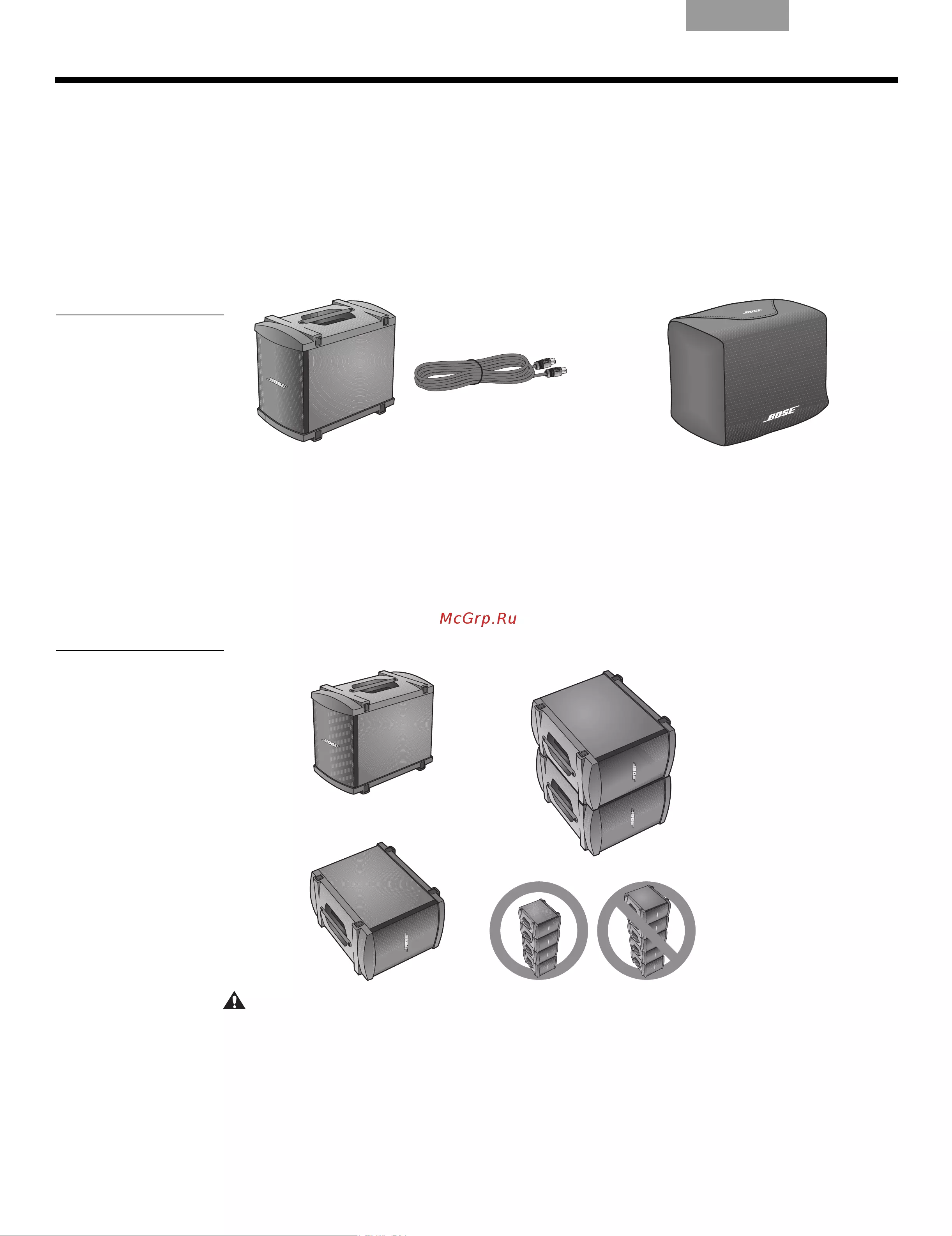

B1 B

ASS MODULE

English Deutsch FrançaisDansk Español Italiano SvenskaNederlands

Connecting one B1 bass module

1. Plug one end of the B1 bass module cable into one of the B1 connectors (Figure 3).

Rotate the plug clockwise to lock it in place. Listen for a soft click to ensure the

connector

is locked.

2. Plug the other end of the cable into the Bass Module Out connector on the power

stand. Rotate the plug clockwise to lock it.

Note: To disconnect a B1 cable, slide back the metal tab on the body of the plug, rotate the plug

counterclockwise and pull it out of the connector.

Figure 3

Bass module connections

To power stand Bass Module Out

or PackLite

amplifier OUTPUT

CAUTIONS:

• DO NOT connect a B1 bass module to two power stands at the same time.

• DO NOT connect any bass module other than the B1 to the power stand.

• Use only the supplied blue B1 bass module 4-wire cable to connect the B1 bass module

to the power stand. The power stand uses the signals on two of the wires to automatically

sense how many B1 bass modules are connected. DO NOT substitute the supplied cable

with a 2-wire speaker cable.

Connecting a second B1 bass module

1. Plug one end of the second B1 bass module cable into the unused connector on the first

B1 bass module.

2. Insert the other end of the cable into one of the connectors on the second B1 module.

Figure 4

Connections for two bass

modules

To power stand Bass Module Out

or PackLite

amplifier OUTPUT

Technical Information

Dimensions: 15''H x 10¼''W x 17¾''D (38.0 cm x 26.0 cm x 45.0 cm)

Weight: 25.1 lb (11.4 kg)

Impedance: 8 ohms

This product conforms to the EMC Directive 89/336/EEC and to the Low Voltage

Directive 73/23/EEC. The complete Declaration of Conformity can be found at

www.Bose.com/static/compliance/index.html.
