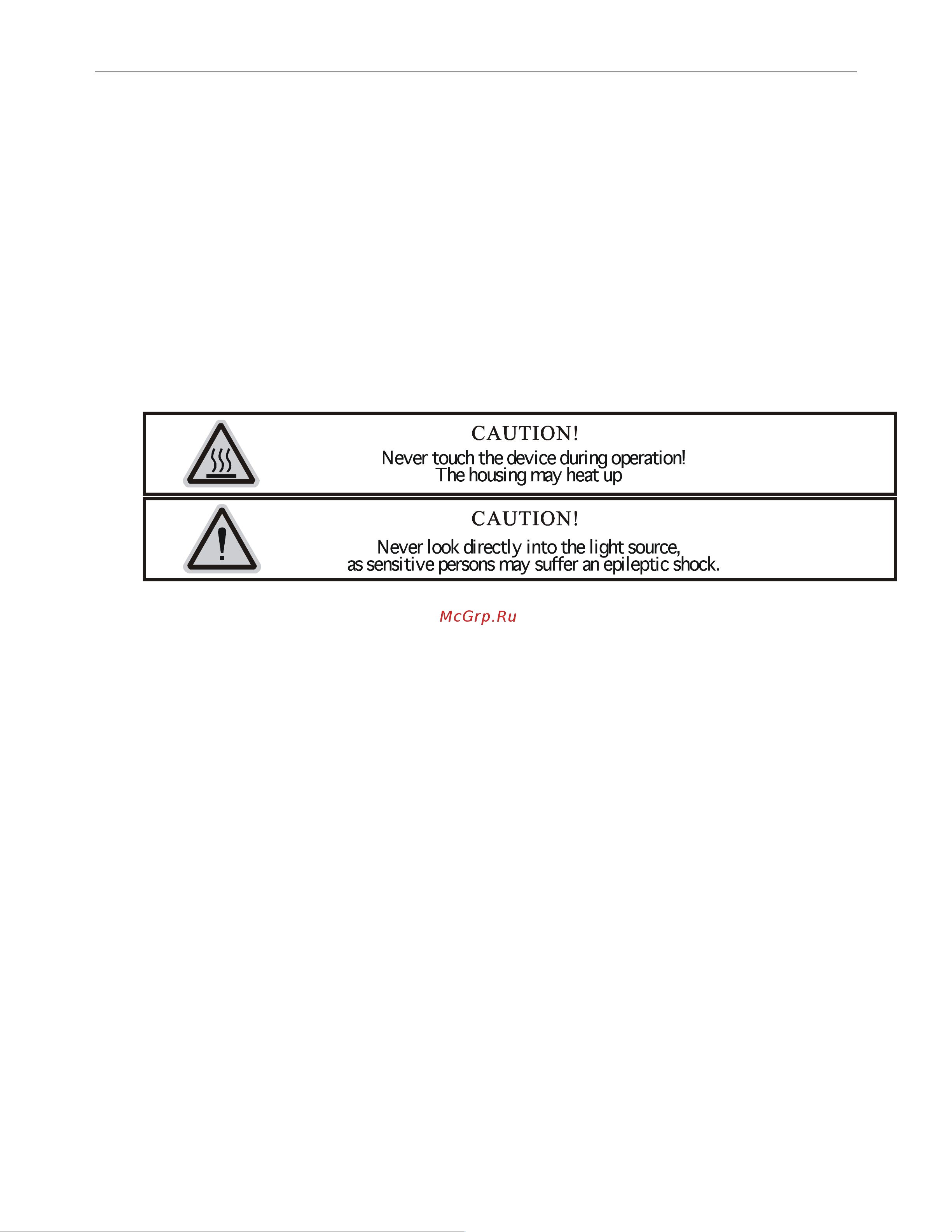

![ELATION Design Wash 575E Руководство по эксплуатации онлайн [7/48] 758806](/views2/1990521/page7/bg7.png)
Design Wash 575E™
©Elation Professional® 7 Design Wash 575E™
may increase the risk of damage and/or personal injury.
10. To reduce the risk of fire or shock, do not expose this fixture to rain or moisture.
11. Do not attempt to operate this fixture if the power cord has become damaged or
frayed.
Important Notice: Damages resulting from the disregard of safety and general user
instructions found in this user manual are not subject to any warranty claims.
