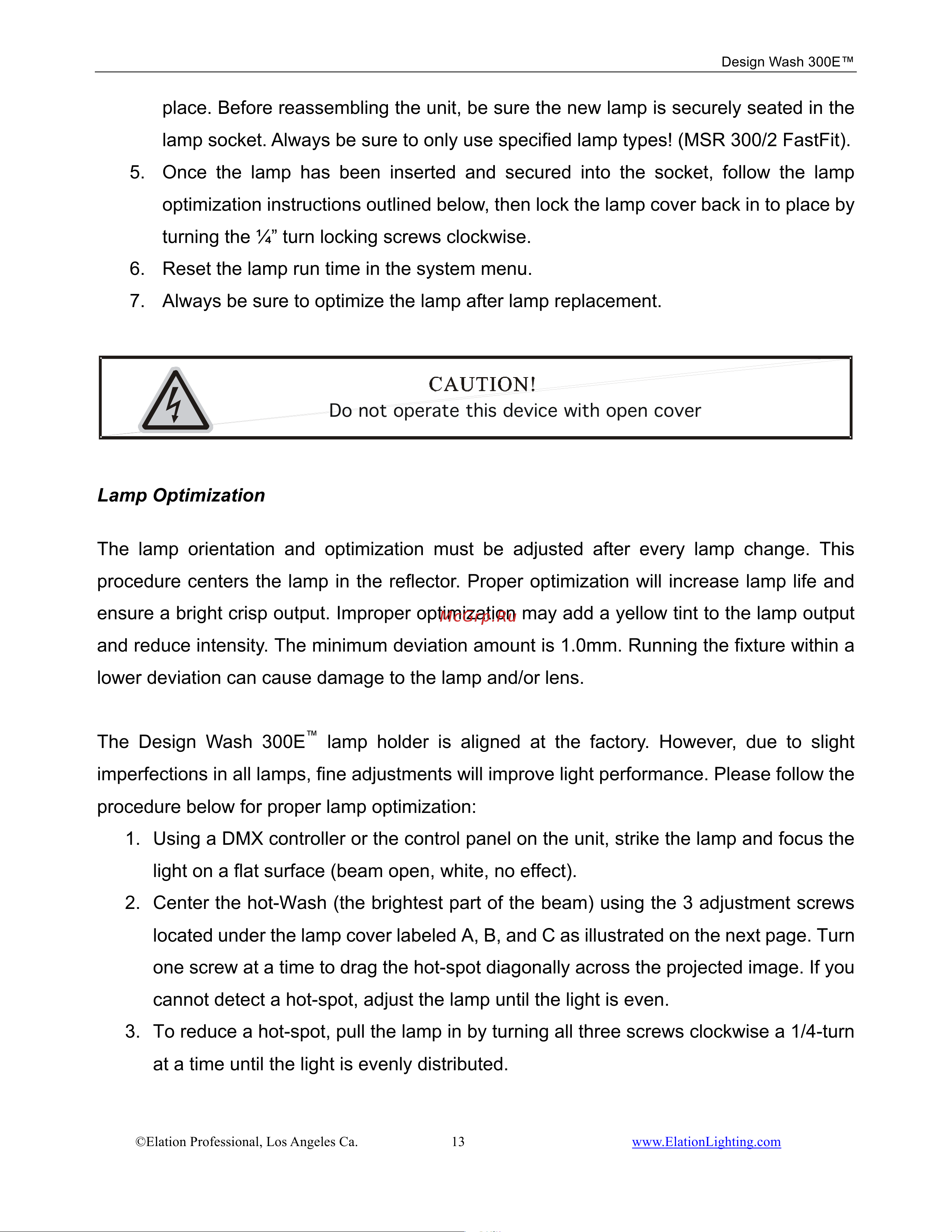

Design Wash 300E™

©Elation Professional, Los Angeles Ca. 13 www.ElationLighting.com

place. Before reassembling the unit, be sure the new lamp is securely seated in the

lamp socket. Always be sure to only use specified lamp types! (MSR 300/2 FastFit).

5. Once the lamp has been inserted and secured into the socket, follow the lamp

optimization instructions outlined below, then lock the lamp cover back in to place by

turning the ¼” turn locking screws clockwise.

6. Reset the lamp run time in the system menu.

7. Always be sure to optimize the lamp after lamp replacement.

Do not operate this device with open cover

Lamp Optimization

The lamp orientation and optimization must be adjusted after every lamp change. This

procedure centers the lamp in the reflector. Proper optimization will increase lamp life and

ensure a bright crisp output. Improper optimization may add a yellow tint to the lamp output

and reduce intensity. The minimum deviation amount is 1.0mm. Running the fixture within a

lower deviation can cause damage to the lamp and/or lens.

The Design Wash 300E

™

lamp holder is aligned at the factory. However, due to slight

imperfections in all lamps, fine adjustments will improve light performance. Please follow the

procedure below for proper lamp optimization:

1. Using a DMX controller or the control panel on the unit, strike the lamp and focus the

light on a flat surface (beam open, white, no effect).

2. Center the hot-Wash (the brightest part of the beam) using the 3 adjustment screws

located under the lamp cover labeled A, B, and C as illustrated on the next page. Turn

one screw at a time to drag the hot-spot diagonally across the projected image. If you

cannot detect a hot-spot, adjust the lamp until the light is even.

3. To reduce a hot-spot, pull the lamp in by turning all three screws clockwise a 1/4-turn

at a time until the light is evenly distributed.
