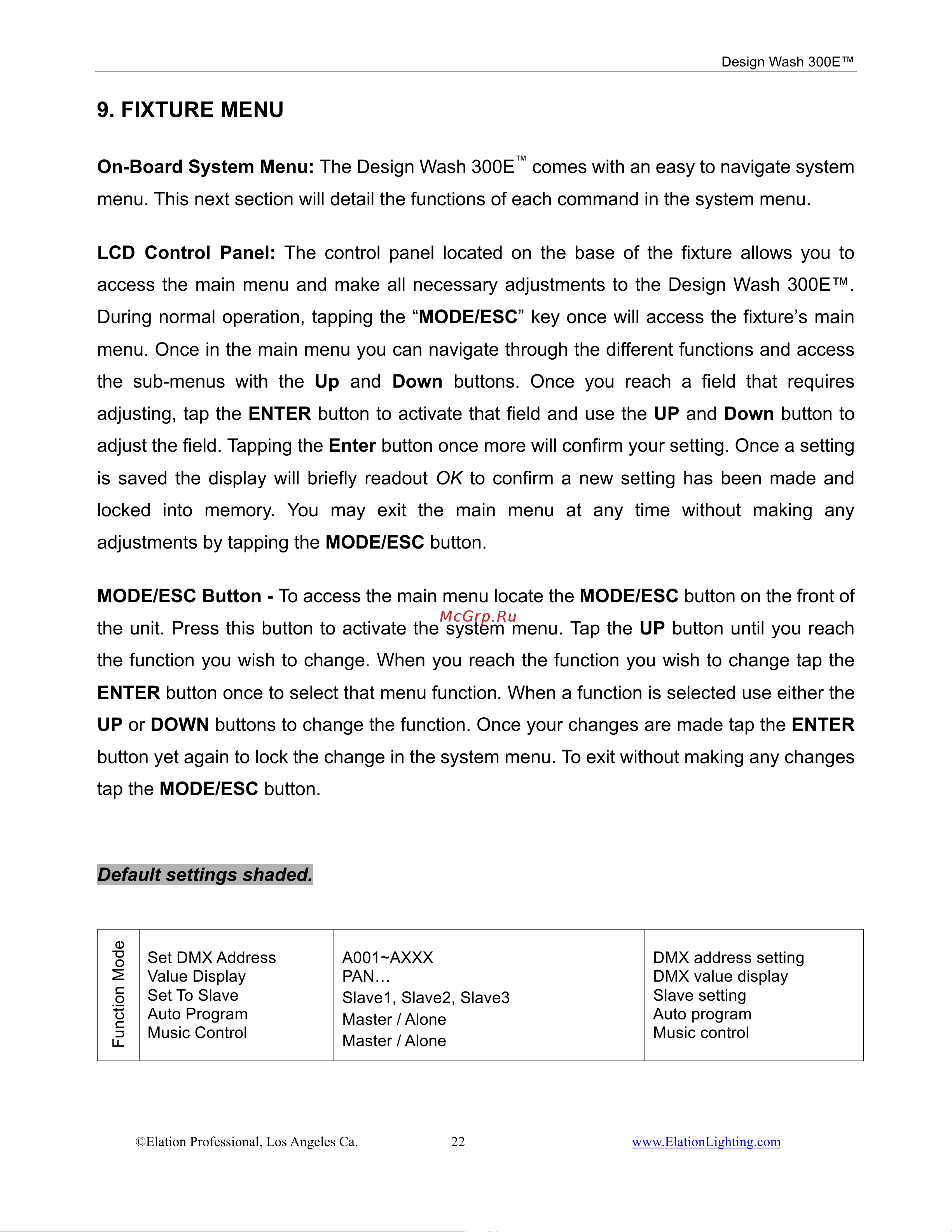

9. FIXTURE MENU

On-Board System Menu: The Design Wash 300E

™

comes with an easy to navigate system

menu. This next section will detail the functions of each command in the system menu.

LCD Control Panel: The control panel located on the base of the fixture allows you to

access the main menu and make all necessary adjustments to the Design Wash 300E™.

During normal operation, tapping the “MODE/ESC” key once will access the fixture’s main

menu. Once in the main menu you can navigate through the different functions and access

the sub-menus with the Up and Down buttons. Once you reach a field that requires

adjusting, tap the ENTER button to activate that field and use the UP and Down button to

adjust the field. Tapping the Enter button once more will confirm your setting. Once a setting

is saved the display will briefly readout OK to confirm a new setting has been made and

locked into memory. You may exit the main menu at any time without making any

adjustments by tapping the MODE/ESC button.

MODE/ESC Button - To access the main menu locate the MODE/ESC button on the front of

the unit. Press this button to activate the system menu. Tap the UP button until you reach

the function you wish to change. When you reach the function you wish to change tap the

ENTER button once to select that menu function. When a function is selected use either the

UP or DOWN buttons to change the function. Once your changes are made tap the ENTER

button yet again to lock the change in the system menu. To exit without making any changes

tap the MODE/ESC button.

Default settings shaded.

Function Mode

Set DMX Address

Value Display

Set To Slave

Auto Program

Music Control

A001~AXXX

PAN…

Slave1, Slave2, Slave3

Master / Alone

DMX address setting

DMX value display

Slave setting

Auto program

Music control
